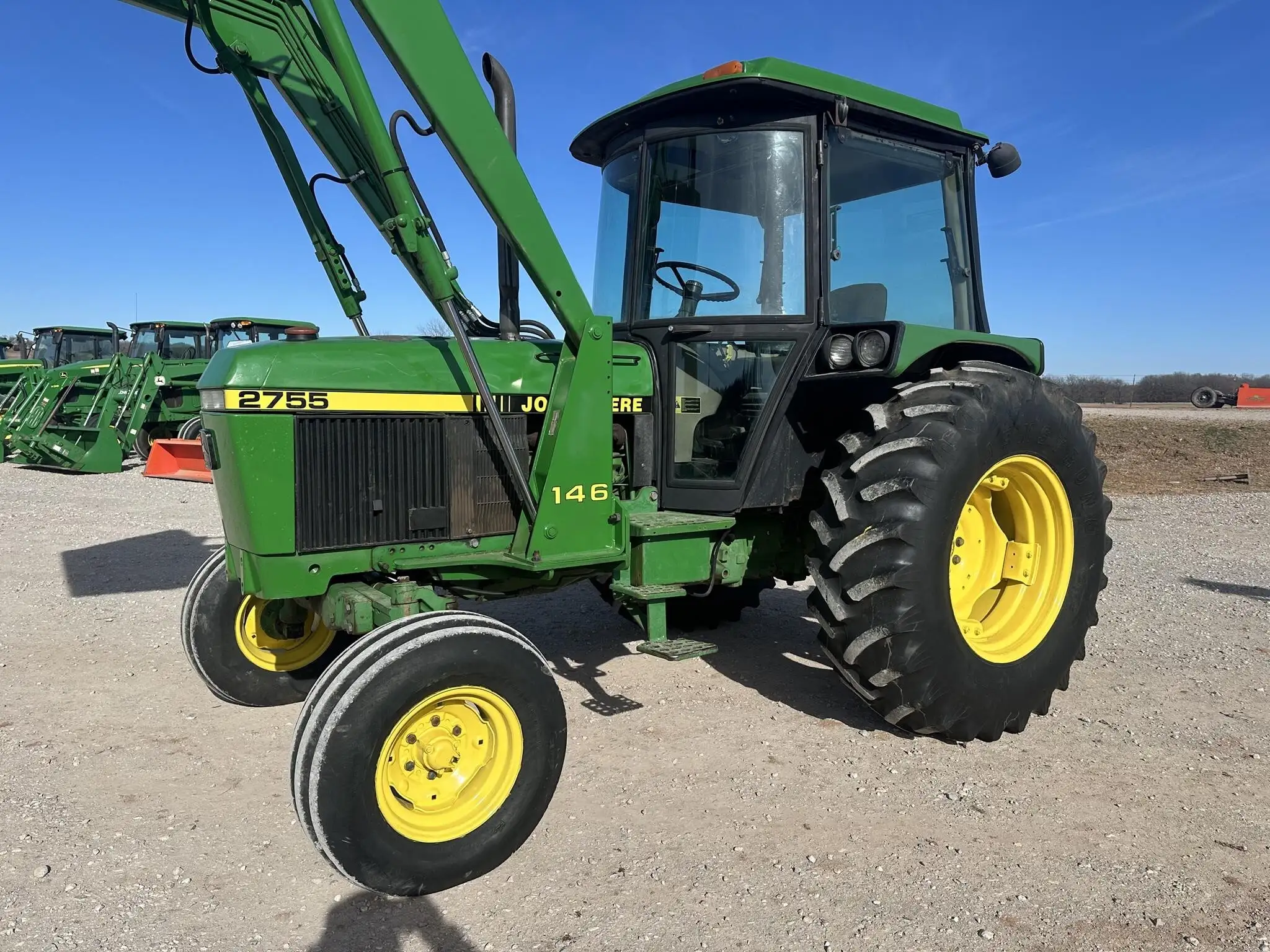

John Deere 2755 High Clearance
John Deere 2755 High Clearance — 55 Utility Series. Reference specifications; pending source verification.
The John Deere 2755 High Clearance is a tractor model produced from 1987 to 1992. It features a 4-cylinder turbocharged diesel liquid-cooled engine and is equipped with four-wheel drive and a 12-speed gearbox. The tractor is suitable for a range of operations. Specifications for the John Deere 2755 High Clearance in the UK and US are detailed in the accompanying table.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Transmissions
12-speed partially synchronized
Production years
1987-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Four-wheel driveReference
SteeringpowerReference
Two-post ROPS. Canopy optional.Reference
Variants
2755utilityReference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank84.0 LReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Compression17.8:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Coolant capacity13.0 LReference
Transmission
12-speed partially synchronizedReference
TransmissionJohn Deere TSS CreeperReference
Typepartially synchronizedReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Pump flow45.4 lpmReference
Rear Type2/1Reference
Rear lift1687 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/100Reference
Dimensions
Wheelbase228 cmReference
Front tire13.6-38Reference
Rear tire13.6-46Reference
Standard tires (ag)Front: 13.6-38. Rear: 13.6-46Reference
Clearance (front axle)70 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging volts55Reference
Batteries2Reference
Battery CCA400Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
