Tractor · 1987Unverified

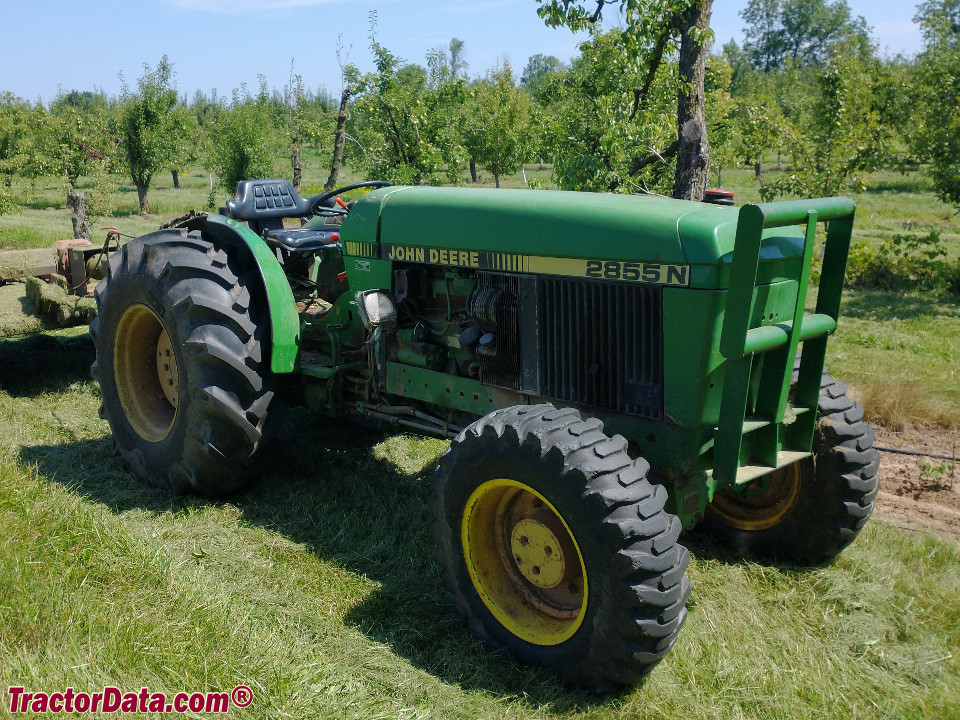

John Deere 2855N
John Deere 2855N — 55 Utility Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
2553 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Original price was $31,000 in 1992Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Open operator station.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank84.0 LReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Compression17.8:1Reference
Oil capacity10.0 LReference
Coolant capacity13.0 LReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
12-speedReference
TransmissionJohn Deere Top Shaft SynchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
TransmissionJohn Deere TSS Hi-LoReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
TransmissionJohn Deere TSS CreeperReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Typeclosed centerReference
Pressure160.0 barReference
Valves1Reference
Pump flow79.5 lpmReference
Rear TypeII/IReference
Rear lift1406 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase213 cmReference
Weight2553 kgReference
Front tire6.5x16Reference
Rear tire14.9x24Reference
Standard tires (ag)Front: 6.5x16. Rear: 14.9x24Reference
Width165 cmReference
Height149 cmReference
2855N Serial Numbers
1987600000Reference
1988624800Reference
1989652661Reference
1990685906Reference
1991718996Reference
1992747593Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery CCA400Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
