Tractor · 1982Unverified

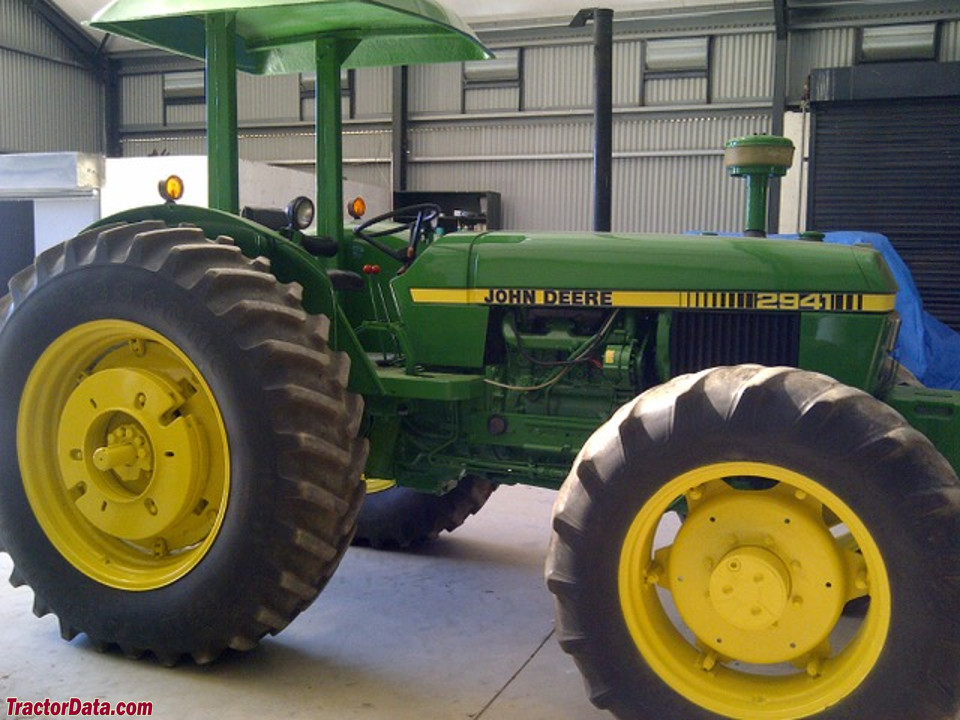

John Deere 2941
John Deere 2941 — 41 Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4279 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Nigel, South AfricaReference
Two- or four-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
ADE 3.9L 4-cyl dieselReference
Engine71.0 kWReference
ADEReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power71.0 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Weight4279 kgReference
Operating weight4279 kgReference
Ballasted weight4830 kgReference
2941 Serial Numbers
Location:Serial number plate on the right side of the 2941 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
