Tractor · 1983Unverified

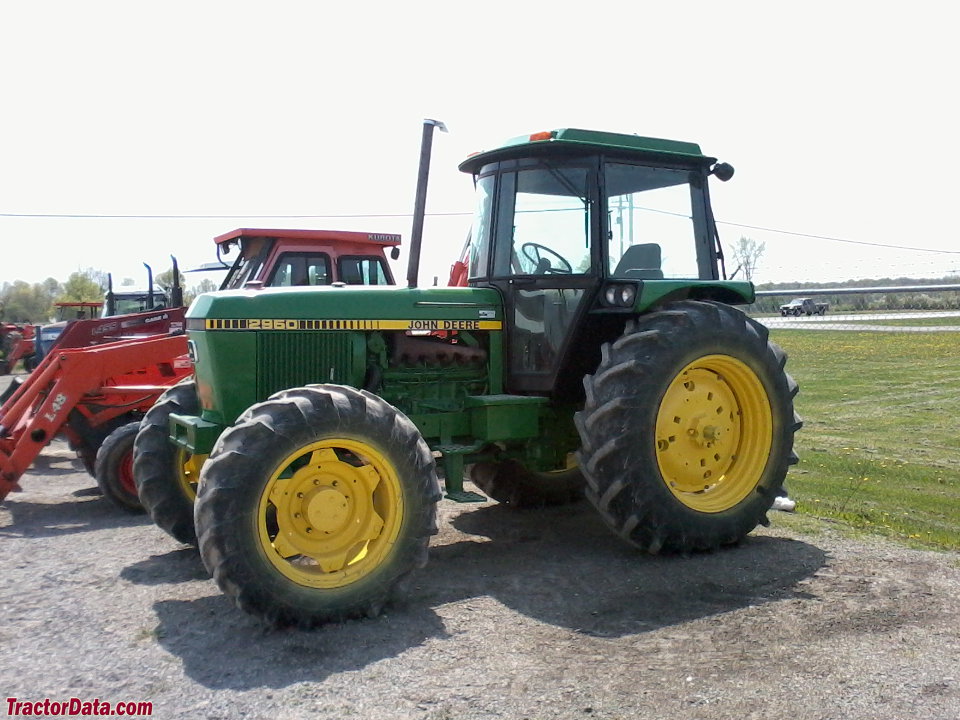

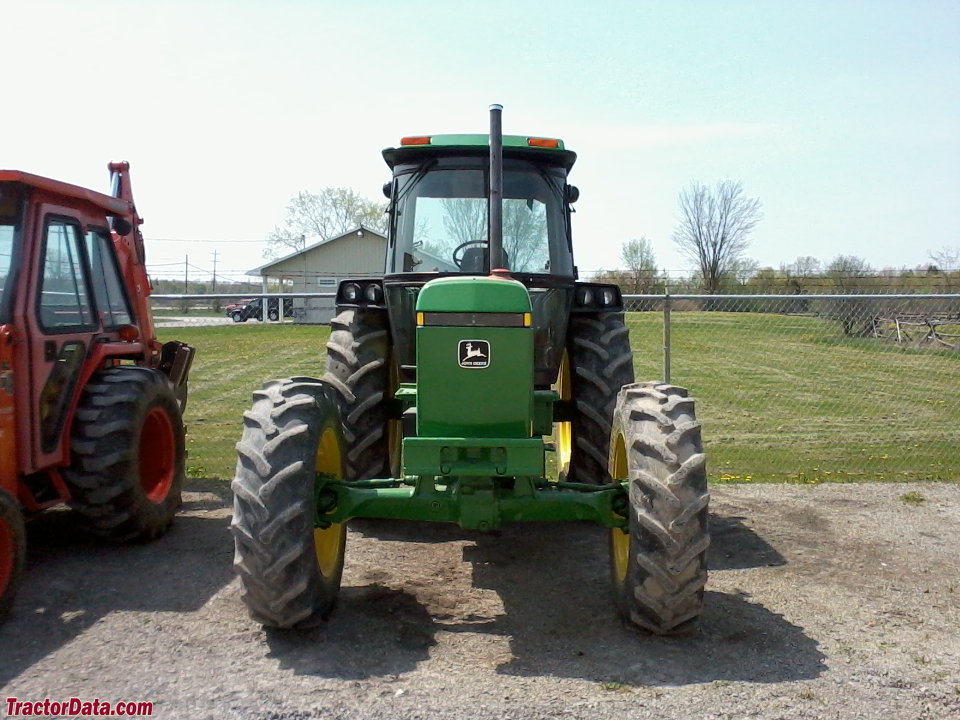

John Deere 2950
John Deere 2950 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Max power
53.8 kW
Weight
4581 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$28,706 (1983 ROPS 2WD )Reference
Original price$40,456 (1983 Cab 4WD )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Fuel tank122.3 LReference
Drawbar (tested)53.8 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Air cleanertwo paper elementsReference
Compression17.4:1Reference
Rated RPM2500Reference
Starter volts12Reference
Coolant capacity18.9 LReference
Power at rated engine speed63.7 kWReference
Max power53.8 kWReference
Transmission
16-speed partial power shiftReference
12-speed partially synchronizedReference
TransmissionJohn Deere Hi-Lo TSSReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges, plus reverse range with left-hand high-low power shift. Synchronized shifting between gears in a given range.Reference
TransmissionJohn Deere TSS CreeperReference
Typepartially synchronizedReference
Gears12 forward and 8 reverseReference
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)63.7 kWReference
Typeclosed centerReference
Rear valves2Reference
Pump flow87.1 lpmReference
Rear TypeIIReference
Controlload and depth controlReference
Rear lift2208 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed63.8 kWReference
Dimensions
2WD Wheelbase255 cmReference
4WD Wheelbase258 cmReference
Weight4581 kgReference
Front tire10.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-24.8. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 12.4-28. Rear: 16.9-38Reference
4WD Optional tires (ag)Front: 13.6-28. Rear: 18.4-38Reference
Length389 cmReference
Height (steering wheel)185 cmReference
Height (cab)275 cmReference
Operating weight4581 kgReference
Ballasted weight5010 kgReference
2WD Clearance (front axle)65 cmReference
4WD Clearance (front axle)48 cmReference
Rack-and-pinion rear axleReference
John Deere 2950 attachments
front-end loaderReference
2950 Serial Numbers
Location:Right side of main tractor frame, above front axle.Reference
1983433508Reference
1984505001Reference
1985532000Reference
1986562001Reference
1987587950Reference
1988592001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps33Reference
Cab Charging amps55Reference
Battery volts12Reference
Attachment overview
John Deere 148 loaderReference
John Deere 260 loaderReference
John Deere 265 loaderReference
Test results
Diesel 16-speed 2WDApril 18 - May 2, 1983Link: Nebraska Tractor Test 1473 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use19.7 l/hourReference
Drawbar performanceReference
Fuel use20.1 l/hourReference
Gear 5-Low used for power test.Reference
Max pull3977 kgReference
Gear 3-Low used for pull test.Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
