Tractor · 1987Unverified

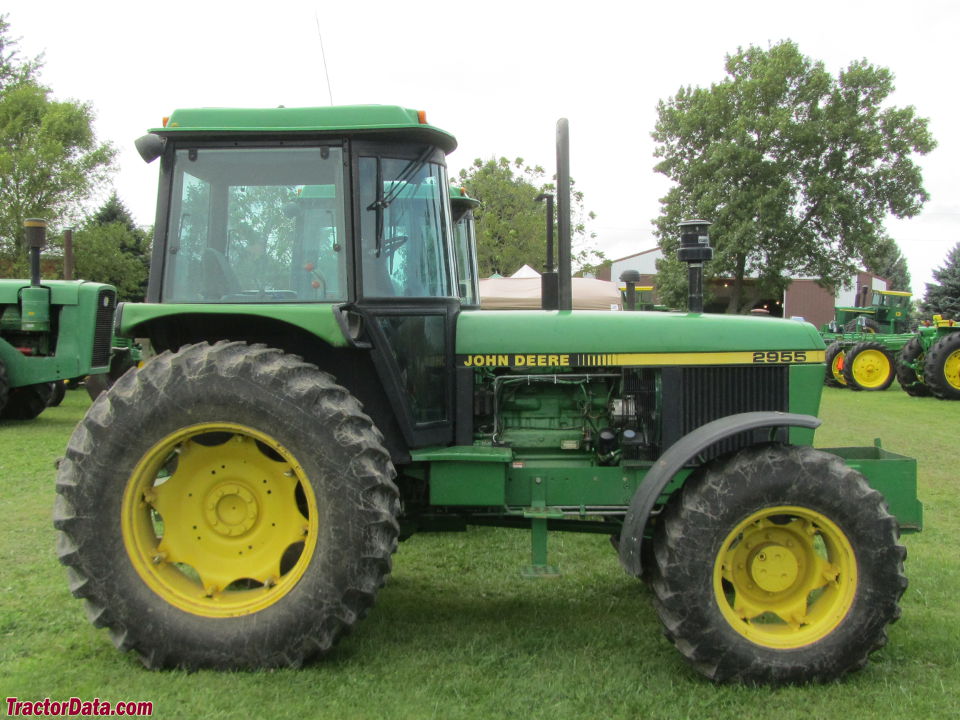

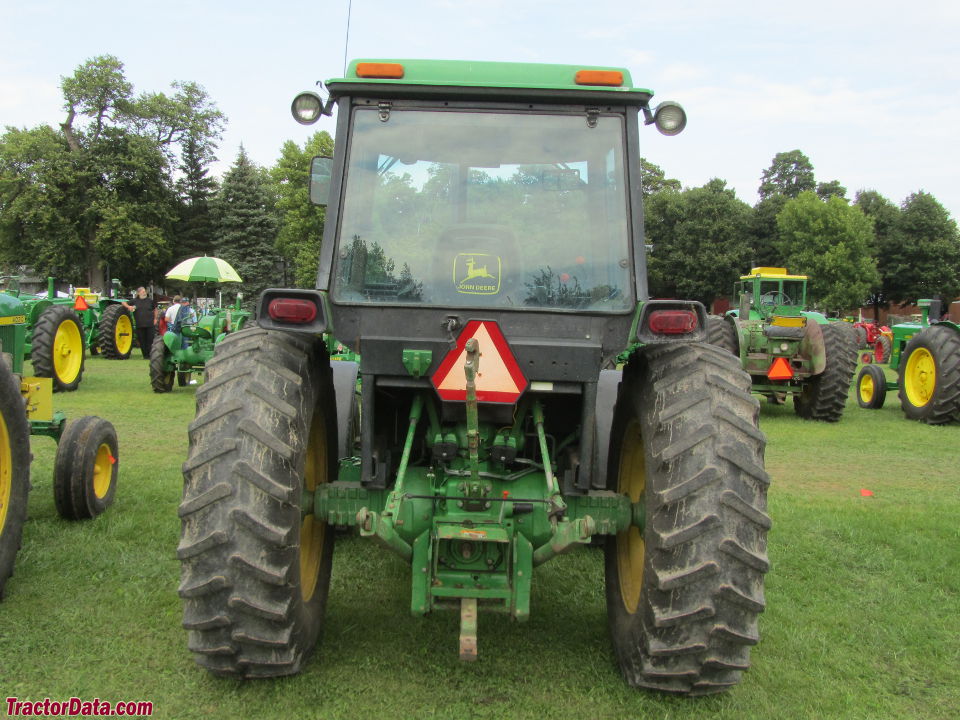

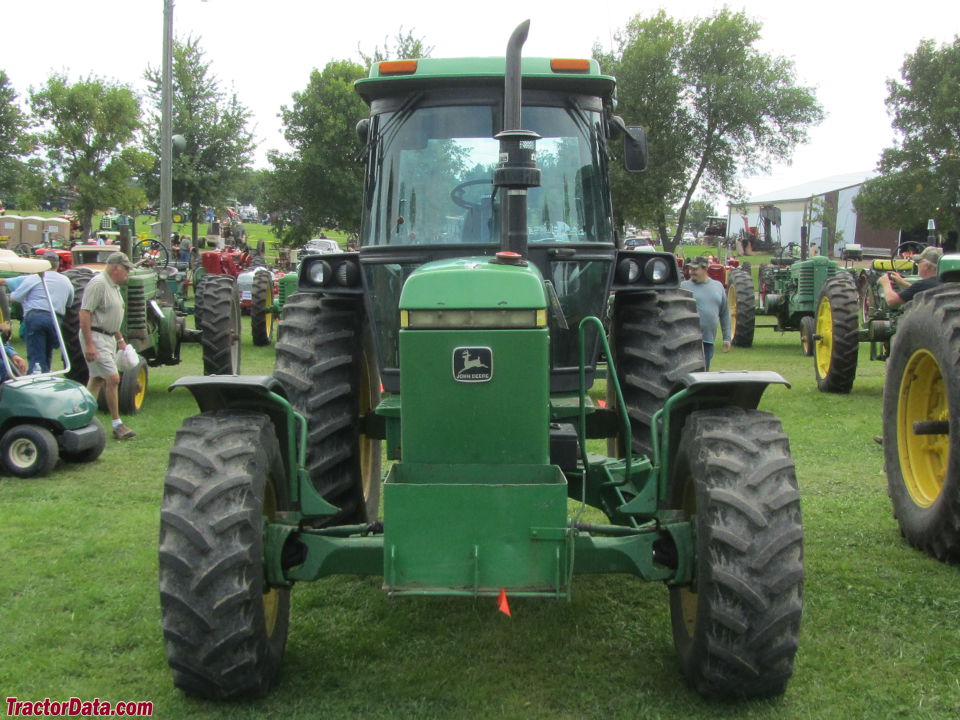

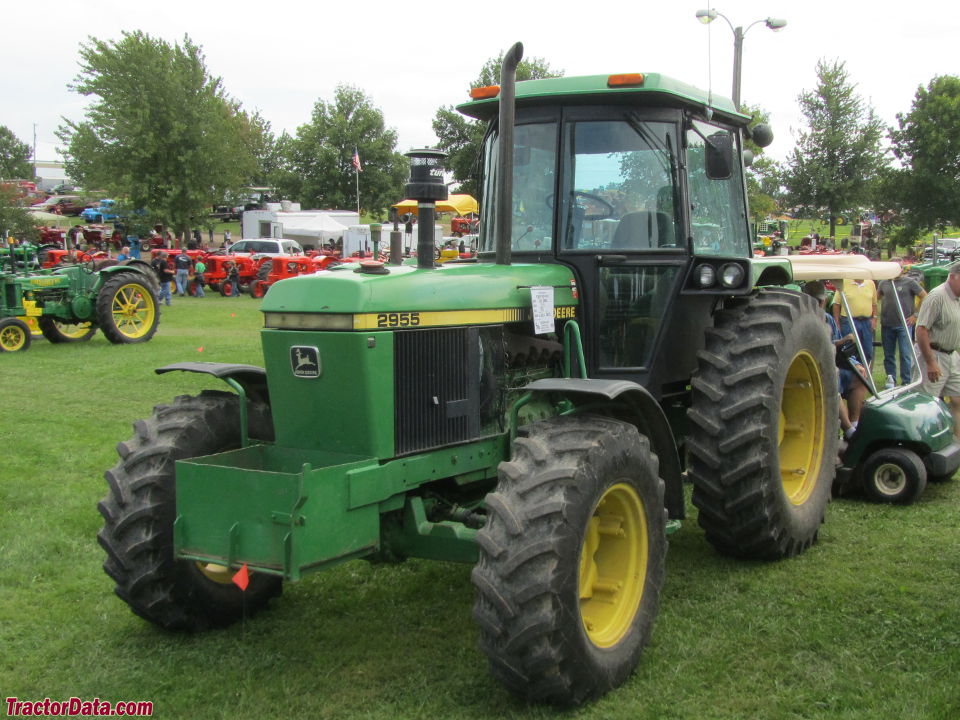

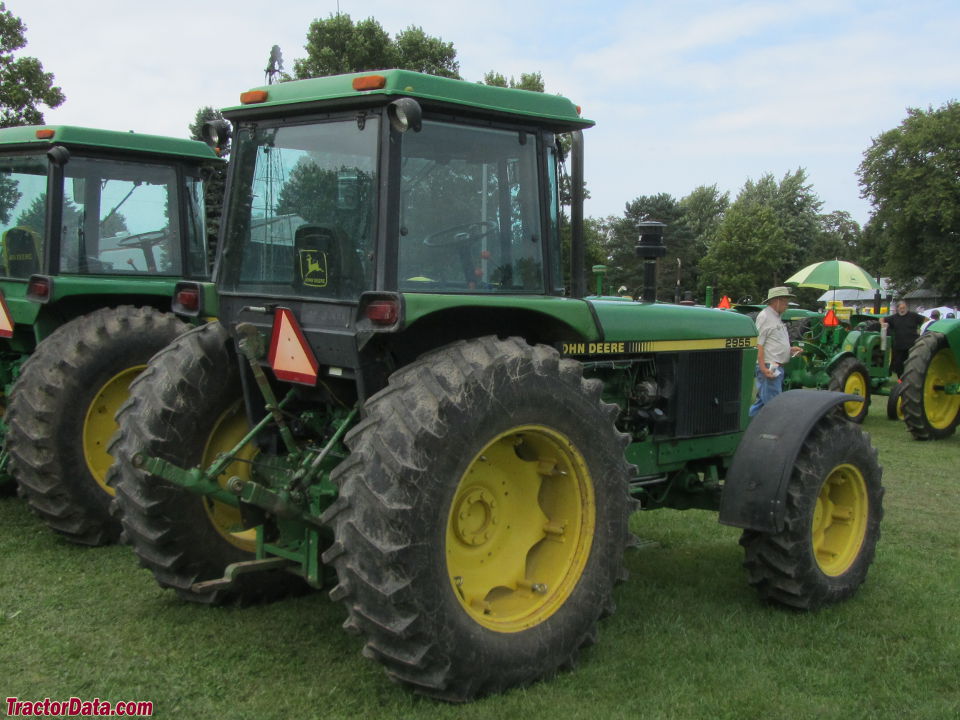

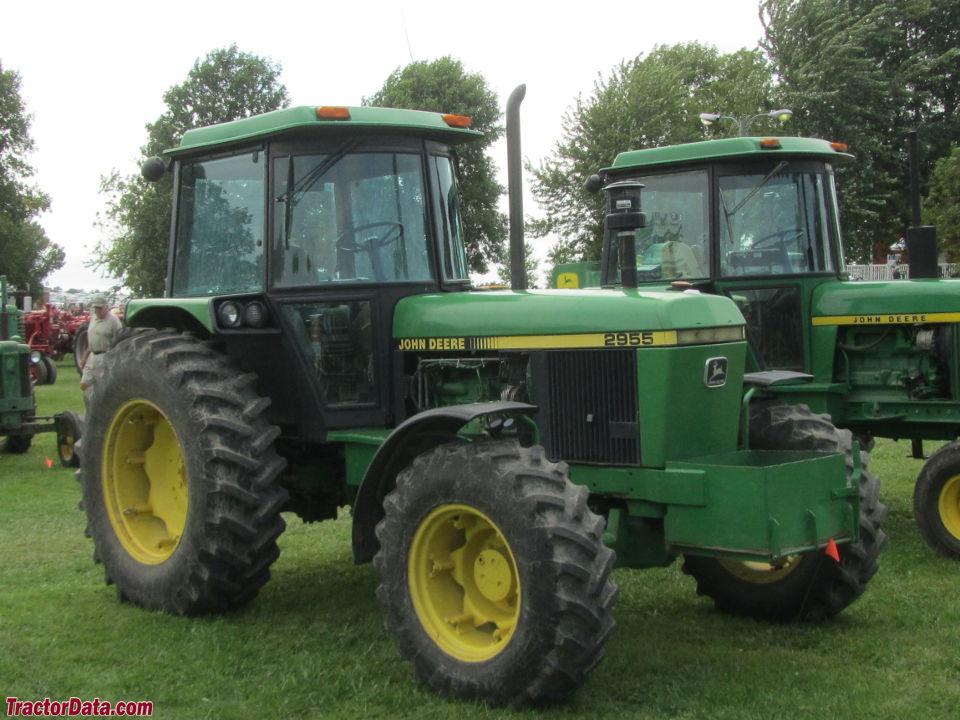

John Deere 2955

Name: John Deere 2955
Brand: John Deere

John Deere 2955 — 55 Utility Series · 86 hp. Reference specifications; pending source verification.

The John Deere 2955 is a tractor model rated at roughly 86 hp, a mid-range figure for its class. The 2955 ran in production from 1987 to 1992. Under the hood is a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive with a powershift transmission. It has a listed operating weight of 8186 to 10845 pounds, and it suits operations of up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Max power

54.4 kW

Weight

8186 to 10845 pounds

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

86 hp

Transmissions

8-speed partially synchronized

Production years

1987-1992

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Original price was $39,000 in 1992Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Roll-Gard ROPS. Optional Sound-Gard cab.Reference

Variants

High-crophigh-clearanceReference

Engine

John Deere 5.9L 6-cyl dieselReference

Engine72.3 kWReference

Drawbar (claimed)55.3 kWReference

Drawbar (tested)54.4 kWReference

John DeereReference

dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement5.9 LReference

Bore/Stroke106 x 110 mmReference

Power72.3 kWReference

Air cleanertwo paper elementsReference

Compression17.8:1Reference

Rated RPM2300Reference

Starter volts12Reference

Oil capacity11.5 LReference

Coolant capacity17.0 LReference

Power at rated engine speed64.3 kWReference

Max power54.4 kWReference

Transmission

8-speed partially synchronizedReference

16-speed partial power shiftReference

12-speedReference

TransmissionJohn Deere Top-Shaft Synchronized (TSS)Reference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Clutchdry discReference

Four gears (1-4) with two ranges (I-II) and reverse range.Reference

TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized (TSS)Reference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Clutchhydraulic dry discReference

Adds a hydraulic high-low power shift to the basic TSS transmission.Reference

TransmissionJohn Deere Top-Shaft Synchronized CreeperReference

Gears12 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

PTO (tested)64.3 kWReference

Hydraulic system45.0 LReference

Typeclosed centerReference

Capacity45.0 LReference

Valves1 to 3Reference

Total flow79.5 lpmReference

Steering press.160.0 barReference

Rear TypeIIReference

Rear lift2374 kgReference

Front HitchIIReference

Front lift1529 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Power at rated PTO speed63.8 kWReference

Capacities

Fuel121.1 LReference

Dimensions

Wheelbase259 cmReference

Weight8186 to 10845 poundsReference

Rear tire18.4-38Reference

Ag rear18.4-38Reference

Ag rear15.5-38Reference

Ag rear12.4-42Reference

Ag rear16.9-38Reference

Shipping3713 kgReference

Shipping3995 kgReference

Shipping3944 kgReference

Shipping4225 kgReference

Operating4919 kgReference

Ballasted5057 kgReference

John Deere 2955 attachments

front-end loaderReference

2955 Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

2955 Serial Numbers

1987600000Reference

1988624800Reference

1989652968Reference

1990685843Reference

1991718292Reference

1992742062Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55Reference

Cab Charging amps85Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Questions

I'm looking at two different 148 loaders. One comes off a 4440, one comes off a 3020. I have a 2955. What kind of issues am I looking at with the mounts. Do either of these tractors have the same size as my 2955? The 3020 and 4440 used the same mounts, but the mount would have been trimmed for the 3020. For your 2955 you need the utility tractor mounting brackets: AW20617 and AW20618.Reference

Attachment overview

John Deere 148 loaderReference

John Deere 265 loaderReference

Test results

Diesel 16-speed 4WDNovember 10 - 20, 1986Link: Nebraska Tractor Test 1606 fileReference

PTO performanceReference

Fuel use18.9 l/hourReference

Fuel use18.5 l/hourReference

Drawbar performanceReference

Gear 5H used for power test.Reference

Max pull4522 kgReference

Gear 3L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
