Tractor · 2008Unverified

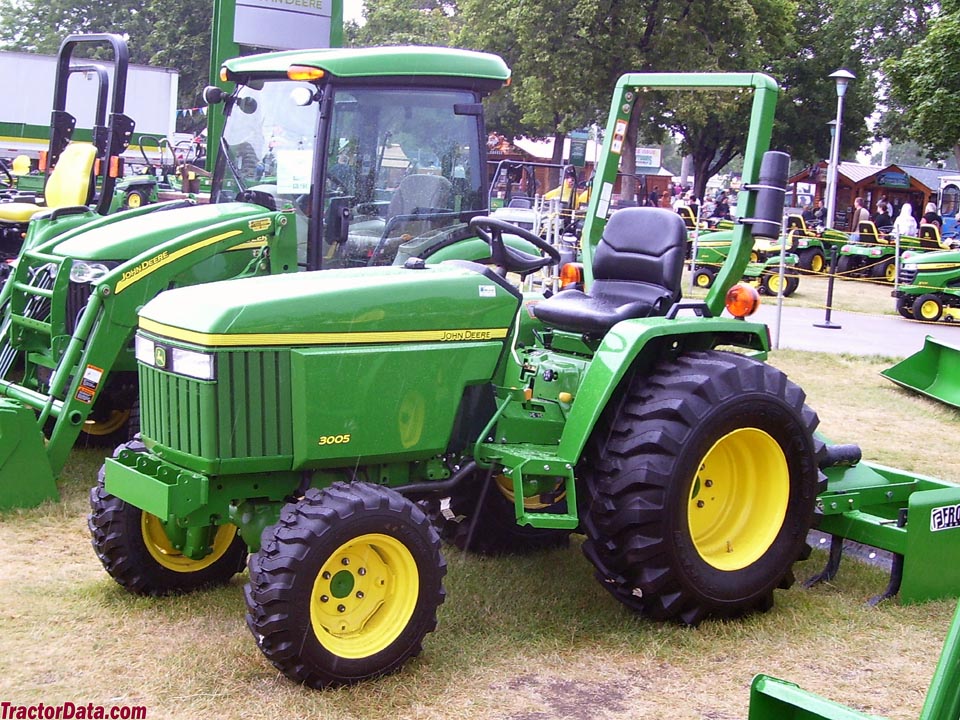

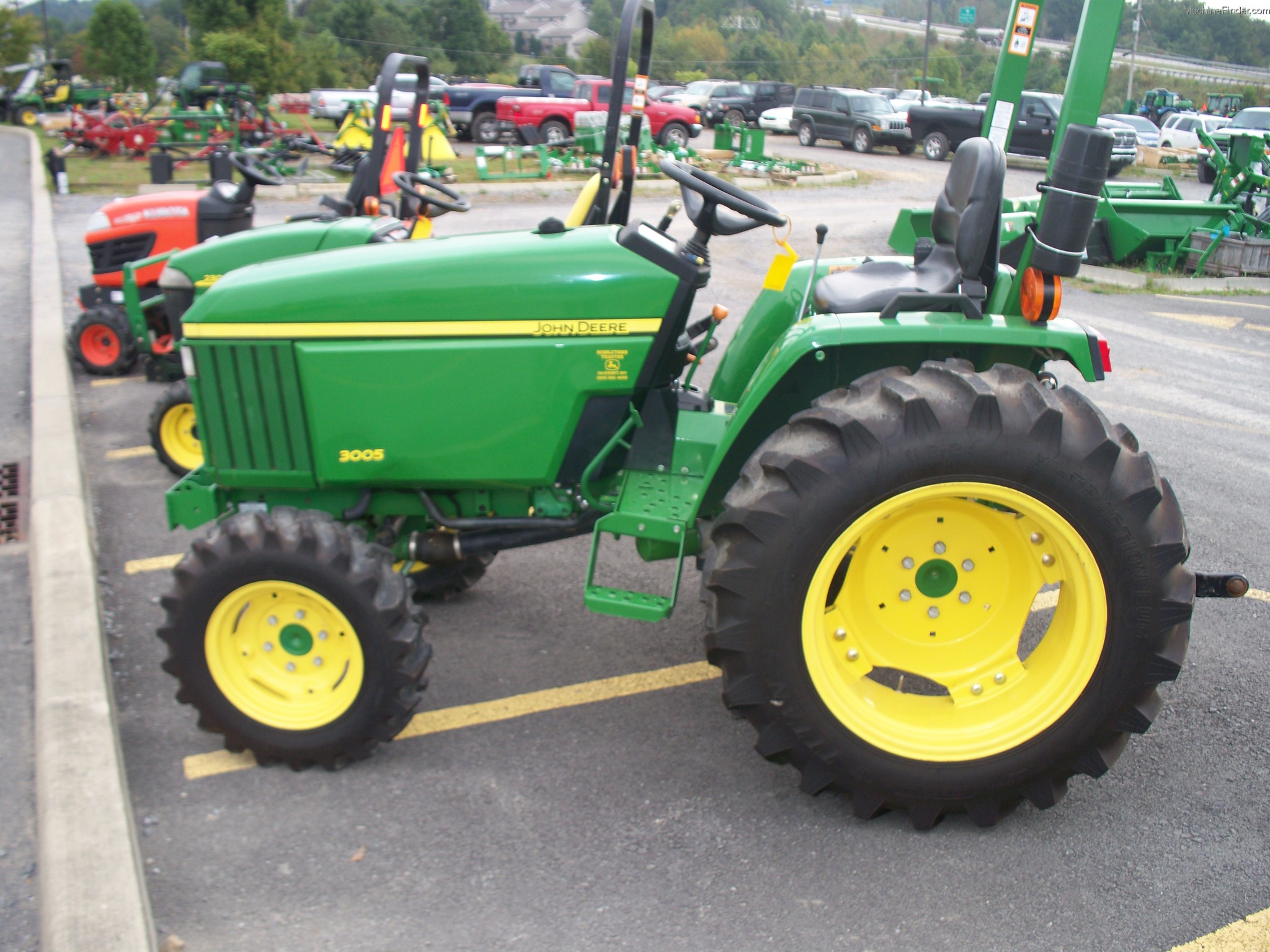

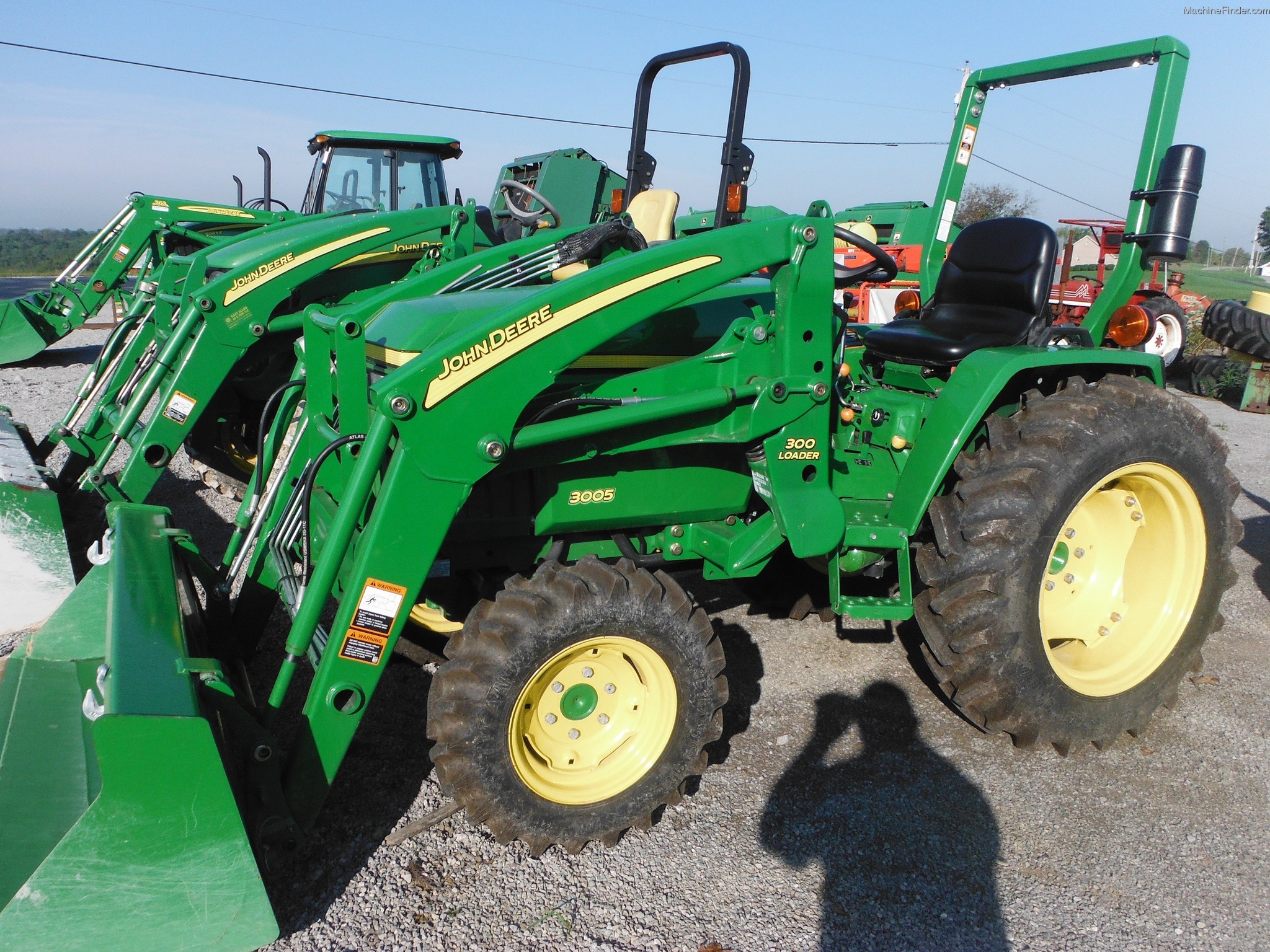

John Deere 3005

Name: John Deere 3005
Brand: John Deere

John Deere 3005 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.

The John Deere 3005 is a tractor model rated at 28 hp — making it one of the more compact options in its class. It was manufactured from 2008 to 2012. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1920 to 2105 pounds, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

28 hp

Max power

27.5 hp

Weight

1920 to 2105 pounds

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

28 hp

Transmissions

8-speed sliding gear

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Two- or four-wheel driveReference

SteeringmanualReference

Steeringhydrostatic powerReference

Dry shoe brakesReference

Two-post ROPSReference

Engine

Yanmar 1.3L 3-cyl dieselReference

Engine (gross)20.5 kWReference

Yanmar 3TNV82AReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke82 x 84 mmReference

Rated Power (gross)20.5 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression18.1:1Reference

Rated RPM2600Reference

Operating RPM1000-2810Reference

Starter volts12Reference

Coolant capacity4.7 LReference

Oil capacity4.1 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.23x3.31 inchesReference

Compression ratio18.1:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed sliding gearReference

Typesliding gearReference

Gears8 forward and 2 reverseReference

Oil capacity15.1 LReference

Transmission TypeGearReference

forward and reverse optionssliding gear - 8F and 2RReference

Wheel Drive2WD |4WDReference

PTO & Hydraulics

PTO (claimed)17.9 kWReference

Hydraulic system15.1 LReference

Typeopen centerReference

Capacity15.1 LReference

Pressure141.3 barReference

Valves2Reference

Pump flow22.0 lpmReference

Total flow39.0 lpmReference

Steering flow17.0 lpmReference

Rear Type1Reference

Rear lift (at 24"/610mm)369 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540Reference

Mid PTOoptionalReference

Mid PTO Type2100Reference

Capacities

Fuel23.8 LReference

Max capacity1481 kgReference

Fuel tank23.8 LReference

Crankcase oil volume4.3 qtsReference

Dimensions

Wheelbase154 cmReference

Weight1920 to 2105 poundsReference

Front tire5.00-15Reference

Rear tire11.2-24 (2WD)Reference

Standard tires (ag)Front: 5.00-15. Rear: 11.2-24 (2WD)Reference

Standard tires (ag)Front: 7.00-14. Rear: 11.2-24 (4WD)Reference

Length223 cmReference

Length281 cmReference

Width137 cmReference

Height (hood)129 cmReference

Height (ROPS)208 cmReference

Flange rear axleReference

2WD Shipping870 kgReference

4WD Shipping954 kgReference

3005 Serial Numbers

Location:On rear of tractor, below the PTO.Reference

2008000100Reference

2009200001Reference

2010300001Reference

2011410001Reference

2012510001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Total cold cranking amps500 CCAReference

General

Make & ModelJohn DeereReference

Rear Axle TypeFlangedReference

Rollover protective structureTwo-post ROPSReference

Country of manufacturerUSAReference

Power

Max Power27.5 hpReference

PTO

PTO Power24 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,100 RPMReference

Steering & brakes

BrakesDry shoe brakesReference

Steering typeManual | Hydrostatic PowerReference

Hydraulics

Pump Rated Output (total)10.3 gpmReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,050 psiReference

Remote Valves2 ValvesReference

Steering & Implements flow4.5 gpm (5.8 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Dimensions & weight

Overall Height129.5 cmReference

Height Over ROPS208.3 cmReference

Overall Length281.9 cmReference

Overall Width137.2 cmReference

Overall weight954.8 kgReference

Wheels & tyres

Rear Wheel Type11.2-24 (2WD)Reference

Front Wheel Type5.00-15. (2WD)Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
