Tractor · 1961Unverified

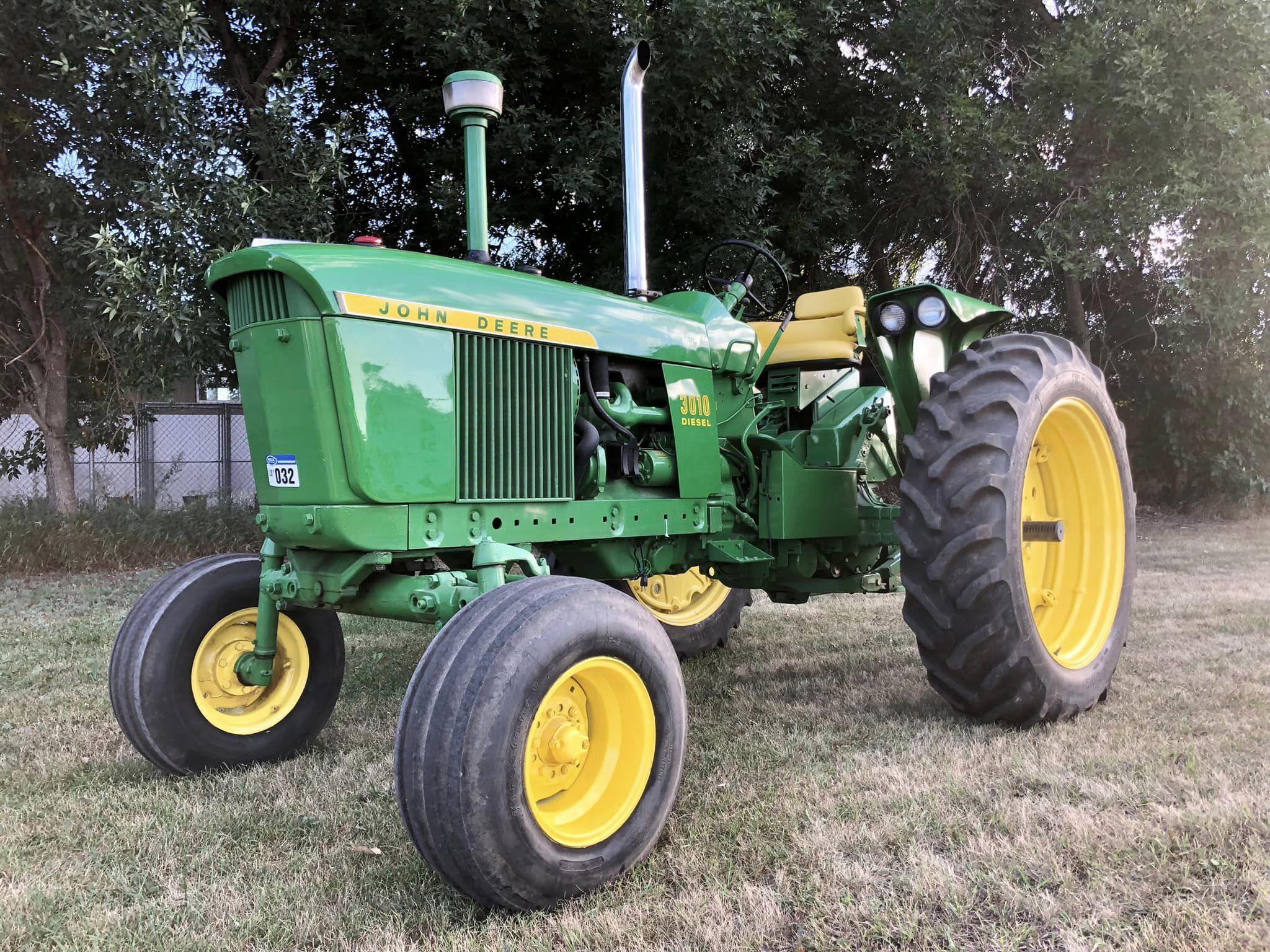

John Deere 3010
John Deere 3010 — New Generation Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Max power
39.4 kW
Weight
5624 to 6500 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
FactoriesWaterloo, Iowa, USAReference
FactoriesMexicoReference
Total built44,000Reference
Original price was $4,700 in 1963Reference
The John Deere 3010 was available in row-crop, row-crop utility, standard, and orchard versions.Reference
Two-wheel driveReference
Power steeringReference
Differntial hydraulic wet disc brakesReference
Open operator stationReference
Variants
3010ag tractorReference
3010OorchardReference
3010 Specialexport modelReference
Dimensions
3010 Wheelindustrial tractorReference
Row-crop Wheelbase228 cmReference
Row-crop utility Wheelbase207 cmReference
Row-crop utility Wheelbase235 cmReference
Standard Wheelbase207 cmReference
Weight5624 to 6500 poundsReference
Front tire9.00-18Reference
Rear tire16.9-24Reference
Ag front9.00-18Reference
Ag front6.00-14Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag rear16.9-24Reference
Ag rear13.6-28Reference
Ag rear13.6-30Reference
Ag rear18.4-30Reference
Ag rear12.4-36Reference
Ag rear13.9-36Reference
Row-crop Length351 cmReference
Row-crop utility Length341 cmReference
Standard Length220 cmReference
Row-crop Width220 cmReference
Row-crop utility Width177 cmReference
Standard Width220 cmReference
Row-crop Front tread22 cmReference
Row-crop Front tread121 to 203 cmReference
Standard Front tread139 cmReference
Standard Front tread132 to 167 cmReference
Row-crop utility Front tread140/154 cmReference
Row-crop utility Front tread127 to 200 cmReference
Row-crop Rear tread144 to 223 cmReference
Row-crop Rear tread157 to 248 cmReference
Standard Rear tread132 to 200 cmReference
Row-crop utility Rear tread152/203 cmReference
Row-crop utility Rear tread127 to 200 cmReference
Row-crop Shipping2639 kgReference
Row-crop utility Shipping2551 kgReference
Standard Shipping2801 kgReference
Operating2948 kgReference
Engine
John Deere 3.3L 4-cyl gasolineReference
John Deere 4.2L 4-cyl dieselReference
John Deere 3.3L 4-cyl LP gasReference
Drawbar (claimed)38.8 kWReference
Plows4Reference
Drawbar (tested)39.4 kWReference
John DeereReference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke102 x 102 mmReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
dieselReference
Displacement4.2 LReference
Bore/Stroke105 x 121 mmReference
Compression16.4:1Reference
Starter volts24Reference
LP gasReference
Compression7:1Reference
Power at rated engine speed44.3 kWReference
Max power39.4 kWReference
Power at rated engine speed41.1 kWReference
Max power38.0 kWReference
Power at rated engine speed41.3 kWReference
Max power36.7 kWReference
Transmission
8-speed partially synchronizedReference
TransmissionJohn Deere Syncro-RangeReference
Typepartially synchronizedReference
Gears8 forward and 3 reverseReference
Clutchdry discReference
Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1, 2, and 3) by using the clutch.Reference
PTO & Hydraulics
Gas PTO (claimed)41.1 kWReference
Diesel PTO (claimed)44.3 kWReference
PTO (tested)44.3 kWReference
Hydraulic system36.0 LReference
Typeclosed centerReference
Capacity36.0 LReference
Pressure155.1 barReference
Valves2Reference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@1900Reference
Mid PTOindependentReference
Mid PTO Type1000 (1.375)Reference
Power at rated PTO speed41.2 kWReference
Power at rated PTO speed37.7 kWReference
Power at rated PTO speed37.9 kWReference
Capacities
Fuel109.8 LReference
John Deere 3010 attachments
front-end loaderReference
3010 Serial Number Location
Serial number plate on the rear of the tractor's transmission case.Reference
3010 Serial Numbers
19611000Reference
196219801Reference
196332400Reference
Final46952Reference
FAQ: How to read a serial number table.Reference
Electrical
Groundpositive (12V)Reference
Groundfloating (24V)Reference
Batteries1 (12V)Reference
Batteries2 (24V)Reference
Battery volts12Reference
Attachment overview
John Deere 45 loaderReference
John Deere 48 loaderReference
Test results
NTTL 762: diesel 8-speed 2WDReference
NTTL 763: gasoline 8-speed 2WDReference
NTTL 764: LP gas 8-speed 2WDReference
Diesel 8-speed 2WDSeptember 19 - 24, 1960Link: Nebraska Tractor Test 762 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2868 kgReference
Gear 6,323 used for pull test.Reference
Gasoline 8-speed 2WDSeptember 24 - 28, 1960Link: Nebraska Tractor Test 763 fileReference
Fuel use19.3 l/hourReference
Fuel use18.2 l/hourReference
Fuel use19.7 l/hourReference
Max pull3020 kgReference
Gear 2 used for pull test.Reference
LP gas 8-speed 2WDSeptember 24 - 29, 1960Link: Nebraska Tractor Test 764 fileReference
Fuel use24.6 l/hourReference
Fuel use22.3 l/hourReference
Max pull2992 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
