Tractor · 1961Unverified

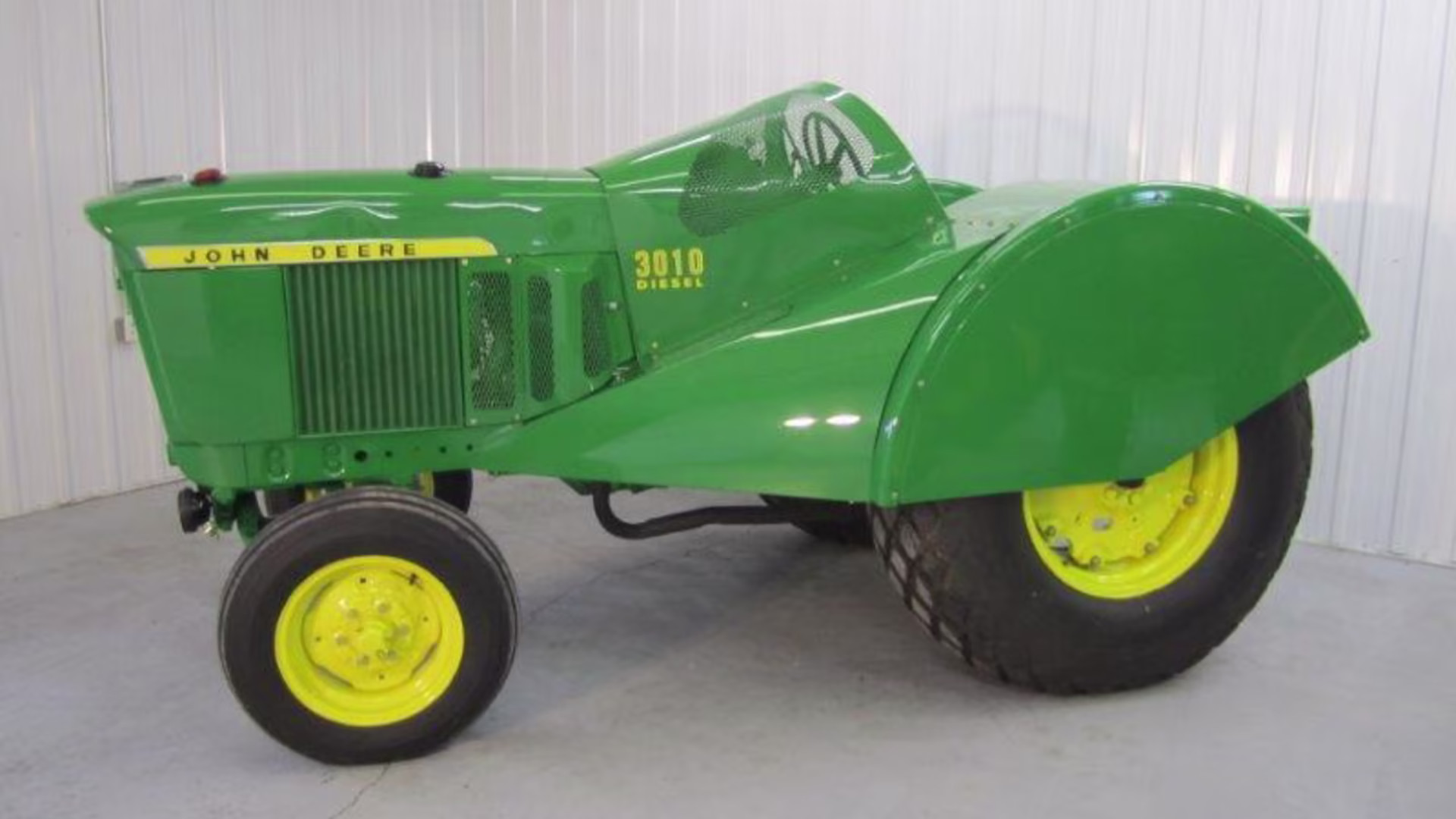

John Deere 3010 Orchard

Name: John Deere 3010 Orchard
Brand: John Deere

John Deere 3010 Orchard — New Generation Series · 55 hp. Reference specifications; pending source verification.

The John Deere 3010 Orchard is a tractor with a rated power of 55 hp, positioned at the lighter end of its class. It was manufactured from 1961 to 1963. Power is provided by a 4-cylinder diesel liquid-cooled engine, coupled with two-wheel drive and an 8-speed gearbox. Its operating weight is listed as 6600 to 6820 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

6600 to 6820 pounds

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

55 hp

Recorded weight

2993 kg

Transmissions

8-speed partially synchronized

Production years

1961-1963

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Built in Waterloo, Iowa, USAReference

Two-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station.Reference

Engine

John Deere 3.3L 4-cyl gasolineReference

John Deere 4.2L 4-cyl dieselReference

Fuel tank109.8 LReference

John DeereReference

gasolineReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.3 LReference

Bore/Stroke102 x 102 mmReference

Compression7.5:1Reference

Rated RPM2200Reference

Idle RPM600-2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity15.1 LReference

dieselReference

Displacement4.2 LReference

Bore/Stroke105 x 121 mmReference

Compression16.4:1Reference

Starter volts24Reference

Transmission

8-speed partially synchronizedReference

TransmissionJohn Deere Syncro-RangeReference

Typepartially synchronizedReference

Gears8 forward and 3 reverseReference

Oil capacity36.0 LReference

PTO & Hydraulics

Gas PTO (claimed)41.1 kWReference

Diesel PTO (claimed)44.3 kWReference

Typeclosed centerReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1900Reference

Engine RPM1000@1900Reference

Mid PTOindependentReference

Mid PTO Type1000 (1.375)Reference

Dimensions

Wheelbase207 cmReference

Weight6600 to 6820 poundsReference

Front tire7.50-16Reference

Rear tire16.9-26Reference

Ag front7.50-16Reference

Ag rear16.9-26Reference

Ag front6.50-16Reference

Ag rear18.4-26Reference

Length351 cmReference

Width205 cmReference

Height177 cmReference

Gas Shipping weight2993 kgReference

Diesel Shipping weight3093 kgReference

Clearance (drawbar)32 cmReference

Front tread137/152 cmReference

Front tread125 to 199 cmReference

Rear tread147 cmReference

Electrical

Groundpositive (12V)Reference

Groundfloating (24V)Reference

Batteries1 (12V)Reference

Batteries2 (24V)Reference

Battery volts12Reference

Speeds

With 16.9-26 rear tiresReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
