Industrial Tractor · 1973Unverified

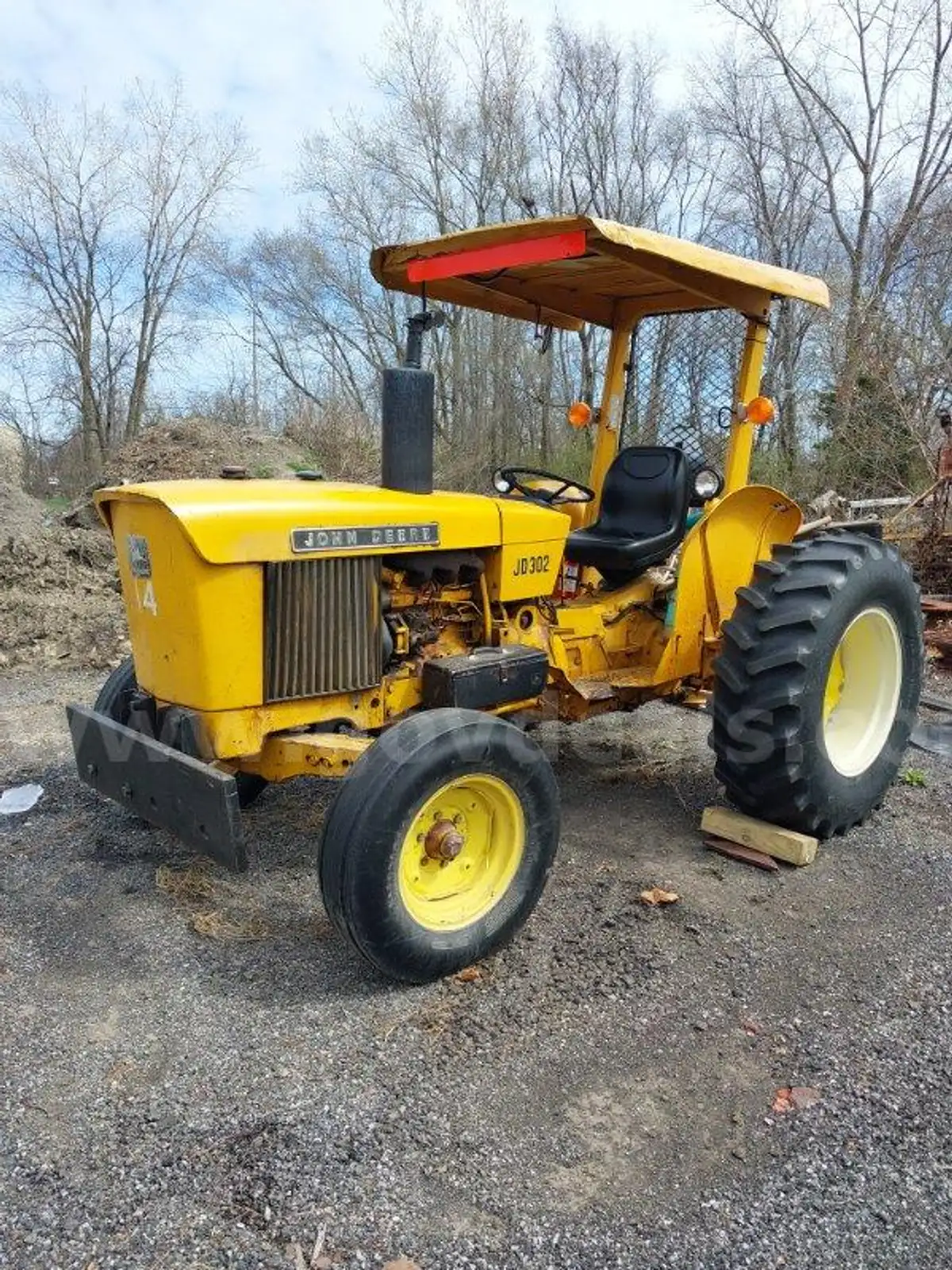

John Deere 302
John Deere 302 — Industrial tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
2093 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Industrial tractorReference
Built in Dubuque, Iowa, USAReference
Two-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station. Two-post ROPS optional.Reference
Engine
John Deere 2.7L 3-cyl dieselReference
John Deere 2.7L 3-cyl gasolineReference
Engine (gross)38.8 kWReference
Engine (net)37.3 kWReference
Engine37.3 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power (net)37.3 kWReference
Power (gross)38.8 kWReference
Compression16.2:1Reference
Rated RPM2500Reference
Torque174.9 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity11.4 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
gasolineReference
Power37.3 kWReference
Exhaust valve clearance0.559 mmReference
Transmission
8-speed gearReference
8-speed hydraulic shuttleReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutch279mm dry discReference
Typehydraulic shuttleReference
Gears8 forward and reverseReference
Clutch254mm hydraulic wet discReference
Capacities
Fuel73.8 LReference
PTO & Hydraulics
Hydraulic system32.2 LReference
Typeclosed centerReference
Capacity32.2 LReference
Pressure158.6 barReference
Total flow49.2 lpmReference
Rear TypeII/IReference
Rear PTOindependent (optional)Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase188 cmReference
Weight2093 kgReference
Front tire6.50-16Reference
Rear tire14.9-24Reference
Lawn/turf front27-9.50-15Reference
Lawn/turf rear18.4-16AReference
Industrial front6.50-16Reference
Industrial rear14.9-24Reference
Industrial front7.50-16Reference
Industrial rear17.5L-24Reference
Length307 cmReference
Width190 cmReference
Operating weight2093 kgReference
Ground clearance27 cmReference
Front tread124 to 187 cmReference
Rear tread121 to 193 cmReference
John Deere 302 attachments
front-end loaderReference
302 Serial Number Location
Serial number plate can be in two different locations on the John Deere 302. It may be on the right side of tractor's frame, above and behind front axle. Or it can be on the right side of the transmission case, just ahead of the rear axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
John Deere 302 Height
Hood139 cmReference
ROPS218 cmReference
Exhaust200 cmReference
Speeds
Reverse speeds are 15% faster than forward.Reference
