Tractor · 2019Unverified

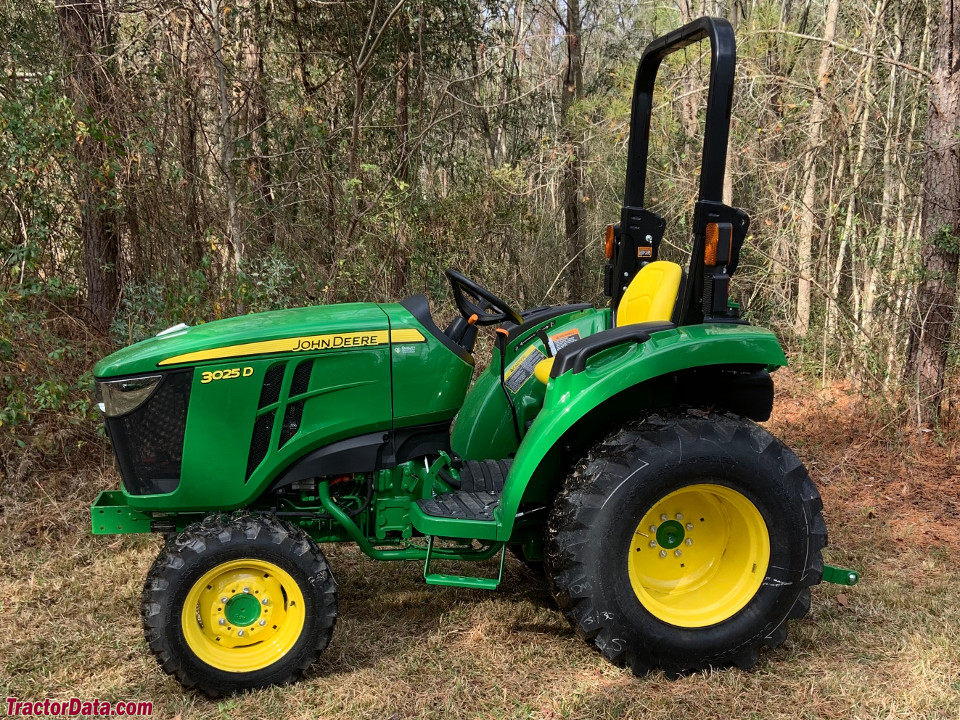

John Deere 3025D

Name: John Deere 3025D
Brand: John Deere

John Deere 3025D — 3D Series · 24 hp. Reference specifications; pending source verification.

The John Deere 3025D is a compact tractor model with a 24 hp rating, produced in 2019. It features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system through an 8-speed gearbox. The tractor's listed weight is 1260 kg. It is suitable for operations on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

24.4 hp (2,400 rpm)

Weight

1260 kg

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

24 hp

Recorded weight

1260 kg

Transmissions

8-speed mechanical shuttle

Production years

2019-2019

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in IndiaReference

Original price was $16,690 in 2019Reference

Four-wheel driveReference

Final drivesspur gearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Fuel tank36.7 LReference

Engine (gross)18.2 kWReference

Yanmar 3TNV88F-EPJPTReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

EmissionsTier 4Reference

Power (gross)18.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Compression19.1:1Reference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Starter power1.4 kWReference

Oil capacity4.5 LReference

Oil change400 hReference

Coolant capacity5.0 LReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed2,400 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed72.4 NmReference

Injection pump typeDirect injectionReference

AspirationNaturalReference

Bore and stroke88 x 90 mmReference

Compression ratio19.1:1Reference

Cooling systemLiquidReference

Transmission

8-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Oil capacity32.9 LReference

Four gears in two ranges with left-hand shuttle. Tractor must be stopped, and clutch used, to shift gear, range, or shuttle.Reference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

Gear Shift LocationRight-hand sideReference

PTO & Hydraulics

PTO (claimed)15.4 kWReference

Typeopen centerReference

Pressure172.4 barReference

Rear valves2Reference

Pump flow19.3 lpmReference

Total flow33.7 lpmReference

Steering flow14.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)757 kgReference

Rear PTOtransmissionReference

Engine RPM540@2400Reference

Dimensions

Wheelbase157 cmReference

Weight1260 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front25x8.5-14Reference

Industrial rear15-19.5Reference

Length282 cmReference

Width145 cmReference

Height (steering wheel)150 cmReference

Clearance (front axle)35 cmReference

Clearance (rear axle)33 cmReference

Front tread105 cmReference

Rear tread109 cmReference

Shipping1260 kgReference

Max front axle879 kgReference

Max rear axle1599 kgReference

John Deere 3025D attachments

front-end loaderReference

3025D Serial Numbers

Location:Serial number plate on the left side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery CCA600Reference

Battery volts12Reference

Battery size600 CCAReference

Alternator size55 ampReference

Capacities

Max capacity2100 kgReference

Front Axle capacity880 kgReference

Rear Axle capacity1,599.8 kgReference

Crankcase oil volume4.5 LReference

Speeds

With 15x19.5 rear tires. Reverse speeds are 5% faster than forward.Reference

General

Make & ModelYanmar® @ 3TNV88F-EPJPTReference

LubricationPressurizedReference

Cruise controlfalseReference

Differential lockYesReference

Rollover protective structureType\\nFoldable\\nASABE S478Reference

PlatformStraddleReference

Power

Max Power24.4 hp (2,400 rpm)Reference

PTO

PTO Power20.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlMechanicalReference

Rear PTO RPM540 rpmReference

Steering & brakes

BrakesWet diskReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)33.6 l/minReference

Hydraulics TypeSingle gearReference

Maximum operating pressure2,495 psiReference

Remote ValvestwoReference

Steering & Implements flow14.4 L/min (19.2 L/min)Reference

Rear Hitch category (SAE designation)3-Point | Category 1Reference

Dimensions & weight

Ground ClearanceMinimum: 331 mmReference

Turning radius1.6 mReference

Overall weight1,260.1 kgReference

Wheels & tyres

Front Wheel TypeR1 Bar: 7-14\\nR3 Turf: 27x8.5-15\\nR4 Industrial: 25x8.5-14Reference

Operator station

Cab AvailabilityfalseReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
