Tractor · 2008Unverified

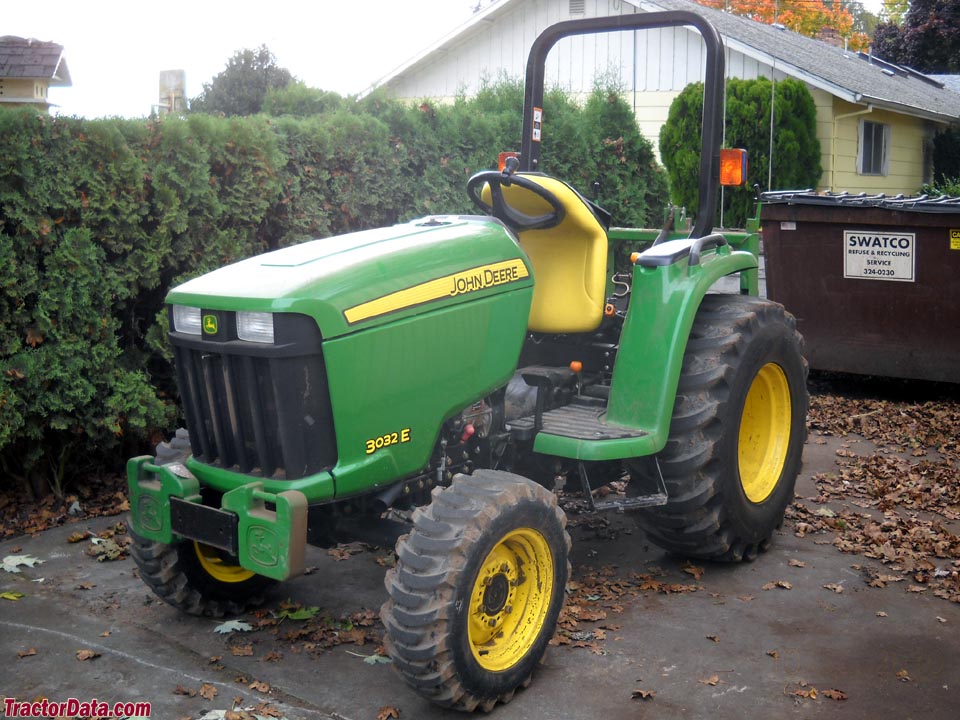

John Deere 3032E

Name: John Deere 3032E
Brand: John Deere

John Deere 3032E — Model year 2008-20122013-2023 · 25 hp. Reference specifications; pending source verification.

The John Deere 3032E is a tractor with a rated power output of 25 hp, categorising it at the lighter end of its class. Manufactured from 2008 to 2023, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the 3032E is listed at 986 kg, and it is suited to operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Max power

31.2 hp

Weight

986 kg

Catalogue coverage

Variants represented

Richest spec table

127 rows

Recorded power

25 hp

Recorded weight

986 kg

Transmissions

hydrostatic

Production years

2008-2023

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$13,619 (2009 )Reference

Original price$18,953 (2016 )Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Engine23.1 kWReference

Yanmar 3TNV86Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke89 x 90 mmReference

Power23.1 kWReference

Air cleanerdry typeReference

Compression19:1Reference

Rated RPM2400Reference

Torque108.5 NmReference

Torque RPM1680Reference

Starter volts12Reference

Starter power1.4 kWReference

Coolant capacity4.2 LReference

Oil capacity4.5 LReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed2,500 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed87 NmReference

Injection pump typeHigh pressure common rail direct injectionReference

AspirationNaturalReference

Bore and stroke88 x 90 mmReference

Compression ratio19.1:1Reference

Cooling systemWater pumpReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity20.8 LReference

Mechanically-controlled two-range hydrostatic transmission. Tractor must be stopped before shifting ranges.Reference

Transmission TypeHSTReference

Wheel Drive4WDReference

ClutchWet diskReference

Gear Shift LocationLeft-hand sideReference

PTO & Hydraulics

PTO (claimed)18.6 kWReference

Hydraulic system20.8 LReference

Typeopen centerReference

Capacity20.8 LReference

Pressure172.4 barReference

Pump flow20.1 lpmReference

Total flow35.2 lpmReference

Steering flow15.1 lpmReference

Steering press.103.4 barReference

Rear TypeIReference

Rear lift (at 24"/610mm)615 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Capacities

Fuel24.2 LReference

Front Axle capacity798.3 kgReference

Rear Axle capacity1,197.5 kgReference

Fuel tank28.5 LReference

Crankcase oil volume4.5 LReference

Dimensions

Wheelbase152 cmReference

Weight986 kgReference

Front tire7.00-14Reference

Rear tire11.2-24Reference

Ag front7.00-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear41x14.0-20Reference

Industrial front25x8.5-14Reference

Industrial rear15.00-19.5Reference

Length281 cmReference

Width143 cmReference

Width147 cmReference

Height (hood)129 cmReference

Height (ROPS)209 cmReference

Operating weight986 kgReference

Max weight2000 kgReference

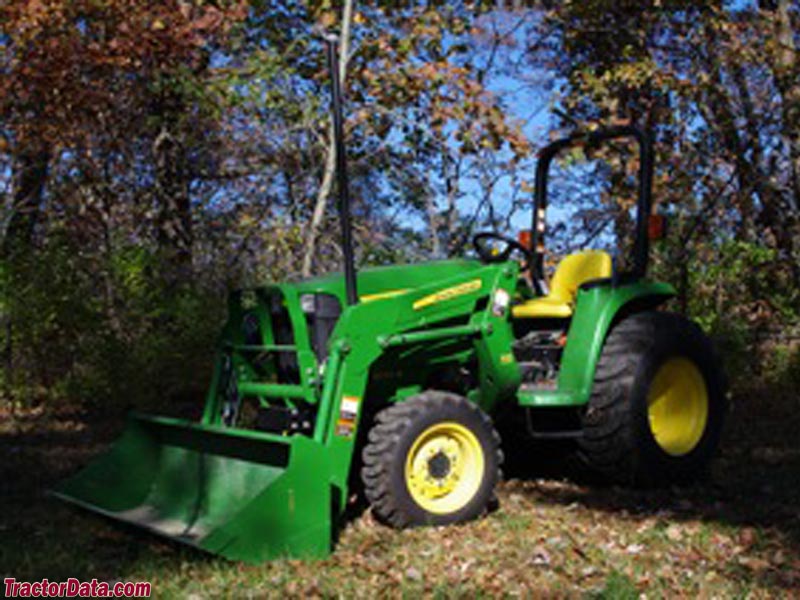

John Deere 3032E attachments

front-end loaderReference

3032E Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

3032E Serial Numbers

20093032E110001 (with loader)Reference

20093032E140001 (no loader)Reference

20103032E210001 (with loader)Reference

20103032E240001 (no loader)Reference

20113032ExBHxxxxxxReference

20123032ExCHxxxxxxReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Battery Group22NFReference

Battery size500 CCAReference

Alternator size55 ampReference

Attachment overview

John Deere 305 loaderReference

John Deere D160 loaderReference

General

Make & ModelYanmar @ 3TNV88C-NJTReference

LubricationPressurizedReference

Cruise controlOptionalReference

Differential lockYesReference

SCV controlJoystick: AvailableReference

Rollover protective structureType\\nFoldable\\nASABE S478Reference

PlatformSemi-flatReference

Power

Max Power31.2 hpReference

PTO

PTO Power25 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependentReference

Rear PTO RPM540 rpmReference

Steering & brakes

BrakesWet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)35.2 l/minReference

Hydraulics TypeDual gearReference

Maximum operating pressure2,500 psiReference

Remote ValvestwoReference

Steering & Implements flow15 L/min (20.2 L/min)Reference

Rear Hitch category (SAE designation)3-Point | Category 1Reference

Dimensions & weight

Ground Clearance36.3 cmReference

Turning radius2.9 mReference

Overall weight1,007.9 kgReference

Wheels & tyres

Rear Wheel TypeFarm - 11.2-24\\nTurf - 41x14-20\\nR4 - 15-19.5\\nR4 - 43x16-20Reference

Front Wheel TypeFarm - 7-14\\nTurf - 27x8.5-15\\nR4 - 25x8.5-14\\nR4 - 27x8.5-15Reference

Operator station

Cab AvailabilityOptionalReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
