Tractor · 2009Unverified

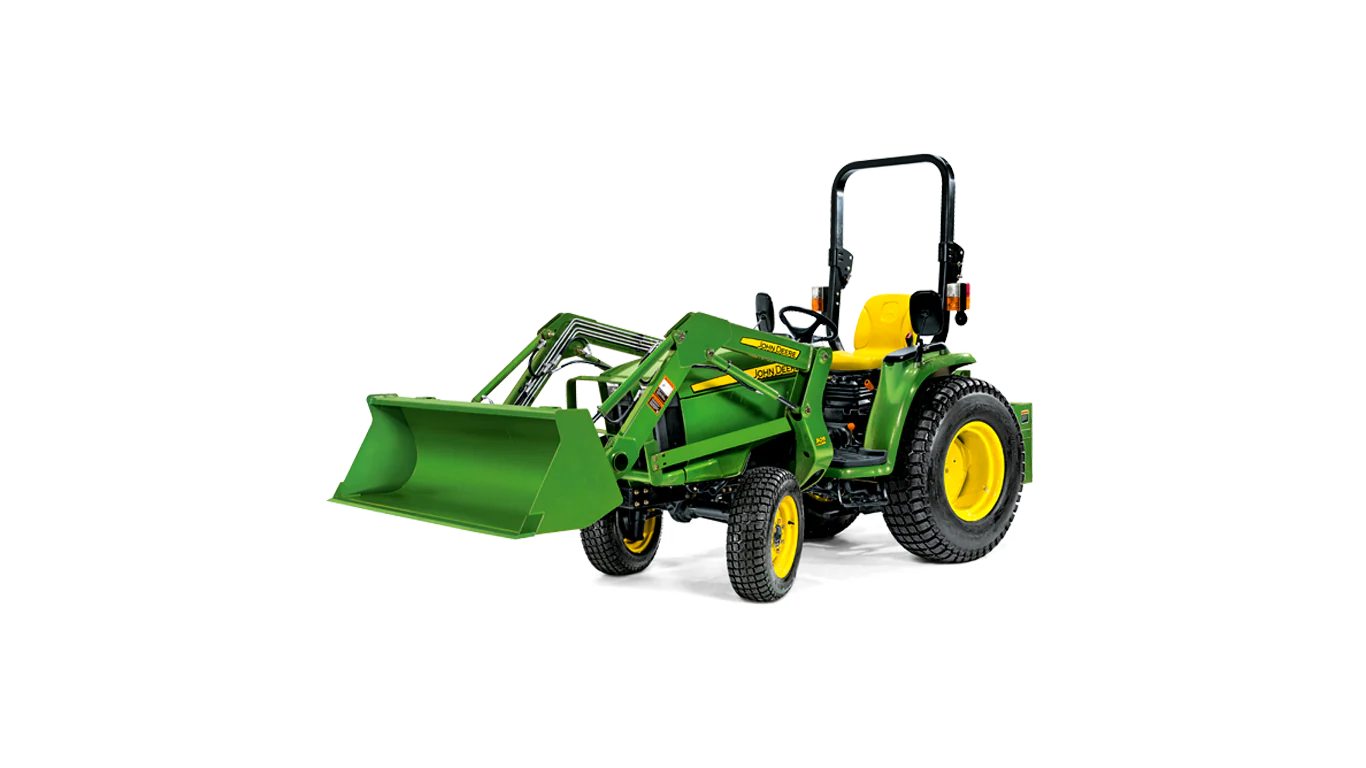

John Deere 3036E

Name: John Deere 3036E
Brand: John Deere

John Deere 3036E — Compact Utility tractor · 37 hp. Reference specifications; pending source verification.

The John Deere 3036E is a tractor model with a rating of approximately 37 horsepower, positioning it at the lower end of its class. This model was produced from 2009 to 2017. It is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. Its operating weight is listed as 1050 kg, with a maximum operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Max power

36.6 hp

Weight

1050 kg

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

37 hp

Recorded weight

1050 kg

Transmissions

hydrostatic

Production years

2009-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.5L 3-cyl dieselReference

Engine (gross)27.3 kWReference

Engine (net)25.0 kWReference

Yanmar 3TNV84TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Rated Power (net)25.0 kWReference

Rated Power (gross)27.3 kWReference

Fuel systemdirect injectionReference

Compression19:1Reference

Rated RPM2600Reference

Idle RPM950-2600Reference

Torque120.0 NmReference

Torque RPM1800Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Engine torque at rated speed40.1 kgReference

Bore and stroke3.31x3.54 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity21.0 LReference

Oil type[-17oC]Reference

-40: Low-Viscosity Hy-Gard 100Reference

0oF [-17oC]↑: Hy-GardReference

Transmission TypeHSTReference

forward and reverse optionsinfinite (2-range) F and RReference

Wheel Drive4WDReference

Capacities

Fuel23.8 LReference

Max capacity1999 kgReference

Fuel tank23.8 LReference

PTO & Hydraulics

Hydraulic system20.8 LReference

Typeopen centerReference

Capacity20.8 LReference

Pressure172.0 barReference

Pump flow20.1 lpmReference

Total flow35.2 lpmReference

Steering flow15.1 lpmReference

Rear TypeIReference

Rear lift615 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Dimensions

Weight1050 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front25x5.5-14Reference

Industrial rear15-19.5Reference

Length281 cmReference

Width143 cmReference

Height (ROPS)232 cmReference

Ground clearance33 cmReference

1050 kgReference

Max Drawbar400 kgReference

Max front axle800 kgReference

Max rear axle1200 kgReference

John Deere 3036E attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelJohn DeereReference

Power

Max Power36.6 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Maximum operating pressure2,495 psiReference

Steering & Implements flow4 gpm (5.3 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity615.1 kgReference

Dimensions & weight

Height Over ROPS232.2 cmReference

Overall Length281.9 cmReference

Overall Width143.5 cmReference

Overall weight1,050.1 kgReference

Wheels & tyres

Rear Wheel Type11.2-24Reference

Front Wheel Type45,487Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
