Tractor · 2014Unverified

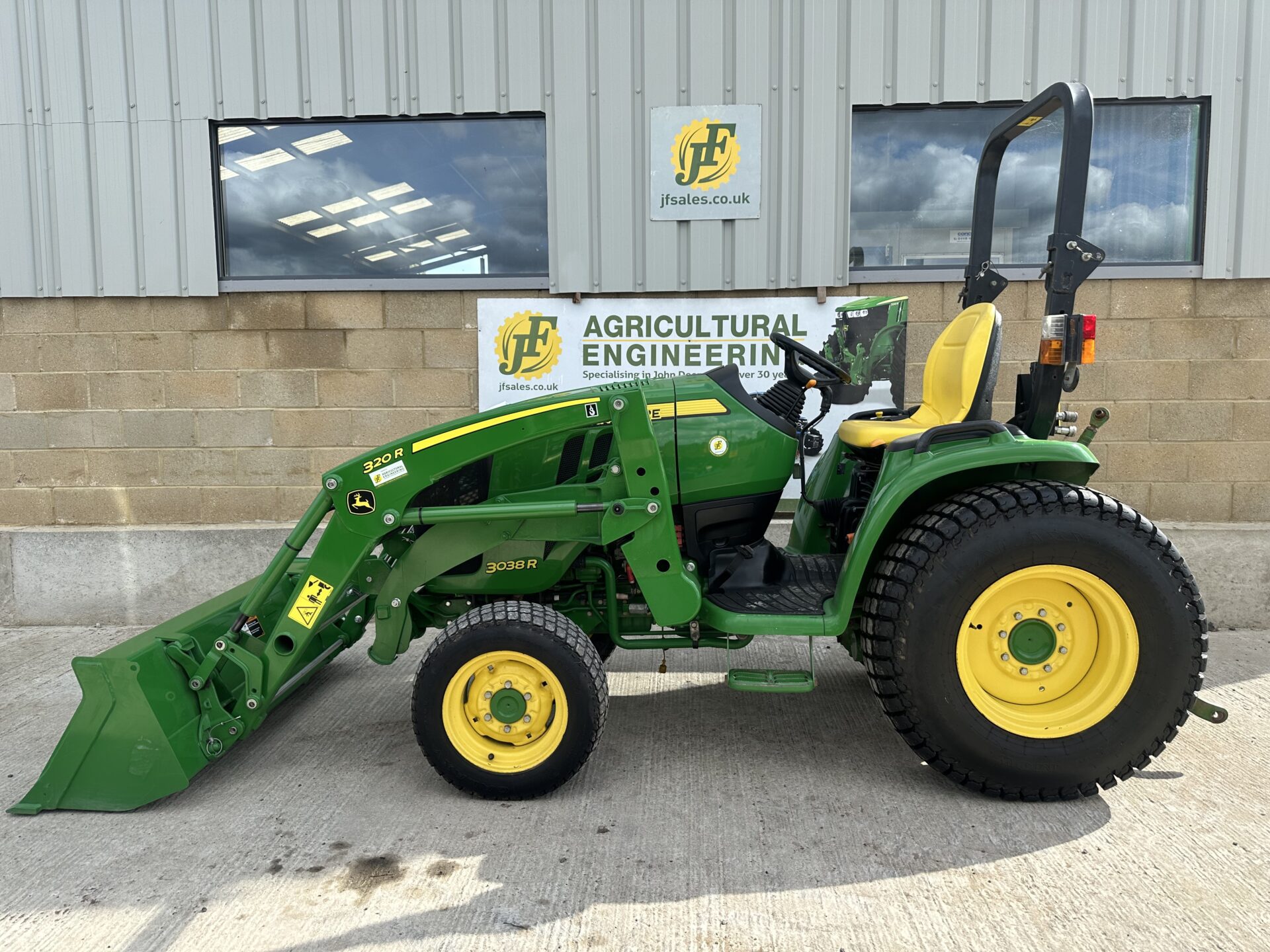

John Deere 3038R
John Deere 3038R — 3R Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3086 to 3748 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine (gross)27.7 kWReference
Engine (net)27.0 kWReference
YanmarReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 90 mmReference
Rated Power (net)27.0 kWReference
Rated Power (gross)27.7 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque116.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
ROPS Coolant capacity5.3 LReference
Cab Coolant capacity7.0 LReference
Transmission
hydrostaticReference
12-speed power shuttleReference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Hydraulic system25.7 LReference
Typeopen centerReference
Capacity25.7 LReference
Pump flow32.6 lpmReference
Total flow52.6 lpmReference
Steering flow20.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1148 kgReference
Rear lift (at 24"/610mm)998 kgReference
Front Hitch0/IReference
Front lift (at ends)1102 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Front PTOindependentReference
Front PTO Type2100Reference
Capacities
ROPS Fuel51.1 LReference
Cab Fuel45.0 LReference
Max capacity3180 kgReference
Dimensions
Wheelbase172 cmReference
Weight3086 to 3748 poundsReference
Front tire7.00-14Reference
Rear tire11.2-24Reference
Weight567 kgReference
Weight630 kgReference
Standard tires (ag)Front: 7.00-14. Rear: 11.2-24Reference
Optional tires (ag)Front: 240/70R16. Rear: 360/70R24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14-20Reference
Lawn/turf front25x10.50LL-15Reference
Lawn/turf rear41LLx18-16.1Reference
Industrial front25x8.50-14Reference
Industrial rear15-19.5Reference
Industrial front27x8.5-15Reference
Industrial rear43x16.00-20Reference
Length323 cmReference
Width132 cmReference
Height (ROPS)236 cmReference
Height (cab)227 cmReference
ROPS1399 kgReference
Cab1700 kgReference
John Deere 3038R attachments
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
John Deere 375A Backhoe
Backhoe typeJohn Deere 375A BackhoeReference
Transport height215 cmReference
Bucket width40 cmReference
2-Foot flat digging depth238 cmReference
Reach from pivot327 cmReference
Loading height172 cmReference
Bucket Rotation180°Reference
Swing Arc170°Reference
Bucket force1389 kgReference
Dipperstick force925 kgReference
John Deere 385A Backhoe
Backhoe typeJohn Deere 385A BackhoeReference
Transport height231 cmReference
Bucket width40 cmReference
2-Foot flat digging depth261 cmReference
Reach from pivot355 cmReference
Loading height198 cmReference
Bucket Rotation180°Reference
Swing Arc170°Reference
Bucket force1701 kgReference
Dipperstick force1110 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
