Tractor · 2014Unverified

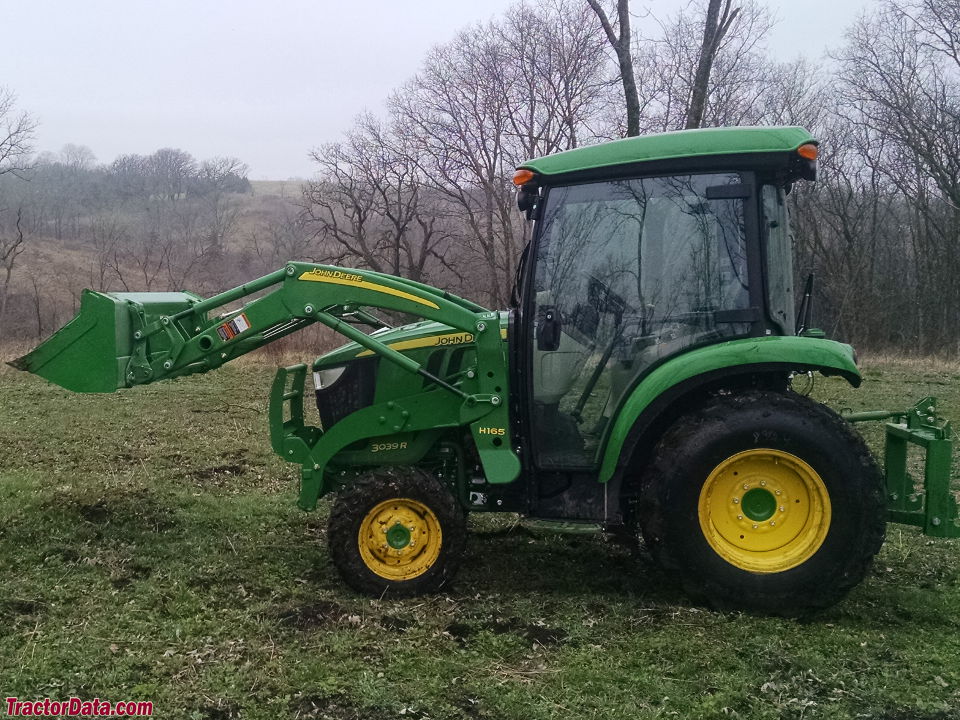

John Deere 3039R

Name: John Deere 3039R
Brand: John Deere

John Deere 3039R — 3R Series · 32 hp. Reference specifications; pending source verification.

The John Deere 3039R is a tractor with a power rating of approximately 32 hp, positioning it at the lighter end of its class. It was produced in 2014. Equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, four-wheel drive and a hydrostatic transmission, the 3039R has an operating weight of between 2900 and 3570 pounds. Its capabilities extend to operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Max power

38.2 hp (2,600 rpm)

Weight

2900 to 3570 pounds

Catalogue coverage

Variants represented

Richest spec table

158 rows

Recorded power

32 hp

Recorded weight

567 kg

Transmissions

hydrostatic

Production years

2014-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $27,222 in 2020Reference

Four-wheel driveReference

Final driveshelical gearReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS. Optional cab with air-conditioning.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Engine28.5 kWReference

Yanmar 3TNV86Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke86 x 90 mmReference

EmissionsTier IVReference

Emission controldiesel particulate filter (DPF)Reference

Power28.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity5.3 LReference

Coolant capacity7.0 LReference

Oil capacity4.3 LReference

Oil change200 hReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed2,600 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed105 NmReference

Injection pump typeHigh pressure common rail direct injectionReference

AspirationTurbochargedReference

Bore and stroke86 x 90 mmReference

Compression ratio19.1:1Reference

Cooling systemLiquidReference

Transmission

hydrostaticReference

12-speed power shuttleReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity25.7 LReference

TransmissionPowrReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Four synchronized gears (1-4) in three ranges (A, B, C) with left-hand power shuttle.Reference

Transmission TypePower ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Shuttle PTO (claimed)23.6 kWReference

Hydro PTO (claimed)23.2 kWReference

Hydraulic system25.7 LReference

Typeopen centerReference

Capacity25.7 LReference

Pump flow32.6 lpmReference

Total flow52.6 lpmReference

Steering flow20.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1147 kgReference

Rear lift (at 24"/610mm)997 kgReference

Front Hitch0Reference

Front lift (at ends)589 kgReference

Front lift (at 24"/610mm)369 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Capacities

Fuel44.7 LReference

Fuel51.1 LReference

Front axle4.8 LReference

Front Axle capacity1,450.1 kgReference

Rear Axle capacity1,850.2 kgReference

Fuel tank47.6 LReference

Crankcase oil volume4.3 LReference

Dimensions

Wheelbase172 cmReference

Weight2900 to 3570 poundsReference

Front tire7.00-14Reference

Rear tire11.2-24Reference

Weight567 kgReference

Weight630 kgReference

Standard tires (ag)Front: 7.00-14. Rear: 11.2-24Reference

Ground clearance30 cmReference

Front tread114 cmReference

Rear tread103 cmReference

ROPS1315 kgReference

Cab1619 kgReference

Max front axle1449 kgReference

Max rear axle2000 kgReference

John Deere 3039R attachments

60.9" mid-mount mower deckReference

72.8" mid-mount mower deckReference

front-end loaderReference

backhoeReference

3039R Serial Numbers

Location:Serial number plate on right side of tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Battery size500 CCAReference

Alternator size75 ampReference

Attachment overview

60.9" mid-mount mower deckReference

72.8" mid-mount mower deckReference

John Deere H160 loaderReference

John Deere H165 loaderReference

BackhoeReference

John Deere 375A Backhoe

Backhoe typeJohn Deere 375A BackhoeReference

Transport height215 cmReference

Bucket width40 cmReference

2-Foot flat digging depth238 cmReference

Reach from pivot327 cmReference

Loading height172 cmReference

Bucket Rotation180°Reference

Swing Arc170°Reference

Bucket force1389 kgReference

Dipperstick force925 kgReference

John Deere 385A Backhoe

Backhoe typeJohn Deere 385A BackhoeReference

Transport height231 cmReference

Bucket width40 cmReference

2-Foot flat digging depth261 cmReference

Reach from pivot355 cmReference

Loading height198 cmReference

Bucket Rotation180°Reference

Swing Arc170°Reference

Bucket force1701 kgReference

Dipperstick force1110 kgReference

John Deere 3039R Height

Hood144 cmReference

ROPS236 cmReference

ROPS182 cmReference

Cab215 cmReference

Speeds

With 11.2-24 R1 rear tires.Reference

General

Make & ModelYanmar® @ 3TNV86CT-MJTReference

LubricationPressurizedReference

Air cleanerDual elementReference

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Rollover protective structureType\\nFoldableReference

PlatformOne-piece semi flatReference

Power

Max Power38.2 hp (2,600 rpm)Reference

PTO

PTO Power32.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlLever and switchReference

Rear PTO RPM540 rpmReference

Steering & brakes

BrakesWet diskReference

Steering typeHydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)57.8 l/minReference

Hydraulics TypeSingle gearReference

Maximum operating pressure2,495 psiReference

Remote Valves6Reference

Steering & Implements flow23.5 L/min (34.3 L/min)Reference

Rear Hitch category (SAE designation)Category 1Reference

Dimensions & weight

Turning radius2.7 mReference

Overall weight1,363 kgReference

Operator station

Cab AvailabilityOptionalReference

Cab Noise level80 dBAReference

Cab Front visibility360 degreeReference

Cab Seat equipmentScissor-linkReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
