Tractor · 1980Unverified

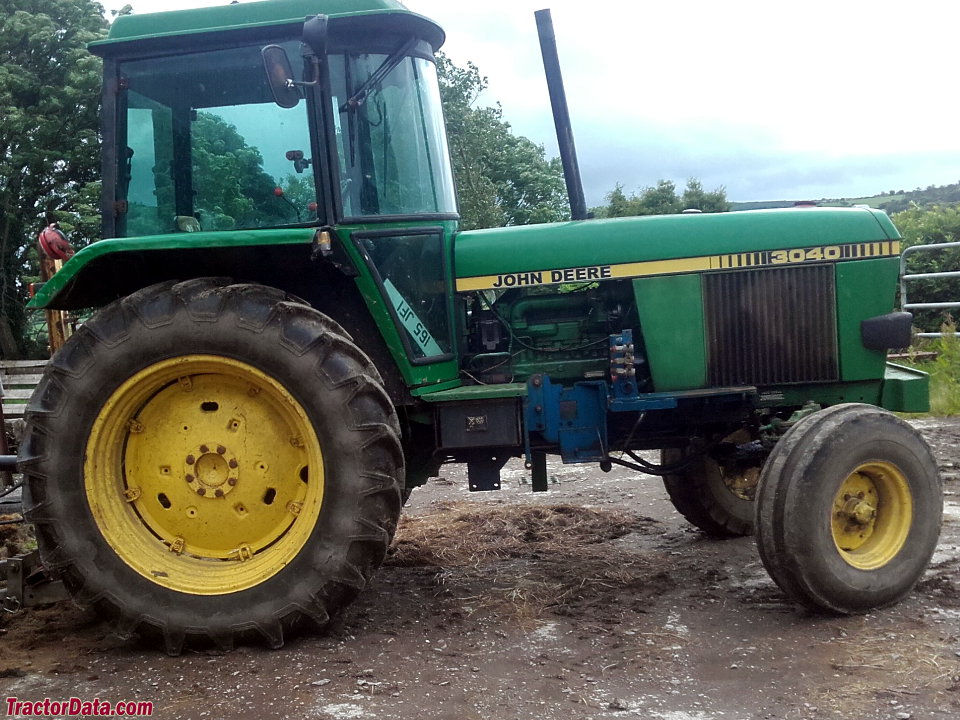

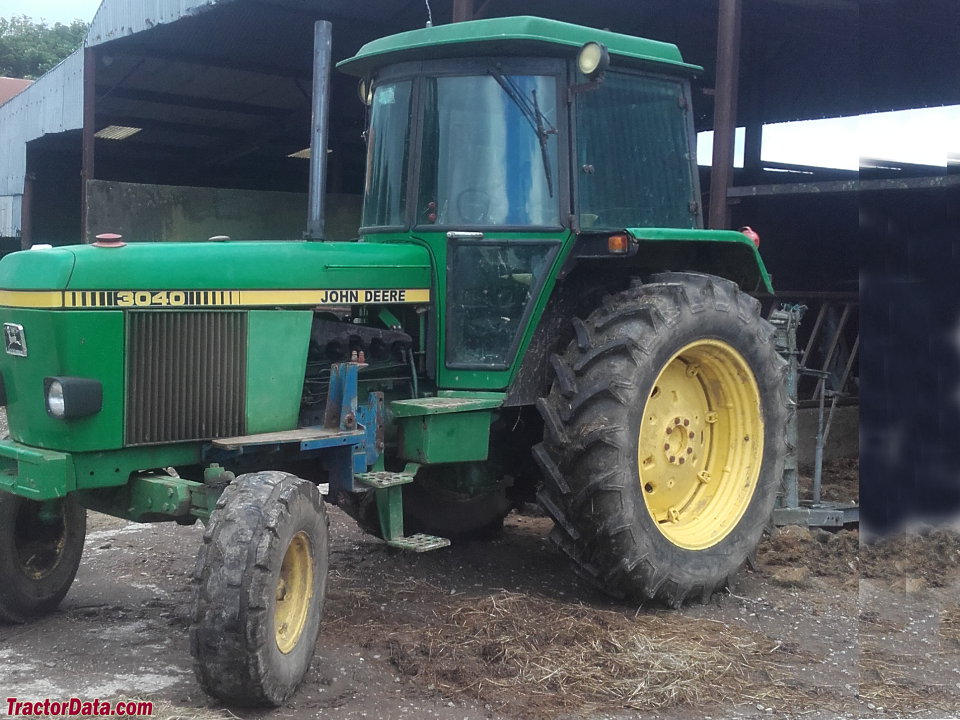

John Deere 3040
John Deere 3040 — Model year 1980-19811981-1987 · 89 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Weight
9175 to 9790 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Sound Gard SG2 cab standard.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Engine (net)66.0 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Power (net)66.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.8:1Reference
Rated RPM2500Reference
Torque295.6 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.5 LReference
Coolant capacity24.0 LReference
Transmission
8-speedReference
16-speed two-speed power shiftReference
Gears8 forward and 4 reverseReference
TransmissionPower SyncronReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Oil capacity60.0 LReference
PTO & Hydraulics
PTO (claimed)58.0 kWReference
Hydraulic system60.0 LReference
Typeclosed centerReference
Capacity60.0 LReference
Pressure170.0 barReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3485 kgReference
Rear PTOindependentReference
Clutchhydraulic discReference
Rear PTO Type540/1000Reference
Engine RPM540@2400Reference
Engine RPM1000@2400Reference
Capacities
Fuel126.0 LReference
Dimensions
2WD Wheelbase254 cmReference
4WD Wheelbase259 cmReference
Weight9175 to 9790 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-38Reference
4WD Standard tires (ag)Front: 12.4-28. Rear: 16.9-38Reference
2WD Length424 cmReference
4WD Length439 cmReference
Width205 cmReference
Height (cab)279 cmReference
Height (exhaust)302 cmReference
2WD Shipping weight4161 kgReference
4WD Shipping weight4440 kgReference
2WD Clearance (front axle)66 cmReference
4WD Clearance (front axle)50 cmReference
2WD Front tread144 to 208 cmReference
4WD Front tread141 to 210 cmReference
Rear tread160 to 200 cmReference
3040 Serial Number Location
Serial number plate on the right side of the John Deere 3040, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
