Tractor · 2014Unverified

John Deere 3045R

Name: John Deere 3045R
Brand: John Deere

John Deere 3045R — 3R Series · 45 hp. Reference specifications; pending source verification.

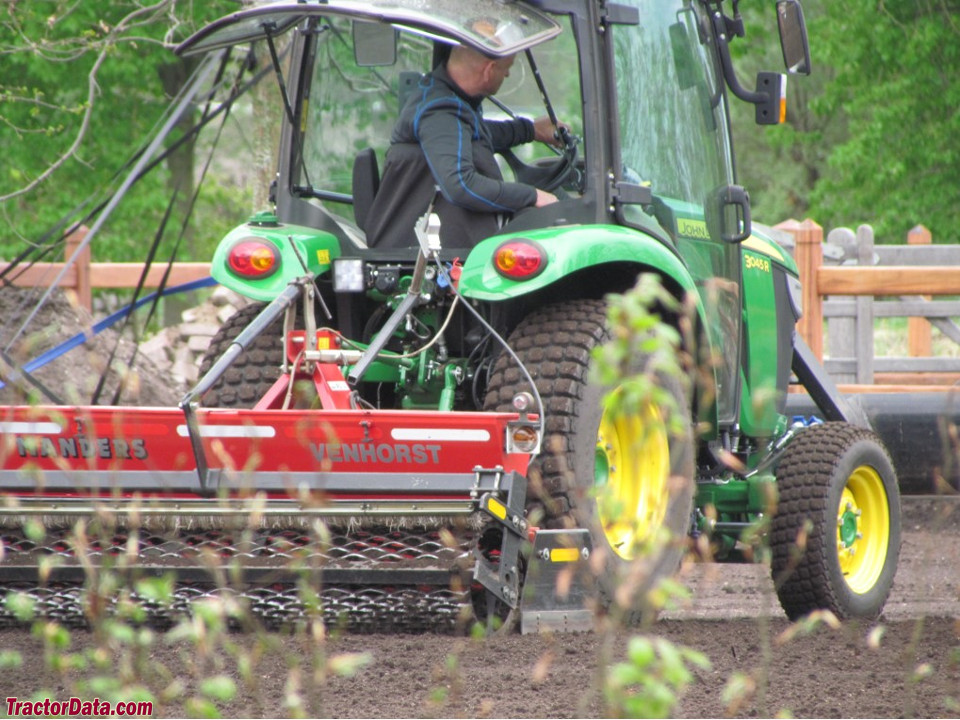

The John Deere 3045R is a compact tractor model rated at 45 hp, manufactured in 2014. It is equipped with a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a hydrostatic transmission through four-wheel drive. The tractor's weight ranges from 3086 to 3748 pounds. It is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

3086 to 3748 pounds

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

45 hp

Recorded weight

567 kg

Transmissions

hydrostatic

Production years

2014-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

Yanmar 1.5L 3-cyl dieselReference

Engine (gross)33.3 kWReference

Engine (net)32.8 kWReference

YanmarReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke86 x 90 mmReference

Rated Power (net)32.8 kWReference

Rated Power (gross)33.3 kWReference

Air cleanerdryReference

Rated RPM2600Reference

Torque137.1 NmReference

Torque RPM1560Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.7 LReference

ROPS Coolant capacity5.3 LReference

Cab Coolant capacity7.0 LReference

Transmission

hydrostaticReference

TransmissioneHydroReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)26.1 kWReference

Hydraulic system25.7 LReference

Typeopen centerReference

Capacity25.7 LReference

Pump flow32.6 lpmReference

Total flow52.6 lpmReference

Steering flow20.1 lpmReference

Rear TypeIReference

Rear lift (at ends)1148 kgReference

Rear lift (at 24"/610mm)998 kgReference

Front Hitch0/IReference

Front lift (at ends)1102 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Front PTOindependentReference

Front PTO Type2100Reference

Dimensions

Wheelbase172 cmReference

Weight3086 to 3748 poundsReference

Front tire7.00-14Reference

Rear tire11.2-24Reference

Weight567 kgReference

Weight630 kgReference

Standard tires (ag)Front: 7.00-14. Rear: 11.2-24Reference

Optional tires (ag)Front: 240/70R16. Rear: 360/70R24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14-20Reference

Lawn/turf front25x10.50LL-15Reference

Lawn/turf rear41LLx18-16.1Reference

Industrial front25x8.50-14Reference

Industrial rear15-19.5Reference

Industrial front27x8.5-15Reference

Industrial rear43x16.00-20Reference

Length323 cmReference

Width132 cmReference

Height (ROPS)236 cmReference

Height (cab)227 cmReference

ROPS1399 kgReference

Cab1700 kgReference

John Deere 3045R attachments

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

John Deere 375A Backhoe

Backhoe typeJohn Deere 375A BackhoeReference

Transport height215 cmReference

Bucket width40 cmReference

2-Foot flat digging depth238 cmReference

Reach from pivot327 cmReference

Loading height172 cmReference

Bucket Rotation180°Reference

Swing Arc170°Reference

Bucket force1389 kgReference

Dipperstick force925 kgReference

John Deere 385A Backhoe

Backhoe typeJohn Deere 385A BackhoeReference

Transport height231 cmReference

Bucket width40 cmReference

2-Foot flat digging depth261 cmReference

Reach from pivot355 cmReference

Loading height198 cmReference

Bucket Rotation180°Reference

Swing Arc170°Reference

Bucket force1701 kgReference

Dipperstick force1110 kgReference

Capacities

Max capacity3180 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
