Backhoe Loader · 2012Unverified

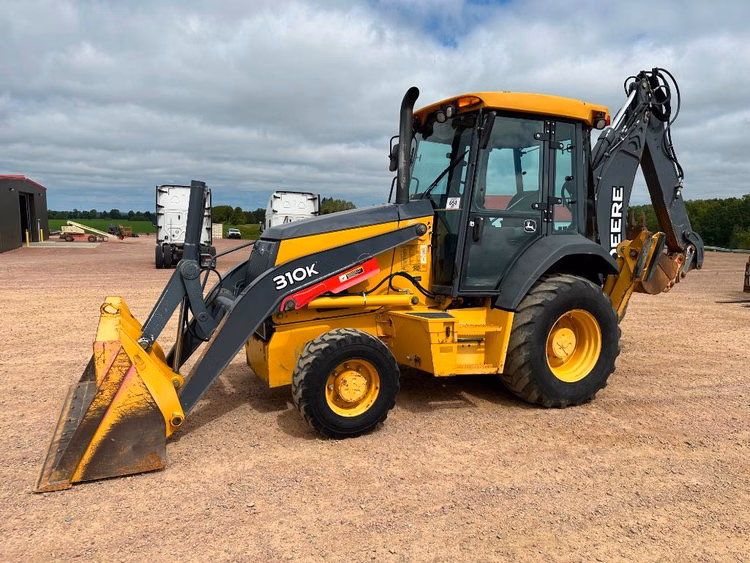

John Deere 310K
John Deere 310K — Backhoe loader tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockhydraulic rearReference
Power steeringReference
Four-post ROPS. Cab available with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank155.2 LReference
Engine65.6 kWReference
John Deere 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke105 x 127 mmReference
EmissionsInterim Tier IVReference
Power65.6 kWReference
Rated RPM2000Reference
Torque374.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
4-speed full power shiftReference
Typefull power shiftReference
Gears4 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure249.9 barReference
Pressure220.6 barReference
Pump flow106.0 lpmReference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase213 cmReference
Length708 cmReference
Width218 cmReference
Height (cab)274 cmReference
Height (backhoe)342 cmReference
Ground clearance30 cmReference
Backhoe & Loader
Dig depth434 cmReference
Dump angle114 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries1Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere Backhoe
Backhoe typeJohn Deere BackhoeReference
Transport height342 cmReference
Digging depth434 cmReference
2-Foot flat digging depth431 cmReference
8-Foot flat digging depth396 cmReference
Reach from pivot543 cmReference
Loading height332 cmReference
Swing Arc180°Reference
Bucket force5037 kgReference
Dipperstick force3177 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
