Tractor · 1973Unverified

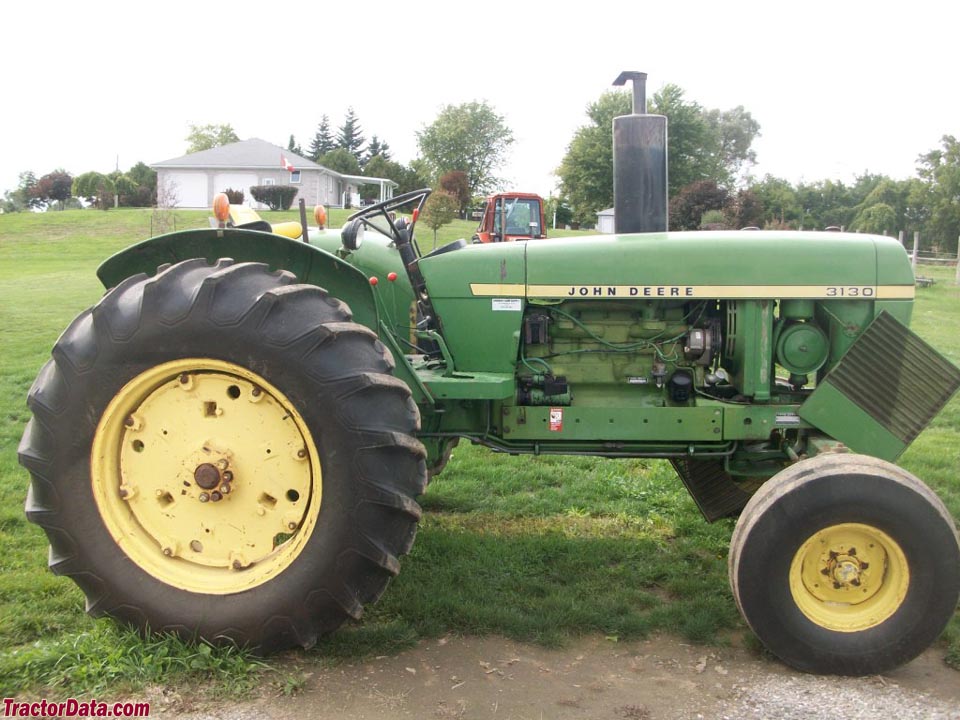

John Deere 3130
John Deere 3130 — Utility tractor · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
3719 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
The John Deere 3130 saw a redesign in 1975 at tractor serial number 182150. The front, hood, and decals were changed to a more rounded appearance. The 3130 was sold as the 2840 in the United States.Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference

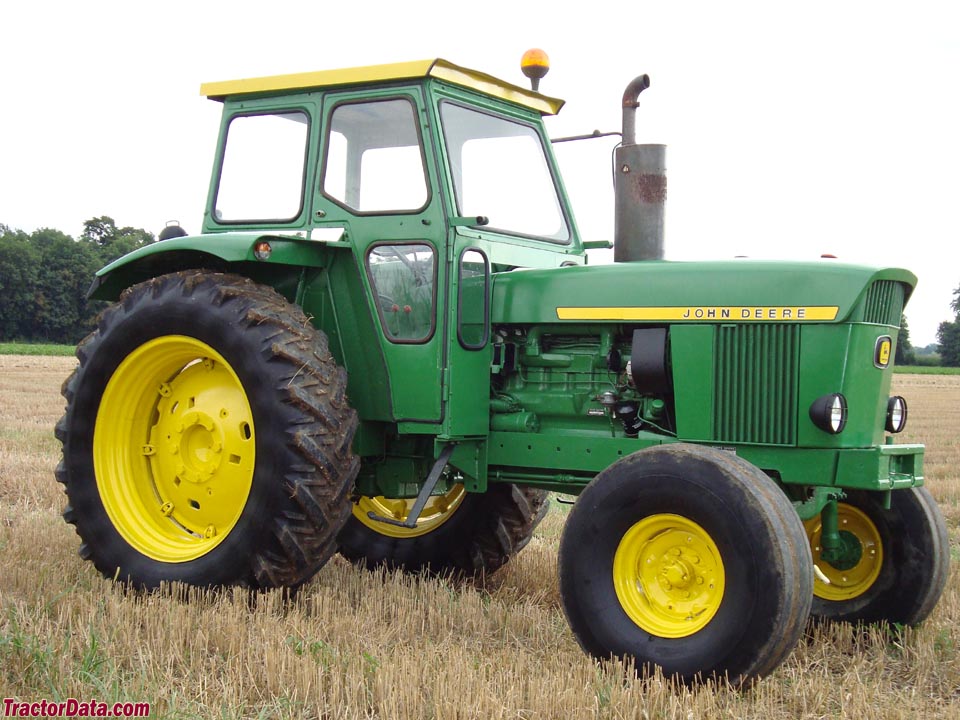

Open operator station. Cab optional.Reference
Variants

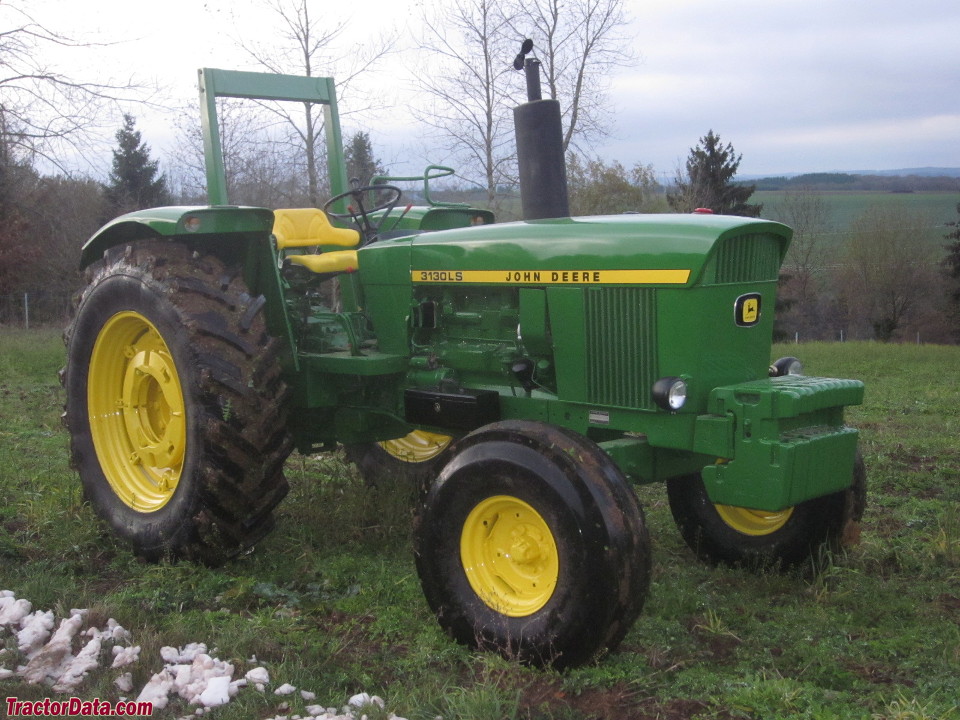

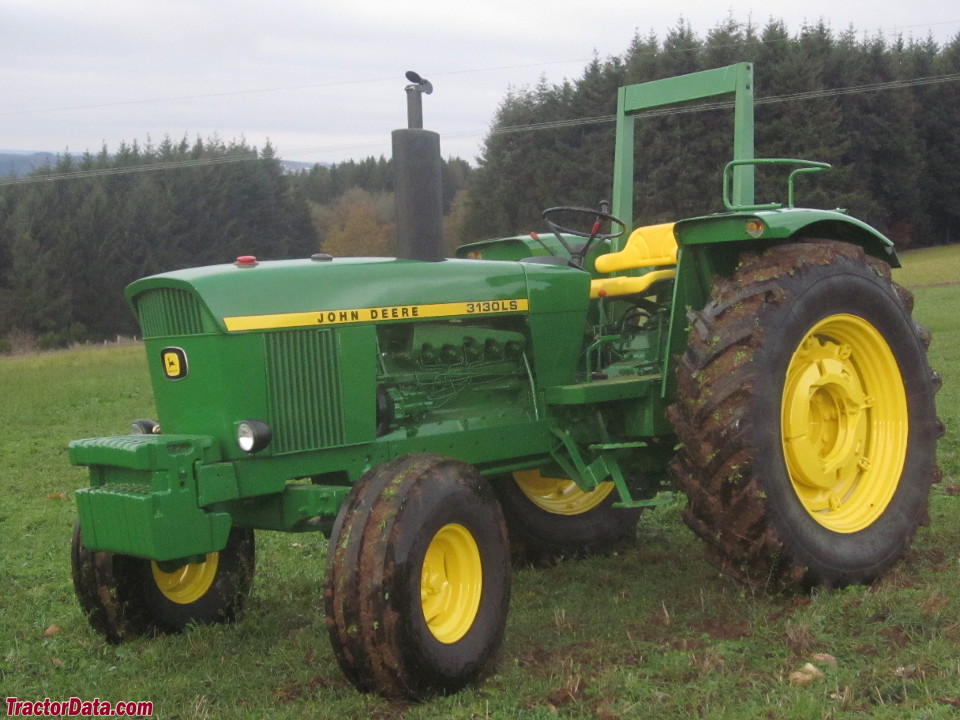

3130LS12-speedReference
Engine
John Deere 5.4L 6-cyl dieselReference
Engine (gross)72.0 kWReference
Engine (net)65.0 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
The 3130 engine could be ordered with an optional turbocharger (TA 3401) as an altitude compensator.Reference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Power (net)65.0 kWReference
Power (gross)72.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.2:1Reference
Rated RPM2500Reference
Idle RPM650-2660Reference
Operating RPM1300-2500Reference
Torque296.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.3 LReference
Coolant capacity18.9 LReference
Transmission
12-speed two-speed power shiftReference
6-speed sliding gearReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears12 forward and 6 reverseReference
Three gears in two ranges, plus reverse range. Two-speed hydraulic high-low shift.Reference
Typesliding gearReference
Gears6 forward and 3 reverseReference
Three gears in two ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)56.0 kWReference
Hydraulic system56.8 LReference
Typeclosed centerReference
Capacity56.8 LReference
Pump flow87.1 lpmReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift3380 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Capacities
Fuel106.0 LReference
Dimensions
Wheelbase246 cmReference
Weight3719 kgReference
Front tire7.50-18Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 18.4-34Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9-38Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-38Reference
Length400 cmReference
Width207 cmReference
Height262 cmReference
Flange rear axleReference
Rack-and-pinion rear axleReference
Front tread144 to 195 cmReference
Rear tread160 to 199 cmReference
Rear tread160 to 251 cmReference
John Deere 3130 attachments
front-end loaderReference
3130 Serial Number Location
Serial number plate on the front-right of the 3130 tractor frame, above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging amps55Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
