Tractor · 1977Unverified

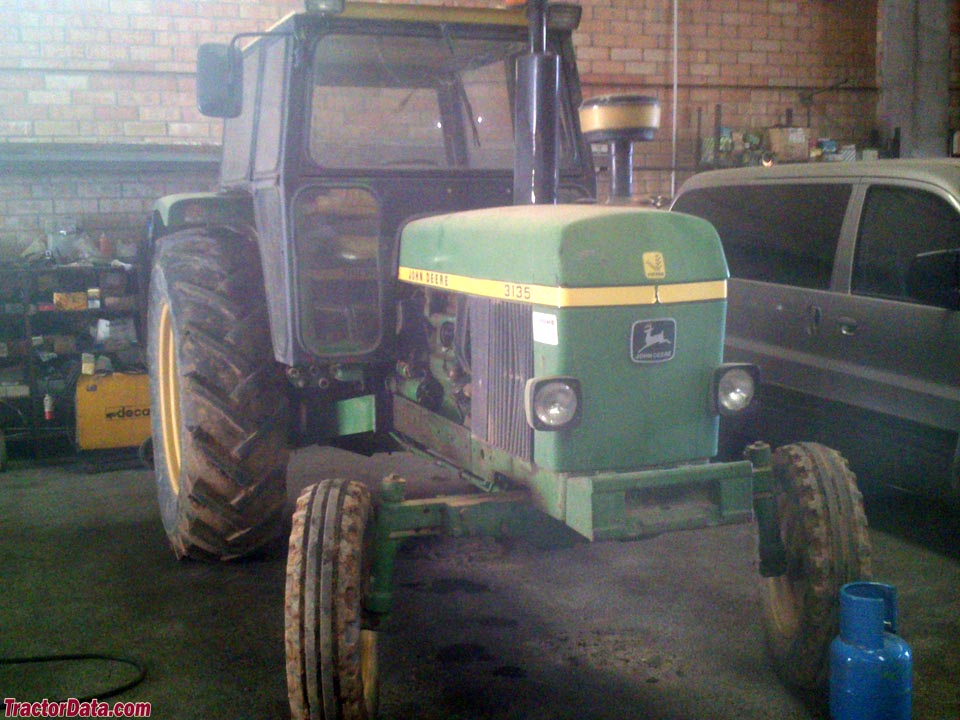

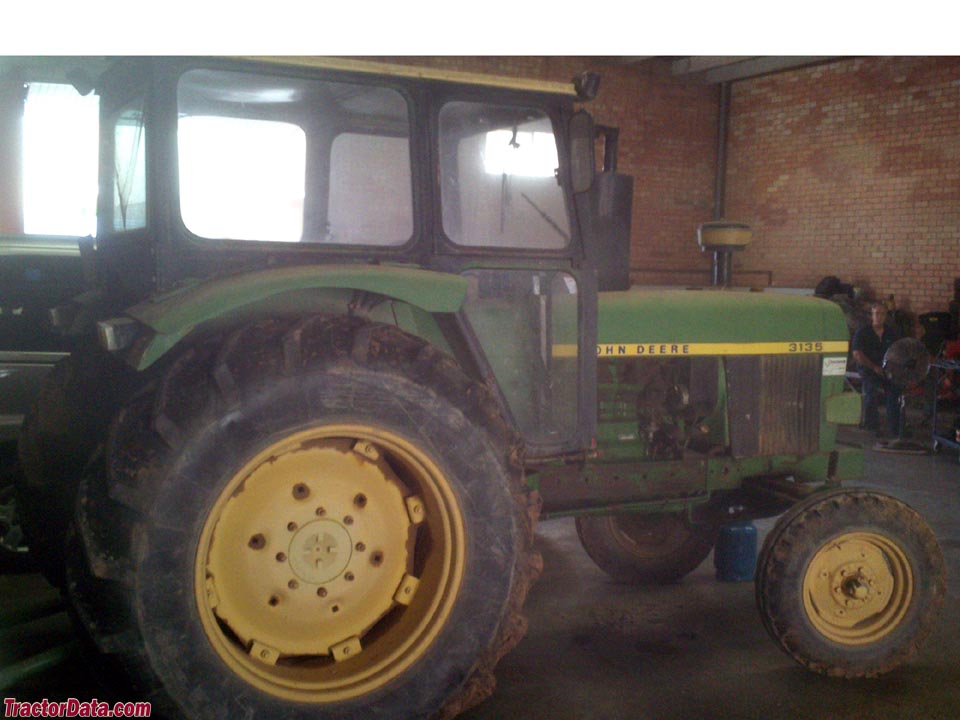

John Deere 3135
John Deere 3135 — Utility tractor · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Getafe, SpainReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Engine
John Deere 5.4L 6-cyl dieselReference
Engine67.9 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Power67.9 kWReference
Starter volts12Reference
Transmission
6-speed gearReference
12-speed two-speed power shiftReference
TypegearReference
Gears6 forward and 3 reverseReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag rear16.9-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Ag rear15.5-38Reference
Ag rear16.9-38Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
