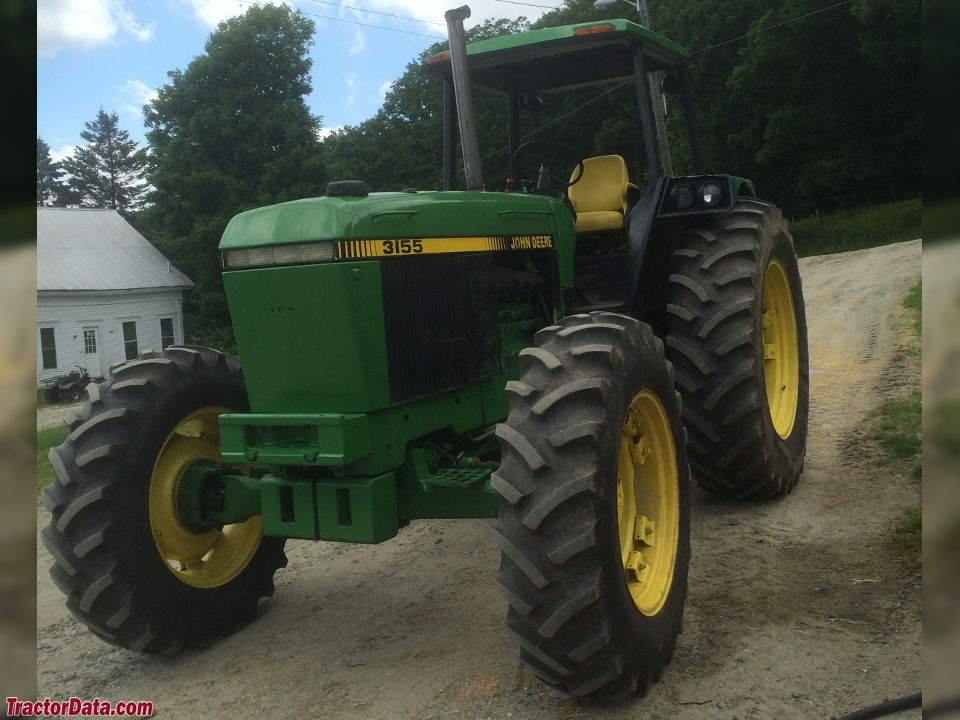

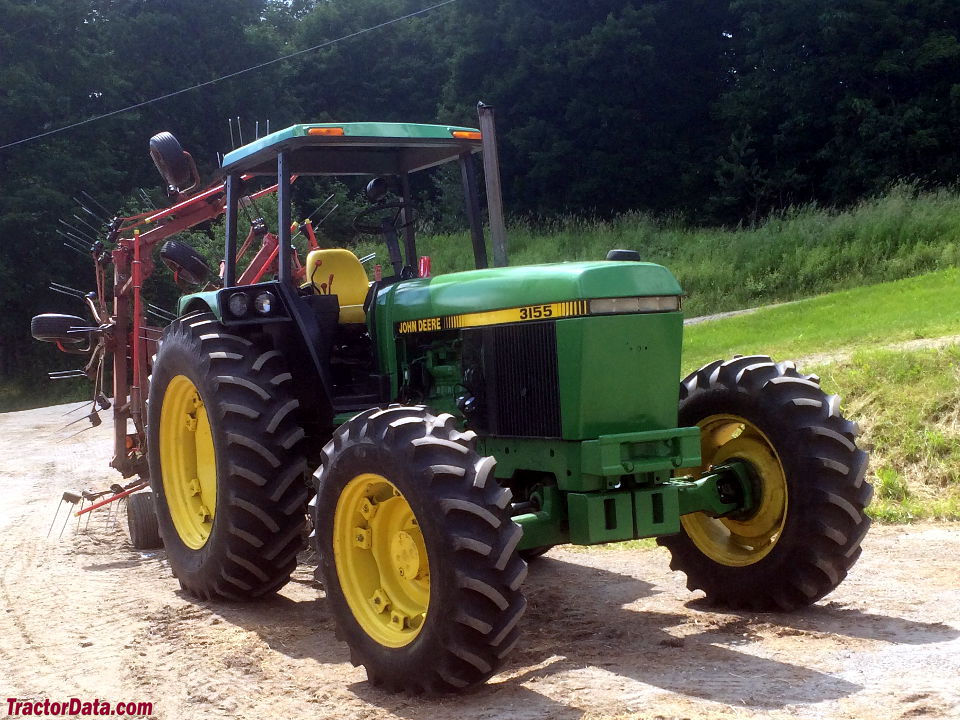

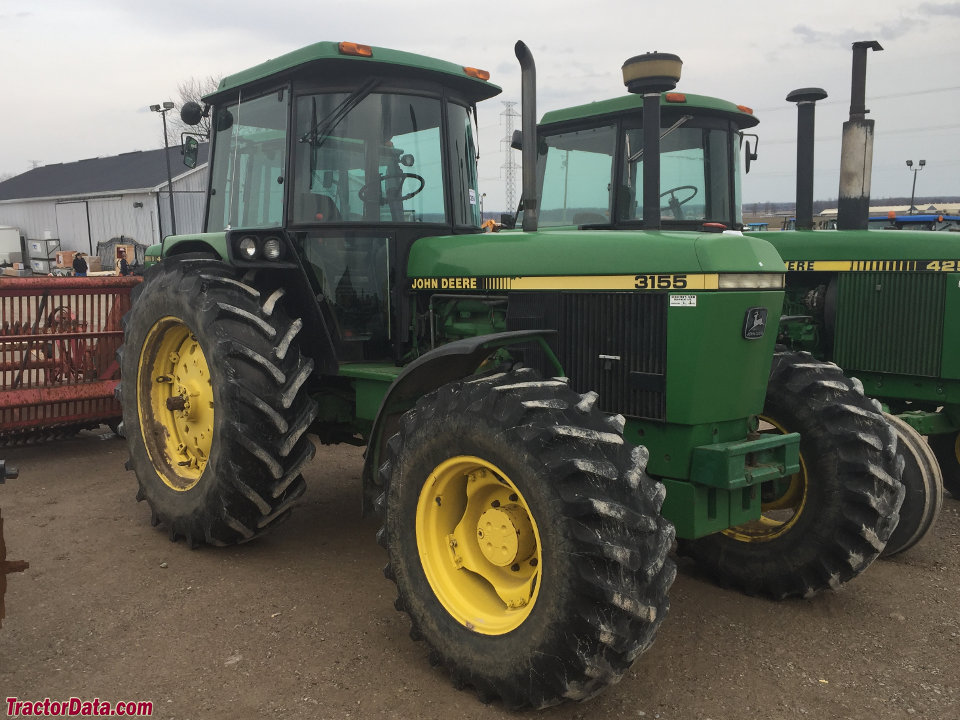

John Deere 3155
John Deere 3155 — 55 Utility Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Max power
61.1 kW
Weight
10100 to 11770 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price was $43,000 in 1992Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Sound-Gard Cab optional.Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Fuel tank173.0 LReference
Drawbar (tested)61.1 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Air cleanerdual paper elementsReference
Compression17.8:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity11.5 LReference
Coolant capacity17.0 LReference
Power at rated engine speed71.6 kWReference
Max power61.1 kWReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
TransmissionTop-Shaft-SynchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
One of four speeds selected with left lever. Right lever provides choice between ranges 1, 2, and reverse. The 1/2/R lever could be shifted on the move with the clutch.Reference
TransmissionTSS Hi-LoReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Similar to the TSS transmission, but with an additional Hi-Low range lever on the left side of the dash. The Hi-Low range could be shifted without using the clutch.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)71.6 kWReference
Typeclosed centerReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Rear TypeIIReference
Rear lift2861 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase258 cmReference
Weight10100 to 11770 poundsReference
ROPS Shipping4581 kgReference
Cab Shipping4740 kgReference
Cab Operating5338 kgReference
Ballasted5579 kgReference
John Deere 3155 attachments
front-end loaderReference
3155 Serial Numbers
Location:Serial number plate on the right side of the tractor frame.Reference
1987618645Reference
1988624591Reference
1989653652Reference
1990685545Reference
1991717916Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Batteries2Reference
Battery CCA610Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDApril 1 - 14, 1986Link: Nebraska Tractor Test 1589 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Gear 5L used for power test.Reference
Max pull4765 kgReference
Gear 2H used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
