Backhoe Loader · 2007Unverified

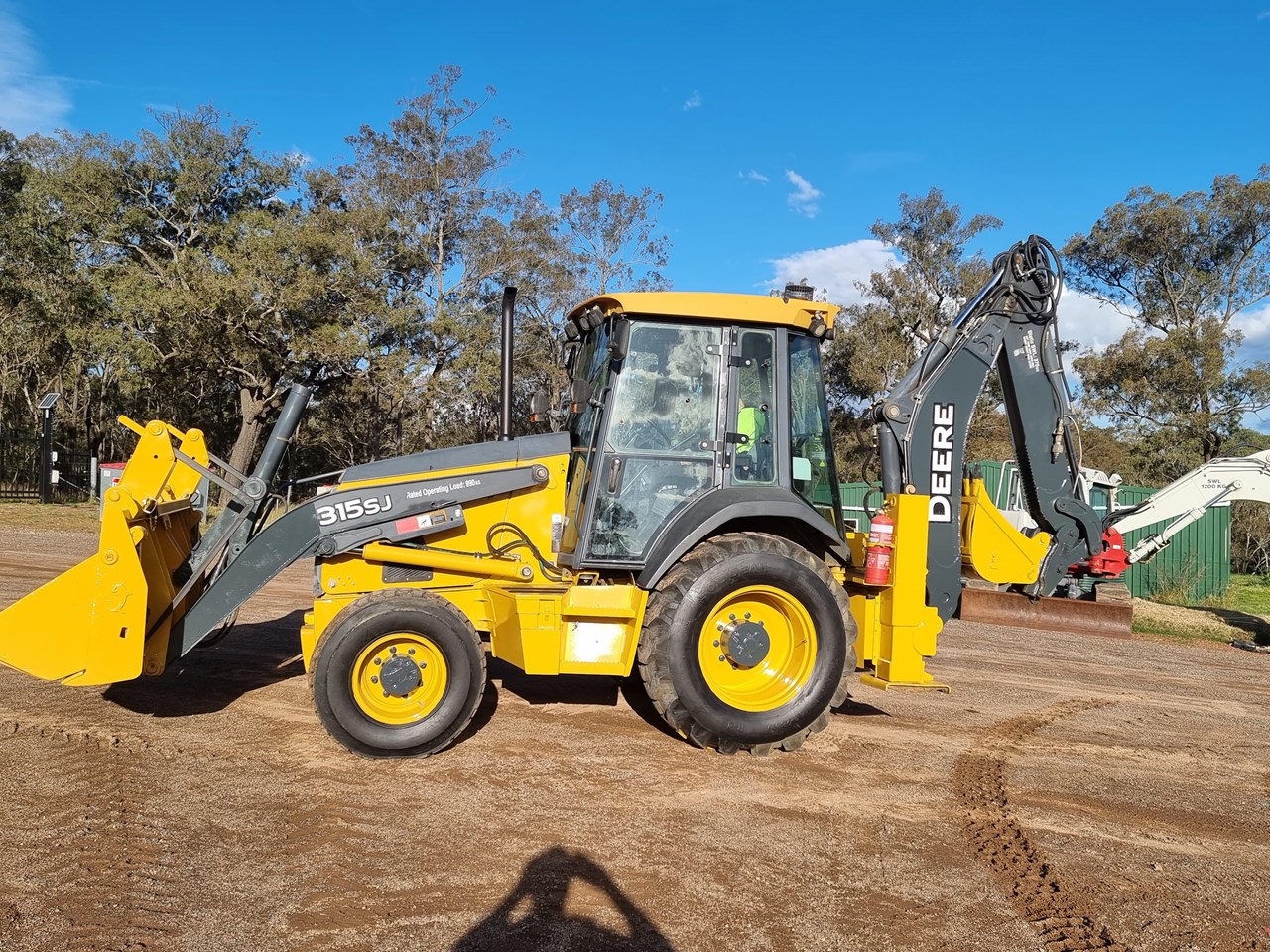

John Deere 315SJ
John Deere 315SJ — Backhoe loader tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
15400 to 18350 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Backhoe loader tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine68.6 kWReference
John Deere 4045TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Power68.6 kWReference
Air cleanerdual stage dryReference
Rated RPM2000Reference
Torque382.4 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity20.8 LReference
Transmission
4-speed full powershiftReference
TransmissionPowerShiftReference
Typefull powershiftReference
Gears4 forward and 3 reverseReference
Oil capacity16.0 LReference
Capacities
Fuel155.2 LReference
Front axle6.6 LReference
Rear axle18.0 LReference
PTO & Hydraulics
Hydraulic system90.8 LReference
Typeopen centerReference
Capacity90.8 LReference
Pressure249.9 barReference
Total flow136.3 lpmReference
Total flow106.0 lpmReference
Dimensions
Wheelbase210 cmReference
Wheelbase213 cmReference
Weight15400 to 18350 poundsReference
Front tire11L-16Reference
Rear tire16.9-28Reference
Industrial front11L-16 (2WD)Reference
Industrial front12.5/80-18 (4WD)Reference
Industrial rear16.9-28Reference
Industrial rear19.5L-24Reference
Industrial rear500/70R24Reference
Length525 cmReference
Height (ROPS)279 cmReference
Height (cab)279 cmReference
Operating weight6985 kgReference
Operating weight8323 kgReference
Ground clearance35 cmReference
Backhoe & Loader
Dig depth174 to 216 inchesReference
Dump angle114 cmReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2 (optional)Reference
Battery CCA950Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere Backhoe
Backhoe typeJohn Deere BackhoeReference
Digging depth (retracted stick)441 cmReference
Digging depth (extended stick)548 cmReference
2-Foot flat digging depth (retracted stick)439 cmReference
2-Foot flat digging depth (extended stick)543 cmReference
8-Foot flat digging depth (retracted stick)408 cmReference
8-Foot flat digging depth (extended stick)523 cmReference
Reach from pivot (retracted stick)561 cmReference
Reach from pivot (extended stick)662 cmReference
Loading height (retracted stick)358 cmReference
Loading height (extended stick)434 cmReference
Bucket force5438 kgReference
Dipperstick force3669 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
