Tractor · 2006Unverified

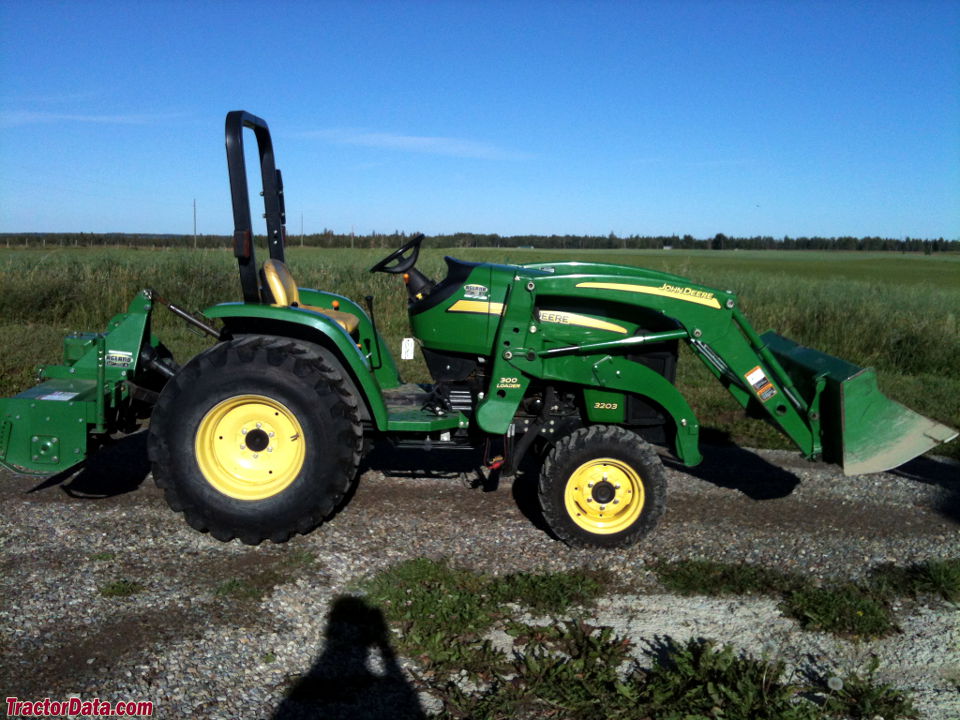

John Deere 3203
John Deere 3203 — Compact Utility tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1224 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine (gross)23.9 kWReference
Yanmar 3TNV84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
EmissionsTier IIReference
Rated Power (gross)23.9 kWReference
Air cleanerdry with safety elementReference
Compression19:1Reference
Rated RPM2800Reference
Idle RPM950-2975Reference
Operating RPM950-2975Reference
Torque100.1 NmReference
Torque RPM1680Reference
Starter volts12Reference
Starter power1.2 kWReference
Coolant capacity5.3 LReference
Oil capacity4.3 LReference
Oil change200 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Hydraulic system25.7 LReference
Typeopen centerReference
Capacity25.7 LReference
Pressure148.2 barReference
Valves2Reference
Pump flow28.8 lpmReference
Total flow50.3 lpmReference
Steering flow21.6 lpmReference
Steering press.103.4 barReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)974 kgReference
Rear lift (at 24"/610mm)847 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540Reference
Engine RPM540@2400Reference
Capacities
Fuel43.5 LReference
Dimensions
Wheelbase172 cmReference
Weight1224 kgReference
Front tire25x8.50-14Reference
Rear tire15-19.5Reference
Ag front25x8.50-14Reference
Ag rear15-19.5Reference
Length305 cmReference
Width134 cmReference
Width175 cmReference
Height (hood)138 cmReference
Height (ROPS)210 cmReference
1224 kgReference
Max Drawbar400 kgReference
Max front axle1450 kgReference
Max rear axle1814 kgReference
John Deere 3203 attachments
front-end loaderReference
3203 Serial Numbers
2006LV3203H190001Reference
2007LV3203H394001Reference
2008LV3203H496001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps75Reference
Battery CCA500Reference
Battery volts12Reference
Battery Group22NFReference
Attachment overview
Mowing attachments listed for the 3203 included 4-, 5-, and 6-foot rotary cutters; plus the 261 and 272 rear-mount mowers. The 655 and 665 tillers were also available.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
