Tractor · 1998Unverified

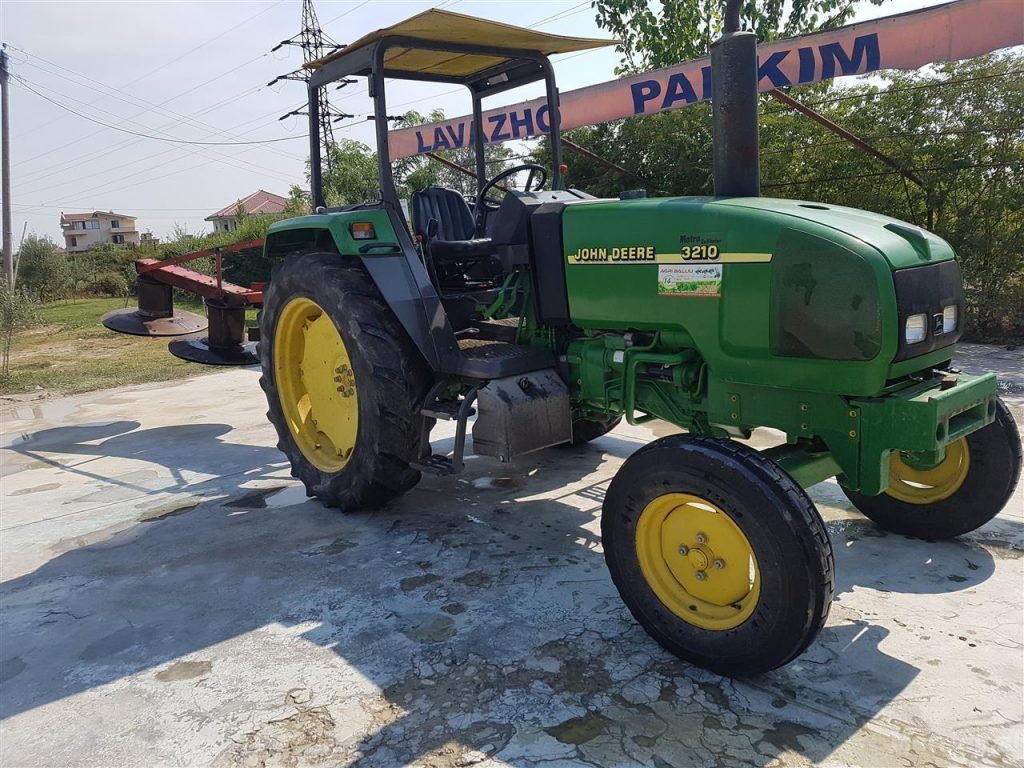

John Deere 3210
John Deere 3210 — Utility tractor · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
3329 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat.Reference
Engine
John Deere 3.9L 4-cylReference
Fuel tank115.1 LReference
Engine (net)48.5 kWReference
John DeereReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Rated Power (net)48.5 kWReference
Rated RPM2150Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchronizedReference
20-speed power shiftReference
TypesynchronizedReference
Gears20 forward and reverseReference
TransmissionTwinshiftReference
Typepower shiftReference
PTO & Hydraulics
Pump flow51.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2810 kgReference
Rear lift3749 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase240 cmReference
Weight3329 kgReference
Front tire11.2R28Reference
Rear tire13.6R36Reference
Standard tires (ag)Front: 11.2R28. Rear: 13.6R36Reference
Length388 cmReference
Height (cab)245 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
