Tractor · 1998Unverified

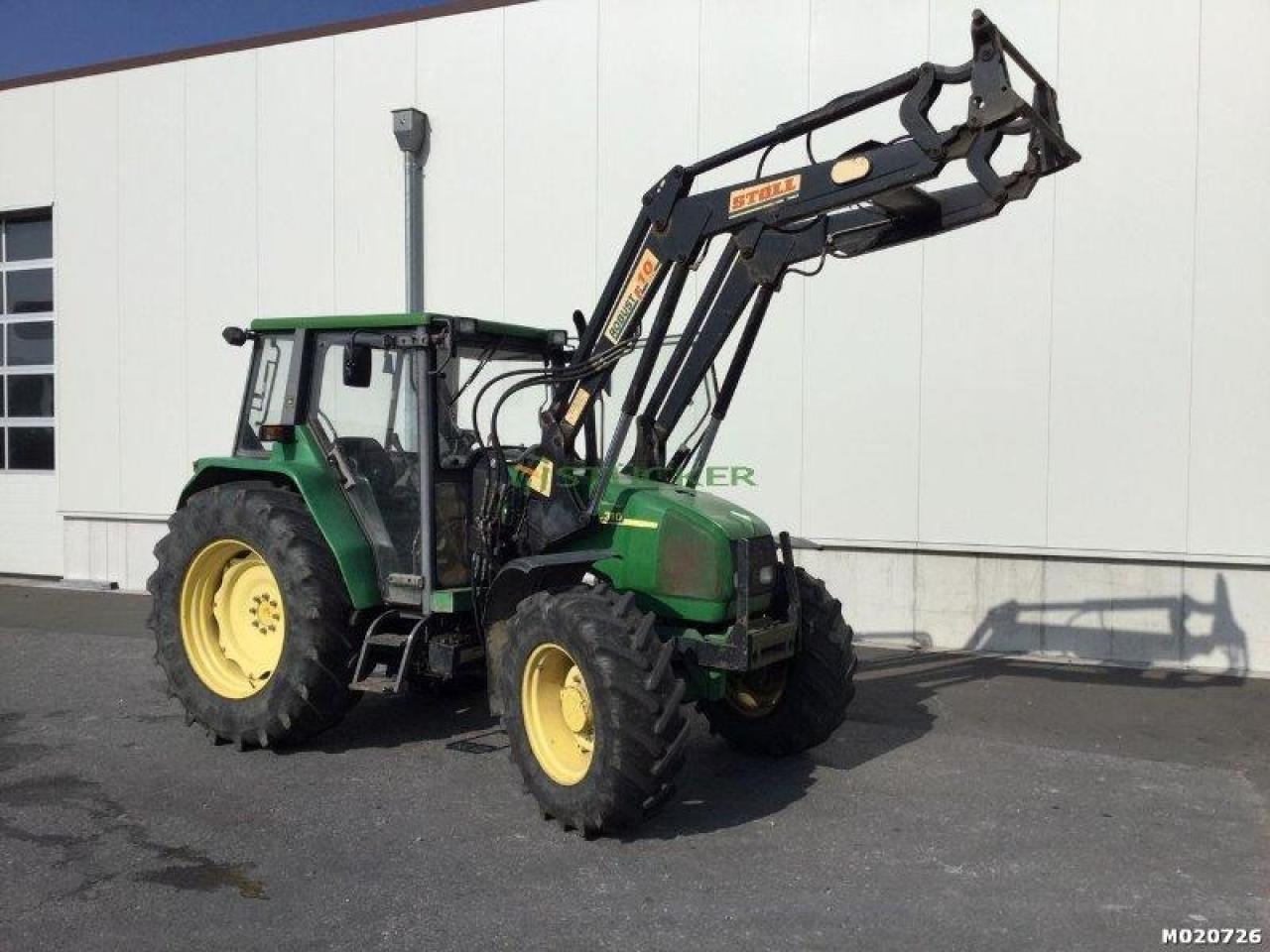

John Deere 3310
John Deere 3310 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3424 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat.Reference
Engine
John Deere 4.5L 4-cylReference
Fuel tank115.1 LReference
Engine (net)55.9 kWReference
John DeereReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)55.9 kWReference
Rated RPM2050Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchronizedReference
20-speed power shiftReference
TypesynchronizedReference
Gears20 forward and reverseReference
TransmissionTwinshiftReference
Typepower shiftReference
PTO & Hydraulics
Pump flow51.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4030 kgReference
Rear lift5110 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase240 cmReference
Weight3424 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length406 cmReference
Height (cab)254 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
