John Deere 3320
John Deere 3320 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2900 to 3570 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference

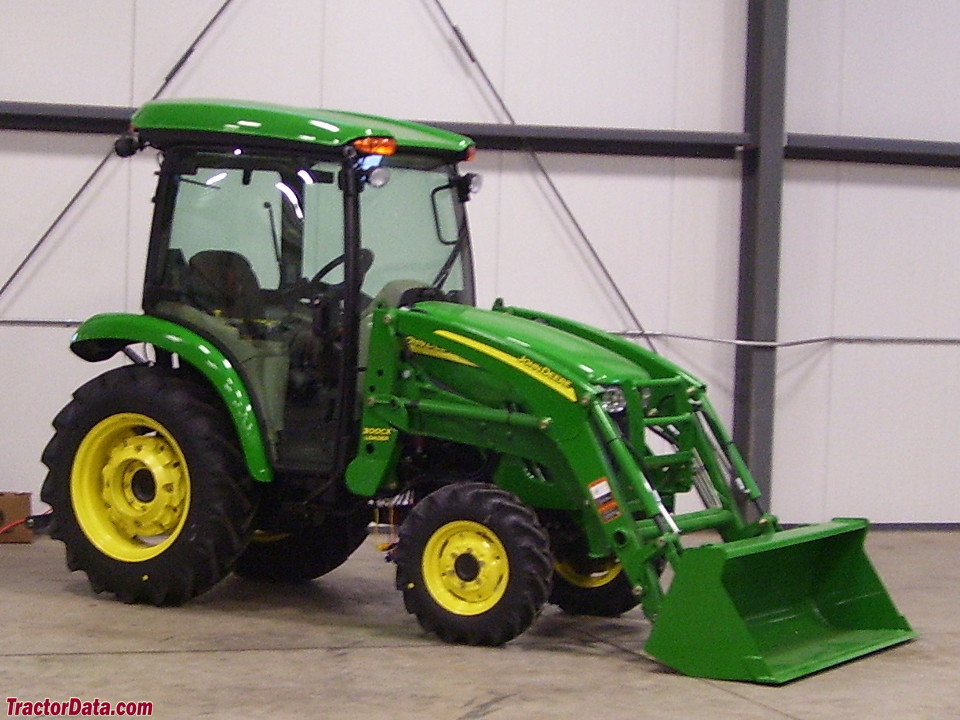

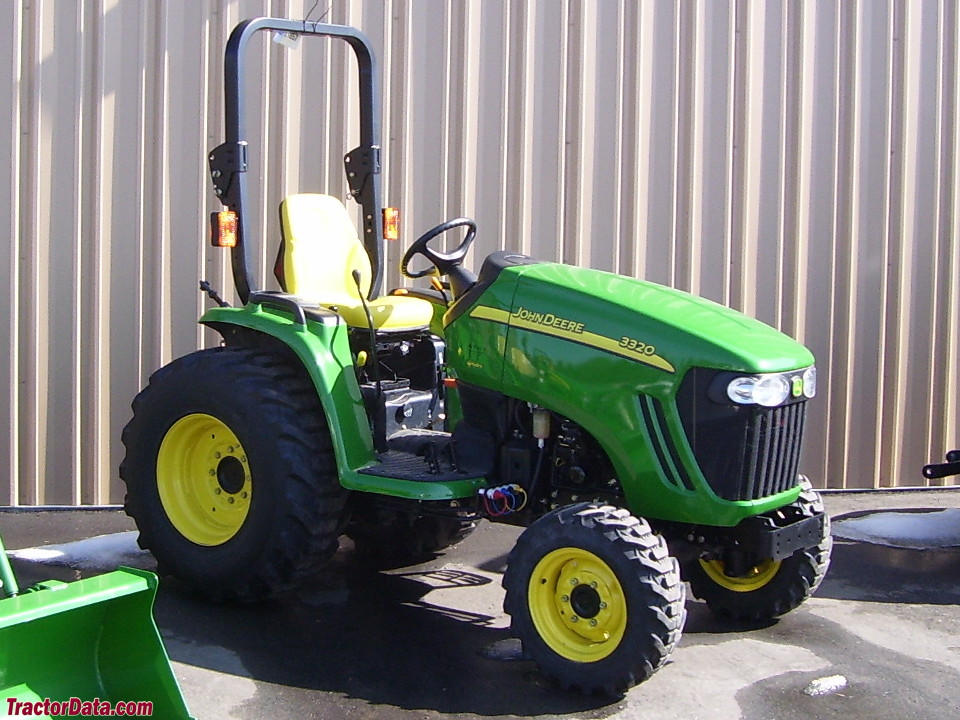

Two-post foldable ROPS. Cab optional.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Engine24.2 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power24.2 kWReference
Fuel systemdirect injectionReference
Compression18.5:1Reference
Rated RPM2600Reference
Torque100.2 NmReference
Torque RPM1560Reference
Starter volts12Reference
Oil capacity4.8 LReference
ROPS Coolant capacity5.3 LReference
Cab Coolant capacity7.0 LReference
Transmission
12-speed partially synchronized with power shuttleReference
hydrostaticReference
TransmissionPowrReverserReference
Typepartially synchronized with power shuttleReference
Gears12 forward and reverseReference
Clutch112.5mm wet discReference
Standard transmission, not available with cab. Four speeds with three ranges and reverser lever. Speed changes are synchronized with clutch pedal. Tractor must be stopped, and clutch used, to shift range. Left-hand reverser may be used without clutching.Reference
TransmissionSauer-Danfoss eHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Controlled by two foot pedals and range shift lever. Tractor must be stopped before shifting ranges. Cruise control standard. SpeedMatch allows maximum speed to be limited. MotionMatch allows acceleration rate to be set. LoadMatch allows engine RPMs to be set, tractor will adjust speed to maintain RPMs.Reference
TransmissioneHydro AutoHSTReference
AutoHST provides an automobile-style control to the eHydro transmission. A single foot pedal controls engine RPMs and transmission speed, with a column-mounted shifter to select forward, neutral, or reverse.Reference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
Hydraulic system25.7 LReference
Hydraulic system23.8 LReference
Typeopen centerReference
Capacity25.7 LReference
Capacity23.8 LReference
Valves5Reference
Pump flow32.6 lpmReference
Total flow52.6 lpmReference
Steering flow20.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1147 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2100Reference
Capacities
ROPS Fuel51.1 LReference
Cab Fuel44.7 LReference
Dimensions
Wheelbase172 cmReference
Weight2900 to 3570 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight474 kgReference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14-20Reference
Lawn/turf front25x10.5LL-15Reference
Lawn/turf rear41x18LL-16.1Reference
Industrial front25x8.5-14Reference
Industrial rear15-19.5Reference
Industrial front27x8.5-15Reference
Industrial rear43x16-20Reference
Length305 cmReference
Width133 cmReference
ROPS Weight1315 kgReference
Cab Weight1619 kgReference
Rear tread103/115/124/134/143 cmReference
John Deere 3320 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
3320 Serial Numbers
2005100001 (hydro)Reference
2006230001 (hydro)Reference
2007330001 (hydro)Reference
2008420001 (hydro)Reference
2009500001 (hydro)Reference
2010600001 (hydro)Reference
2011710001 (hydro)Reference
2012810001 (hydro)Reference
2013910001 (hydro)Reference
2005100001 (gear)Reference
2006240001 (gear)Reference
2007340001 (gear)Reference
2008427001 (gear)Reference
2009504001 (gear)Reference
2010604001 (gear)Reference
2011710001 (gear)Reference
2012810001 (gear)Reference
2013910001 (gear)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
ROPS Charging amps40Reference
Cab Charging amps75Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
John Deere 300X loaderReference
John Deere 300CX loaderReference
BackhoeReference
60" Mower deck
Typemid-mount John DeereReference
Type3-bladeReference
Cutting width152 cmReference
John Deere 47 Backhoe
Backhoe typeJohn Deere 47 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
John Deere 3320 Height
Hood144 cmReference
ROPS236 cmReference
Cab227 cmReference
Speeds
With 11.2-24 rear tires.Reference
