Tractor · 1995Unverified

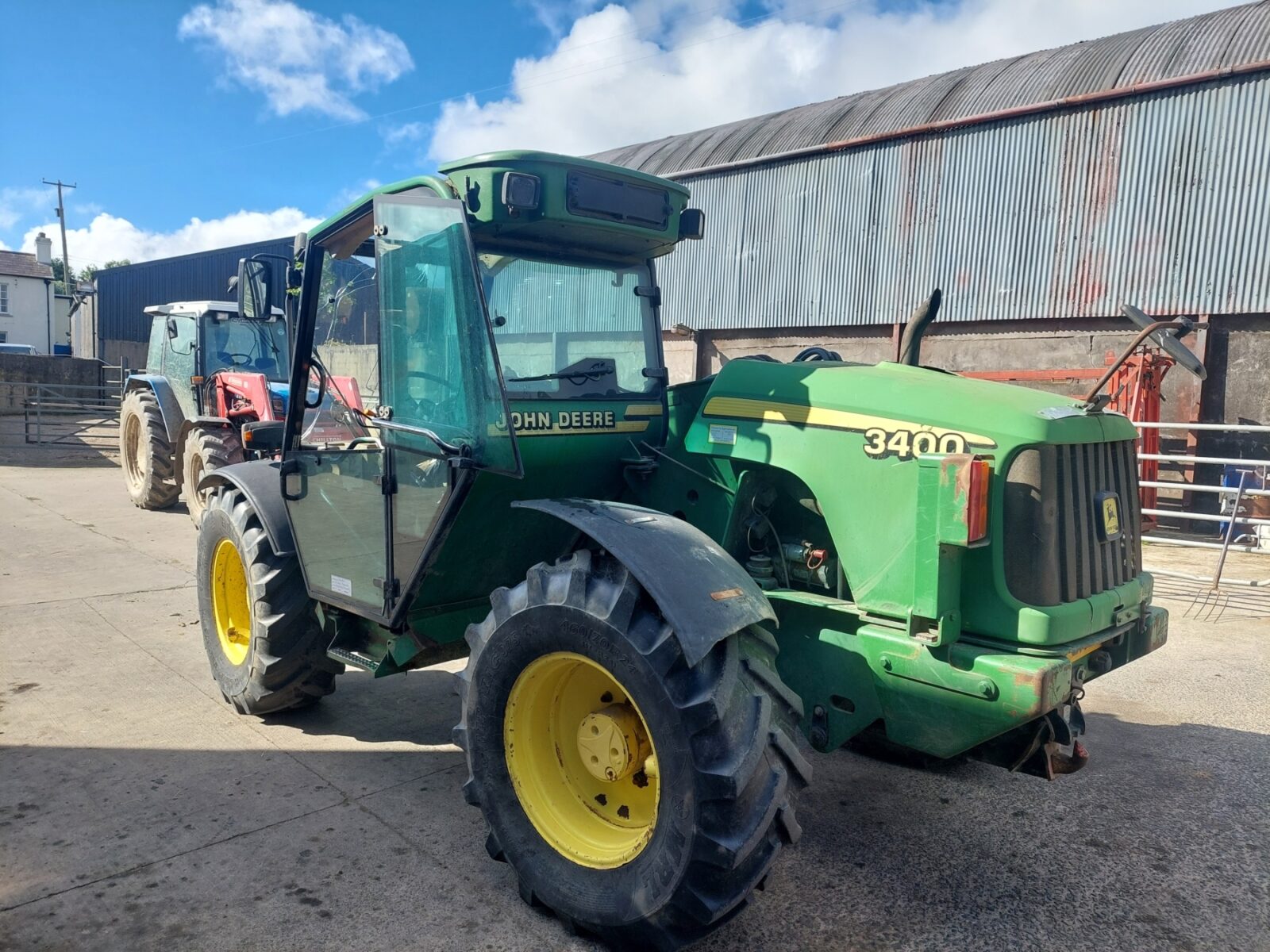

John Deere 3400
John Deere 3400 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
3480 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. Optional deluxe X Cab.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank115.1 LReference
Fuel tank145.0 LReference
Engine (net)63.4 kWReference
John Deere 4039TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Rated Power (net)63.4 kWReference
Rated RPM2100Reference
Torque310.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speed synchronizedReference
20-speed synchronizedReference
20-speed two-speed power shiftReference
TypesynchronizedReference
Gears10 forward and reverseReference
Five synchronized gears in two ranges with synchronized shuttle.Reference
Gears20 forward and reverseReference
Optional mechanical splitter doubles the numbers of speeds in the base transmission. Clutch must be used with mechanical splitter. Also available with an optional creeper range, providing 30 total speeds in each direction.Reference
TransmissionTwinshiftReference
Typetwo-speed power shiftReference
The Twinshift provides a push-button splitter to the base transmission.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Pump flow51.9 lpmReference
Steering flow26.5 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift4568 kgReference
Rear PTOindependentReference
3400 ClutchmechanicalReference
3400X ClutchhydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Weight3480 kgReference
Width185 cmReference
3400 Height (cab)248 cmReference
3400X Height (cab)266 cmReference
Shipping weight3480 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Battery AH105Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
