Tractor · 1998Unverified

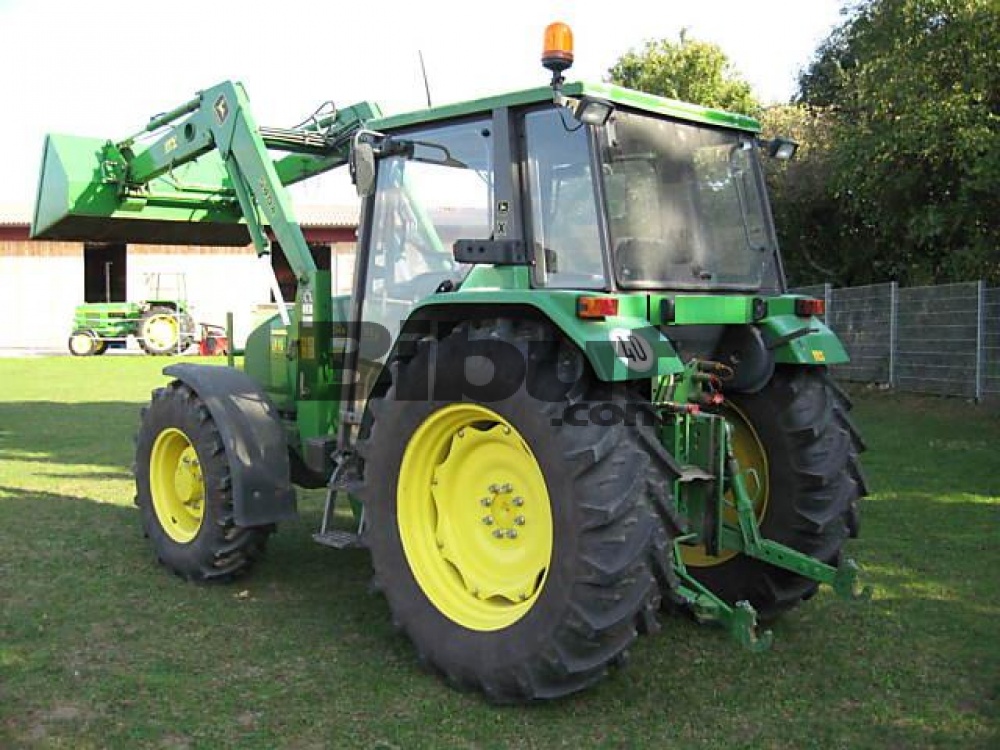

John Deere 3410
John Deere 3410 — Utility tractor · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
3470 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat.Reference
Engine
John Deere 4.5L 4-cylReference
Fuel tank115.1 LReference
Engine (net)63.4 kWReference
John DeereReference
turbochargedReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)63.4 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchronizedReference
20-speed power shiftReference
TypesynchronizedReference
Gears20 forward and reverseReference
TransmissionTwinshiftReference
Typepower shiftReference
PTO & Hydraulics
Pump flow51.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift5110 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase240 cmReference
Weight3470 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
Length406 cmReference
Height (cab)254 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
