Industrial Tractor · 1965Unverified
John Deere 350
John Deere 350 — Industrial Crawler tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
7825 to 7895 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Industrial Crawler tractorReference
DrivecrawlerReference
Steeringclutch-brake systemReference
Contracting band brakesReference
Open operator station.Reference
Variants
350crawlerReference

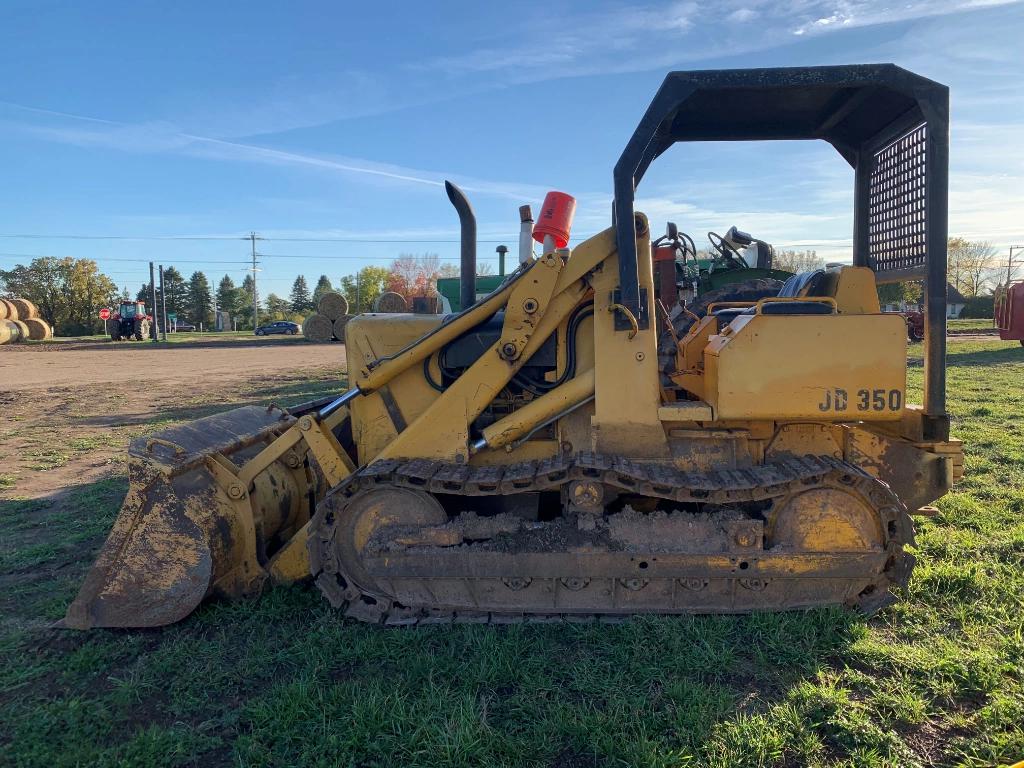

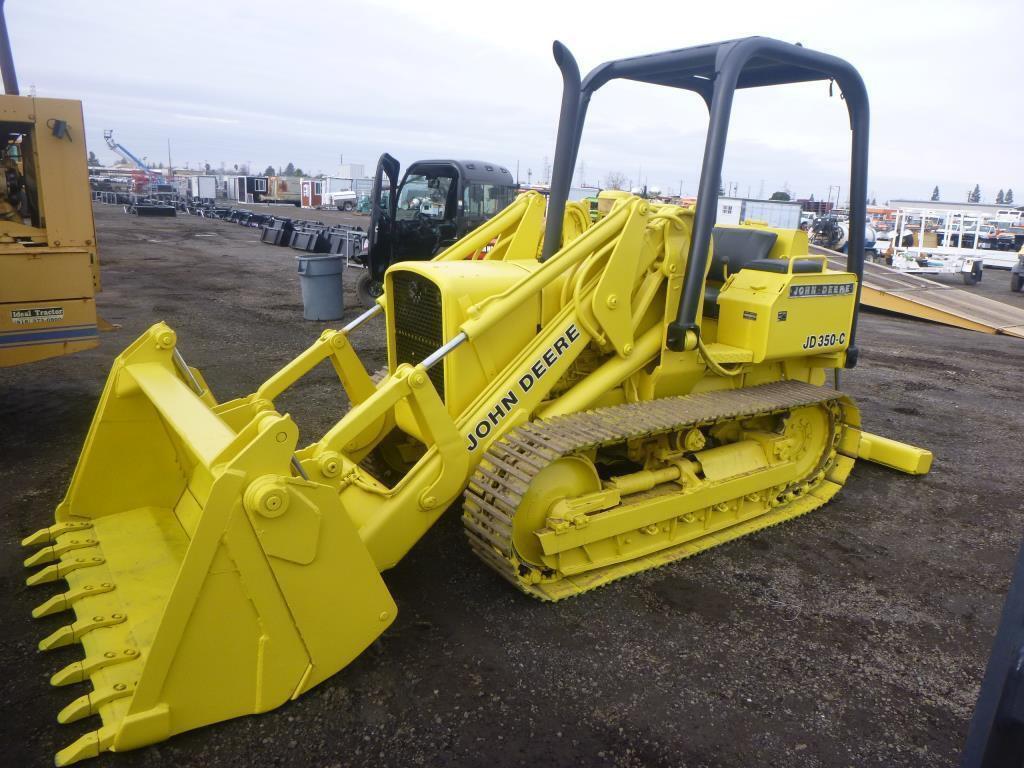

350CLcrawler-loaderReference
Engine
John Deere 2.5L 3-cyl dieselReference
John Deere 2.2L 3-cyl gasolineReference
Fuel tank83.3 LReference
Engine (gross)34.3 kWReference
Engine (net)31.3 kWReference
Engine31.3 kWReference
Drawbar (claimed)22.4 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke98 x 110 mmReference
Power (net)31.3 kWReference
Power (gross)34.3 kWReference
Air cleanerdryReference
Compression16.7:1Reference
Rated RPM2500Reference
Torque149.2 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity11.4 LReference
gasolineReference
Displacement2.2 LReference
Bore/Stroke98 x 98 mmReference
Power31.3 kWReference
Compression7.7:1Reference
Transmission
4-speed gearReference
4-speed shuttleReference
TypegearReference
Gears4 forward and 1 reverseReference
Oil capacity8.5 LReference
TypeshuttleReference
Gears4 forward and reverseReference
PTO & Hydraulics
Total flow56.8 lpmReference
Total flow94.6 lpmReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Weight7825 to 7895 poundsReference
10-inch tracksReference
Weight1353 kgReference
Weight1589 kgReference
Length246 cmReference
Length251 cmReference
6300 72 dozer length335 cmReference
6300 90 dozer length335 cmReference
6305 dozer length342 cmReference
6310 dozer length339 cmReference
Width152 cmReference
Height (hood)132 cmReference
Height (exhaust)193 cmReference
Gas Shipping weight3549 kgReference
Diesel Shipping weight3581 kgReference
Ground clearance33 cmReference
Gauge121 cmReference
John Deere 350 attachments
bladeReference
backhoeReference
350 Serial Numbers
Location:Serial number plate located on the front of the seat frame of the John Deere 350.Reference
196510001Reference
196616184Reference
196742485Reference
196864993Reference
196988281Reference
1970102137Reference
FAQ: How to read a serial number table.Reference
Attachment overview
BladeReference
BackhoeReference
John Deere 93A Backhoe
Backhoe typeJohn Deere 93A BackhoeReference
Transport height335 cmReference
Digging depth431 cmReference
2-Foot flat digging depth416 cmReference
Reach from pivot511 cmReference
Loading height292 cmReference
Bucket Rotation163°Reference
Swing Arc190°Reference
Bucket force4399 kgReference
John Deere 95A Backhoe
Backhoe typeJohn Deere 95A BackhoeReference
Transport height335 cmReference
Digging depth431 cmReference
2-Foot flat digging depth416 cmReference
Reach from pivot511 cmReference
Loading height292 cmReference
Swing Arc180°Reference
Bucket force4399 kgReference
John Deere 350 Tracks
Width25 cmReference
Length on ground175 cmReference
Area on ground0.9 m²Reference
1904 width30 cmReference
1904 length on ground175 cmReference
1904 area on ground105.0 m²Reference
1904 ground pressure4.8 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
