Tractor · 2005Unverified

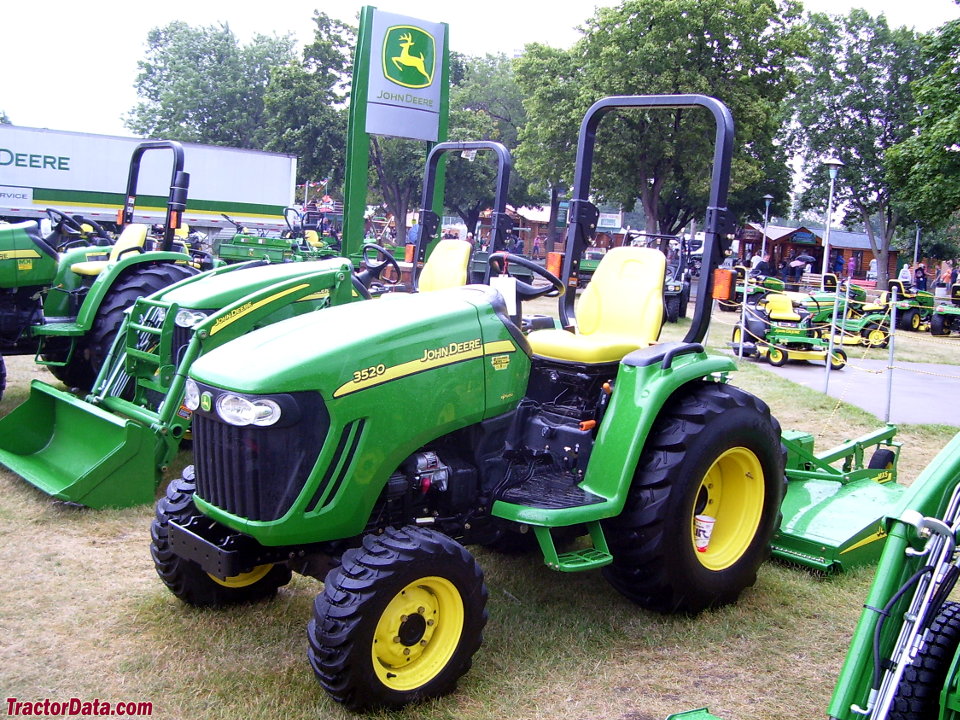

John Deere 3520

Name: John Deere 3520
Brand: John Deere

John Deere 3520 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.

The John Deere 3520 is a 30 hp tractor model, positioned at the lighter end of its class. It was manufactured from 2005 to 2013. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 2900 to 3570 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Max power

37 hp

Weight

2900 to 3570 pounds

Catalogue coverage

Variants represented

Richest spec table

160 rows

Recorded power

30 hp

Recorded weight

474 kg

Transmissions

12-speed partially synchronized with power shuttle

Production years

2005-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Four-wheel driveReference

SteeringpowerReference

Wet disc brakesReference

Two-post foldable ROPS. Cab optional.Reference

Engine

Yanmar 1.5L 3-cyl dieselReference

Engine27.6 kWReference

Yanmar 3TNV84TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power27.6 kWReference

Fuel systemdirect injectionReference

Compression18.5:1Reference

Rated RPM2600Reference

Torque102.2 NmReference

Torque RPM1560Reference

Starter volts12Reference

Oil capacity4.8 LReference

ROPS Coolant capacity5.3 LReference

Cab Coolant capacity7.0 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 rpmReference

Engine torque at rated speed34.2 kgReference

Bore and stroke3.3x3.54 inchesReference

Compression ratio18.5:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed partially synchronized with power shuttleReference

hydrostaticReference

TransmissionPowrReverserReference

Typepartially synchronized with power shuttleReference

Gears12 forward and reverseReference

Clutch112.5mm wet discReference

Standard transmission, not available with cab. Four speeds with three ranges and reverser lever. Speed changes are synchronized with clutch pedal. Tractor must be stopped, and clutch used, to shift range. Left-hand reverser may be used without clutching.Reference

TransmissionSauer-Danfoss eHydroReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Controlled by two foot pedals and range shift lever. Tractor must be stopped before shifting ranges. Cruise control standard. SpeedMatch allows maximum speed to be limited. MotionMatch allows acceleration rate to be set. LoadMatch allows engine RPMs to be set, tractor will adjust speed to maintain RPMs.Reference

TransmissioneHydro AutoHSTReference

AutoHST provides an automobile-style control to the eHydro transmission. A single foot pedal controls engine RPMs and transmission speed, with a column-mounted shifter to select forward, neutral, or reverse.Reference

Transmission TypeE-HSTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)22.4 kWReference

Hydraulic system25.7 LReference

Hydraulic system23.8 LReference

Typeopen centerReference

Capacity25.7 LReference

Capacity23.8 LReference

Valves5Reference

Pump flow32.6 lpmReference

Total flow52.6 lpmReference

Rear TypeIReference

Rear lift1147 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOoptionalReference

Mid PTO Type2100Reference

Capacities

ROPS Fuel51.1 LReference

Cab Fuel44.7 LReference

Fuel tank51.1 LReference

Crankcase oil volume5.1 qtsReference

Dimensions

Wheelbase172 cmReference

Weight2900 to 3570 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Weight474 kgReference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.5-15Reference

Lawn/turf rear41x14-20Reference

Lawn/turf front25x10.5LL-15Reference

Lawn/turf rear41x18LL-16.1Reference

Industrial front25x8.5-14Reference

Industrial rear15-19.5Reference

Industrial front27x8.5-15Reference

Industrial rear43x16-20Reference

Length305 cmReference

Width133 cmReference

Height (hood)144 cmReference

Height (ROPS)236 cmReference

ROPS Weight1315 kgReference

Cab Weight1619 kgReference

Clearance (rear axle)30 cmReference

Rear tread103/115/124/134/143 cmReference

John Deere 3520 attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

3520 Serial Numbers

2005100001 (hydrostatic)Reference

2006258001 (hydrostatic)Reference

2007358001 (hydrostatic)Reference

2008450001 (hydrostatic)Reference

2009512001 (hydrostatic)Reference

2010612001 (hydrostatic)Reference

201171001 (hydrostatic)Reference

2012740001 (hydrostatic)Reference

2013910001 (hydrostatic)Reference

2005100001 (gear)Reference

2006266001 (gear)Reference

2007366001 (gear)Reference

2008460001 (gear)Reference

2009514001 (gear)Reference

2010614001 (gear)Reference

2011710001 (gear)Reference

2012------Reference

2013910001 (gear)Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging amps40Reference

Charging amps55 (optional)Reference

Charging amps75 (with cab)Reference

Battery CCA500Reference

Battery volts12Reference

Total cold cranking amps500 CCAReference

Attachment overview

60" mid-mount mower deckReference

John Deere 300X loaderReference

John Deere 300CX loaderReference

BackhoeReference

60" Mower deck

Typemid-mount John DeereReference

Type3-bladeReference

Cutting width152 cmReference

John Deere 47 Backhoe

Backhoe typeJohn Deere 47 BackhoeReference

2-Foot flat digging depth228 cmReference

Reach from pivot289 cmReference

Loading height177 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force909 kgReference

Speeds

With 11.2-24 rear tires.Reference

General

Make & ModelJohn DeereReference

Cruise controlAvailableReference

SCV controljoystickReference

Rollover protective structureTwo-post foldable ROPSReference

Country of manufacturerUSAReference

Power

Max Power37 hpReference

PTO

PTO Power30 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,100 RPMReference

Steering & brakes

BrakesWet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)13.9 gpmReference

Hydraulics TypeOpen CenterReference

Remote Valves5 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,147.6 kgReference

Dimensions & weight

Height Over ROPS237 cmReference

Overall Length305.3 cmReference

Overall Width133.1 cmReference

Overall weight1,315.4 kgReference

Wheels & tyres

Rear Wheel TypeAg rear:11.2-24Reference

Rear wheel tread range143.8 cmReference

Front Wheel TypeAg front: 7-14Reference

Operator station

Cab AvailabilityTRUEReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
