Tractor · 1975Unverified

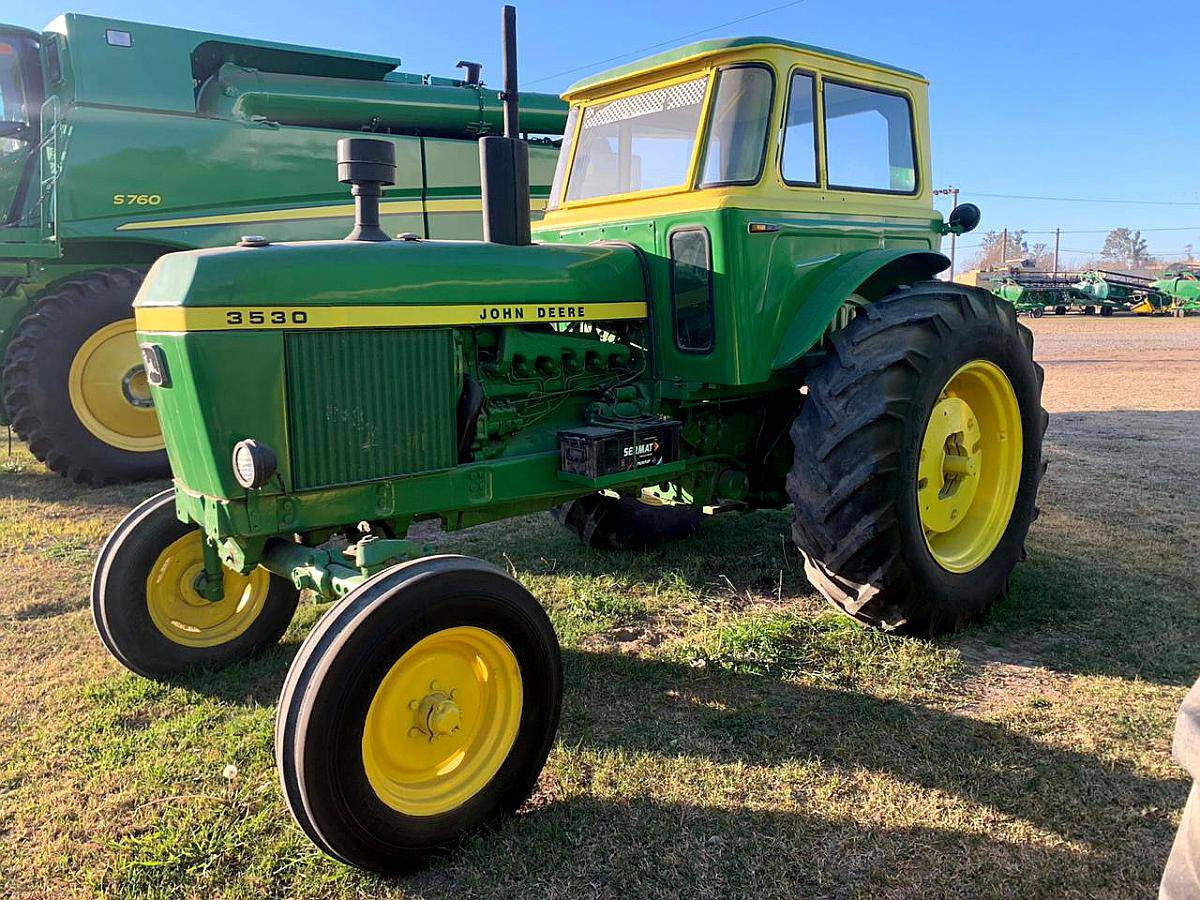

John Deere 3530
John Deere 3530 — Row-Crop tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
5474 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Rosario, ArgentinaReference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
John Deere 5.4L 6-cyl dieselReference
Engine78.3 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity20.0 LReference
Transmission
8-speedReference
TransmissionSyncro-RangeReference
Gears8 forward and 2 reverseReference
Oil capacity49.0 LReference
PTO & Hydraulics
PTO (claimed)68.5 kWReference
Hydraulic system48.8 LReference
Typeclosed centerReference
Capacity48.8 LReference
Rear TypeIIReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540Reference
Capacities
Fuel145.0 LReference
Dimensions
Wheelbase262 cmReference
Weight5474 kgReference
Front tire7.50x16Reference
Rear tire18.4x34Reference
Ag front7.50x16Reference
Ag rear18.4x34Reference
Ag rear23.1x26Reference
Length411 cmReference
Width228 cmReference
Shipping weight5474 kgReference
Ground clearance67 cmReference
Steering wheel205 cmReference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Battery volts12Reference
Battery AH110Reference
John Deere 3530 Height
Hood179 cmReference
Exhaust224 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
