Tractor · 1988Unverified

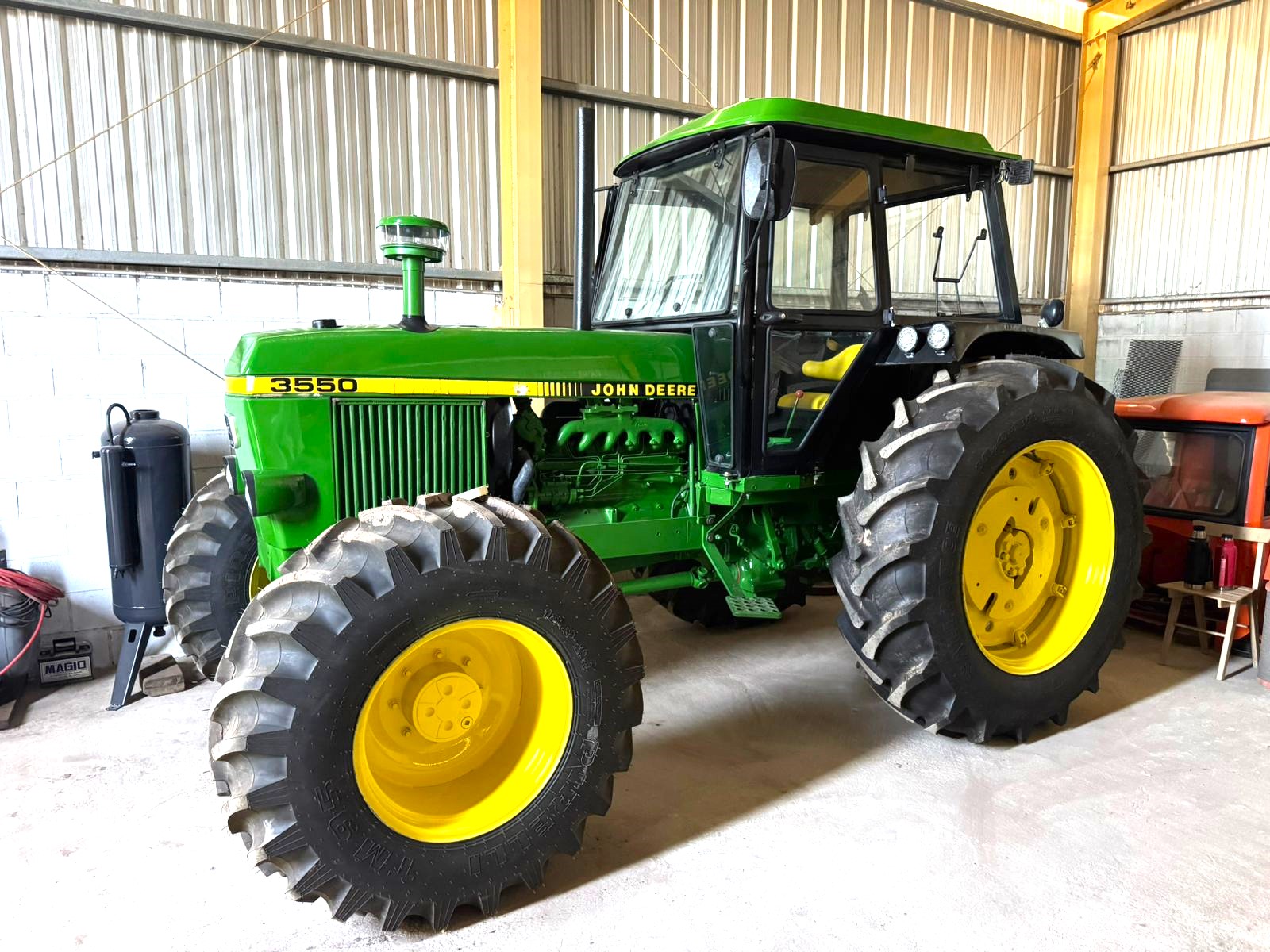

John Deere 3550

Name: John Deere 3550
Brand: John Deere

John Deere 3550 — Utility tractor · 125 hp. Reference specifications; pending source verification.

The John Deere 3550 is a high-powered tractor model, rated at 125 hp. It was produced between 1988 and 1993. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which transmits power through a 16-speed gearbox to a four-wheel drive system. It has a listed weight of 6509 kg, with an operating capacity of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

6509 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

125 hp

Recorded weight

6509 kg

Transmissions

16-speed synchromesh

Production years

1988-1993

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Rosario, ArgentinaReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station.Reference

Engine

John Deere 5.9L 6-cyl dieselReference

Fuel tank124.9 LReference

Fuel tank51.1 LReference

Engine93.2 kWReference

John DeereReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke107 x 110 mmReference

Power93.2 kWReference

Fuel systemdirect injectionReference

Compression17.4:1Reference

Rated RPM2300Reference

Torque96.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity11.5 LReference

Coolant capacity18.9 LReference

Transmission

16-speed synchromeshReference

TypesynchromeshReference

Gears16 forward and 4 reverseReference

Clutchdry discReference

PTO & Hydraulics

Pump flow43.9 lpmReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase255 cmReference

4WD Wheelbase258 cmReference

Weight6509 kgReference

Front tire16.9x24Reference

Rear tire18.4x38Reference

Ag front16.9x24Reference

Ag rear18.4x38Reference

Length467 cmReference

Width215 cmReference

Height288 cmReference

Ground clearance34 cmReference

Front tread155 to 198 cmReference

Rear tread143 to 220 cmReference

Electrical

Charging systemalternatorReference

Charging amps28Reference

Charging volts12Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
