Tractor · 1984Unverified

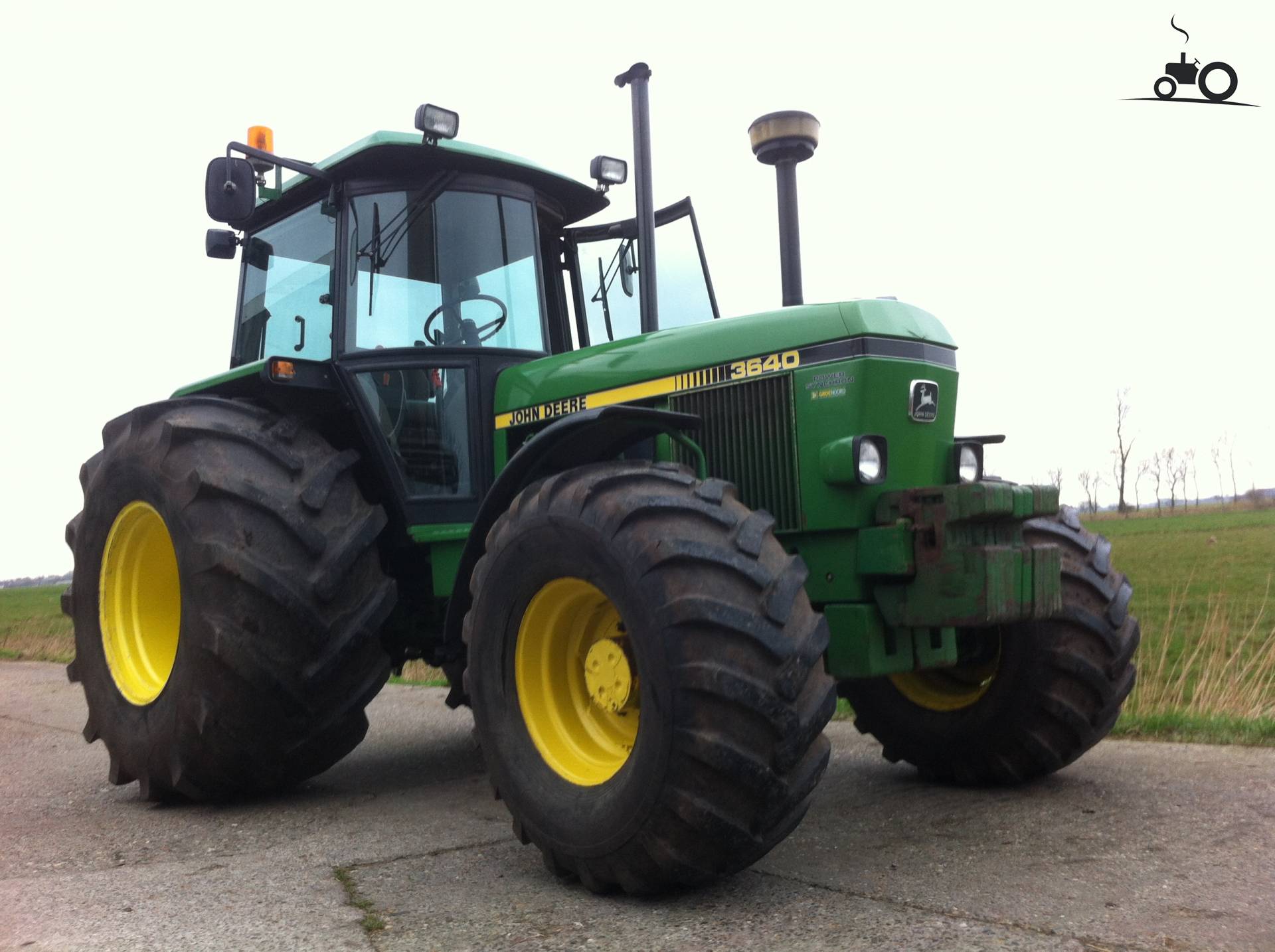

John Deere 3640

Name: John Deere 3640
Brand: John Deere

John Deere 3640 — Utility tractor · 117 hp. Reference specifications; pending source verification.

The John Deere 3640 is a tractor with an approximate engine power rating of 117 horsepower, which falls within the mid-range category for its class. It was manufactured from 1984 to 1987. This model features a 6-cylinder diesel liquid-cooled engine, combined with a four-wheel drive system and a powershift transmission. Its operating weight is specified as 10564 to 12929 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

117 hp

Weight

10564 to 12929 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

117 hp

Transmissions

16-speed partial power shift

Production years

1984-1987

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockrear standardReference

Power steeringReference

Hydraulic wet disc brakesReference

Sound-Gard (SG2) cab.Reference

Engine

John Deere 5.9L 6-cyl dieselReference

Engine (gross)87.2 kWReference

John DeereReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke106 x 110 mmReference

Power (gross)87.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression17.4:1Reference

Rated RPM2400Reference

Torque393.2 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity11.0 LReference

Coolant capacity19.0 LReference

Transmission

16-speed partial power shiftReference

TransmissionPower SynchronReference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Clutchhydraulic cerametallic dry discReference

Oil capacity42.0 LReference

Four gears in two ranges, plus reverse range, with a high-low power shift.Reference

Capacities

Fuel186.2 LReference

Max capacity8019 kgReference

PTO & Hydraulics

Hydraulic system42.0 LReference

Typeclosed center constant pressureReference

Capacity42.0 LReference

Pressure170.0 barReference

Pump flow45.0 lpmReference

Pump flow84.0 lpmReference

Rear TypeII/IIIReference

Controllower-link draft sensingReference

Rear lift (at ends)5814 kgReference

Rear lift (at 24"/610mm)3597 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Engine RPM540@2175Reference

Engine RPM1000@2175Reference

Front PTOoptionalReference

Dimensions

Wheelbase259 cmReference

Weight10564 to 12929 poundsReference

Front tire12.4-28Reference

Rear tire16.9-38Reference

Standard tires (ag)Front: 12.4-28. Rear: 16.9-38Reference

Standard tires (ag)Front: 13.6-28. Rear: 18.4-38Reference

Standard tires (ag)Front: 14.9-26. Rear: 18.4-38Reference

Standard tires (ag)Front: 16.9-24. Rear: 18.4-38Reference

Length480 cmReference

Width215 cmReference

Height (cab)281 cmReference

Height (exhaust)297 cmReference

Clearance (front axle)53 cmReference

Front tread160 to 210 cmReference

Rear tread160/175/185/193/200 cmReference

Shipping4791 kgReference

Operating5864 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Batteries2Reference

Battery volts12Reference

Battery AH88Reference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
