Tractor · 2008Unverified

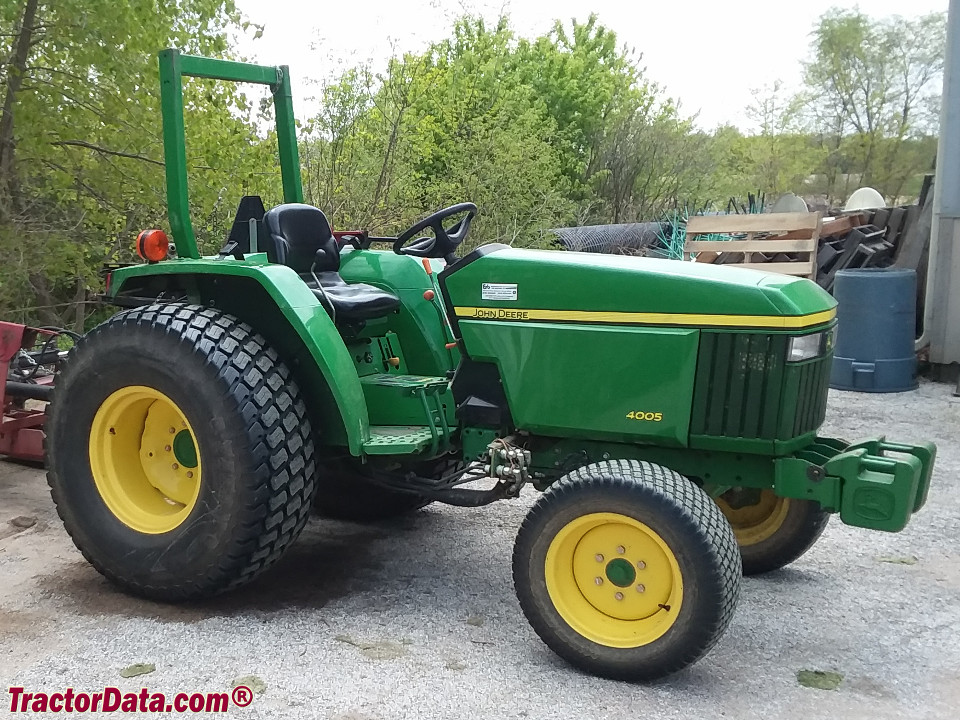

John Deere 4005
John Deere 4005 — Compact Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2954 to 3175 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $15,000 in 2009Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
ROPS. Canopy optional.Reference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine (gross)31.2 kWReference
Engine28.3 kWReference
Yanmar 4TNV88Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power28.3 kWReference
Power (gross)31.2 kWReference
Air cleanerdryReference
Pre-heatingair heaterReference
Compression19:1Reference
Rated RPM2700Reference
Starter volts12Reference
Coolant capacity5.8 LReference
Oil capacity5.3 LReference
Transmission
9-speed partially synchronizedReference
TransmissionCollar ShiftReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity26.1 LReference
Three speeds, plus reverse on gear shift lever with A, B, and C ranges. Synchronized shifting between the forward speeds using the clutch. Tractor must be stopped, and clutch used, to shift to reverse or shift ranges.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Hydraulic system26.1 LReference
Typeopen centerReference
Capacity26.1 LReference
Pressure156.0 barReference
Valves2Reference
Pump flow32.2 lpmReference
Total flow49.2 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)916 kgReference
Rear PTOcontinuousReference
Rear PTO Type540Reference
Capacities
Fuel32.2 LReference
Max capacity2374 kgReference
Dimensions
Wheelbase175 cmReference
Weight2954 to 3175 poundsReference
Front tire6.5-16Reference
Rear tire14.9-24Reference
Ag front6.5-16 (2WD)Reference
Ag front8-16 (4WD)Reference
Ag rear14.9-24Reference
Length314 cmReference
Height (hood)129 cmReference
Height (ROPS)215 cmReference
2WD Front tread122 cmReference
4WD Front tread137 cmReference
2WD Rear tread117 cmReference
4WD Rear tread116 cmReference
2WD Shipping1339 kgReference
4WD Shipping1440 kgReference
John Deere 4005 attachments
front-end loaderReference
4005 Serial Numbers
Location:Serial number plate on the rear of the John Deere 4005, below the PTO shaft.Reference
2008000100Reference
2009210001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA770Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
