Tractor · 1983Unverified

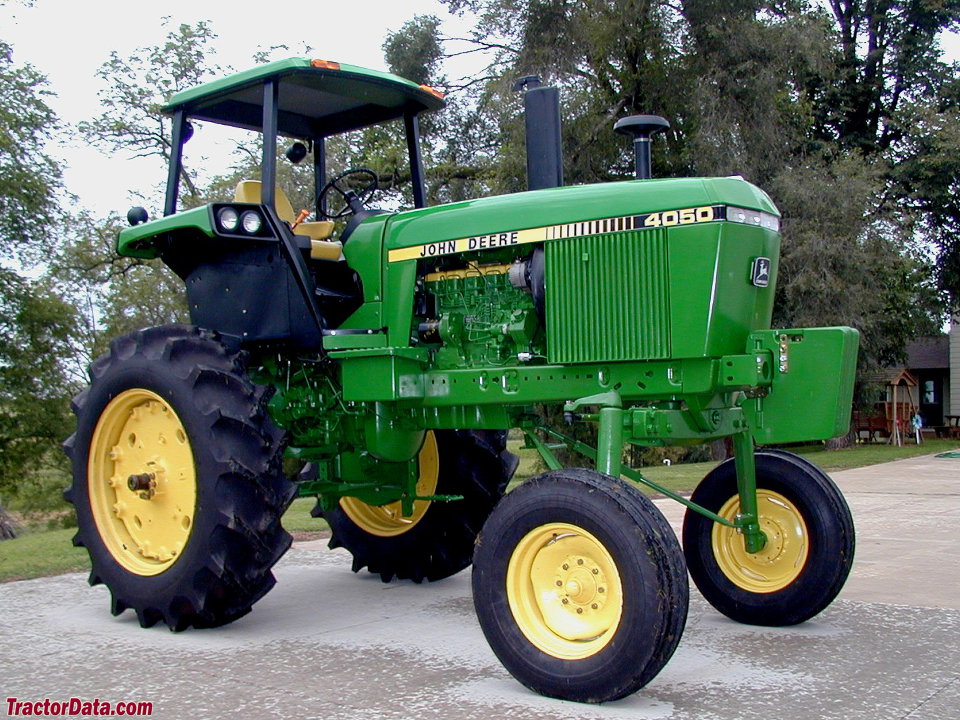

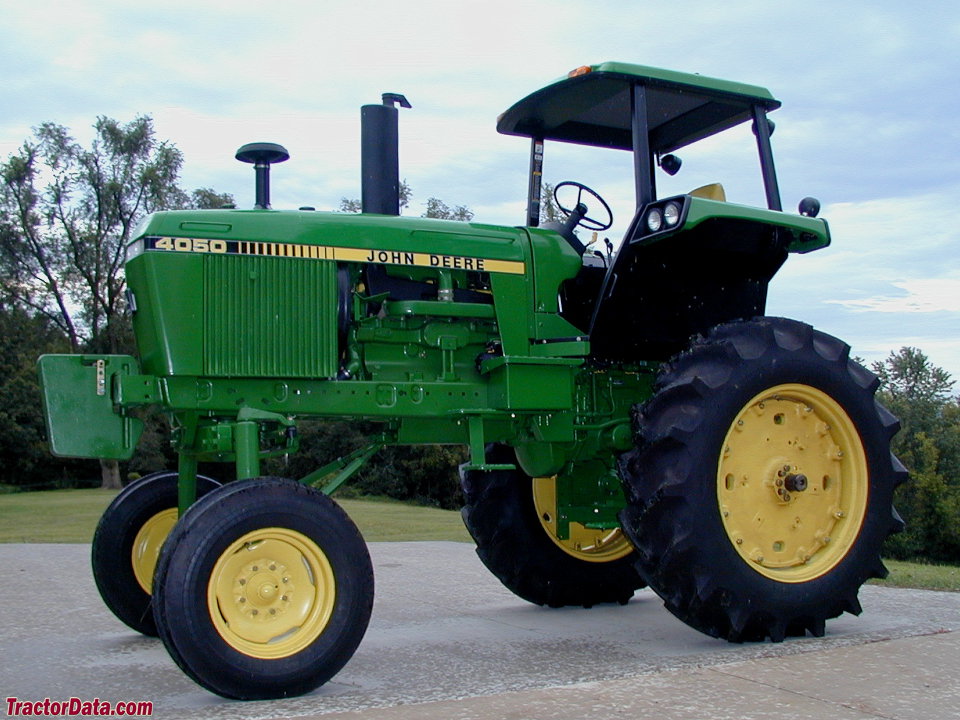

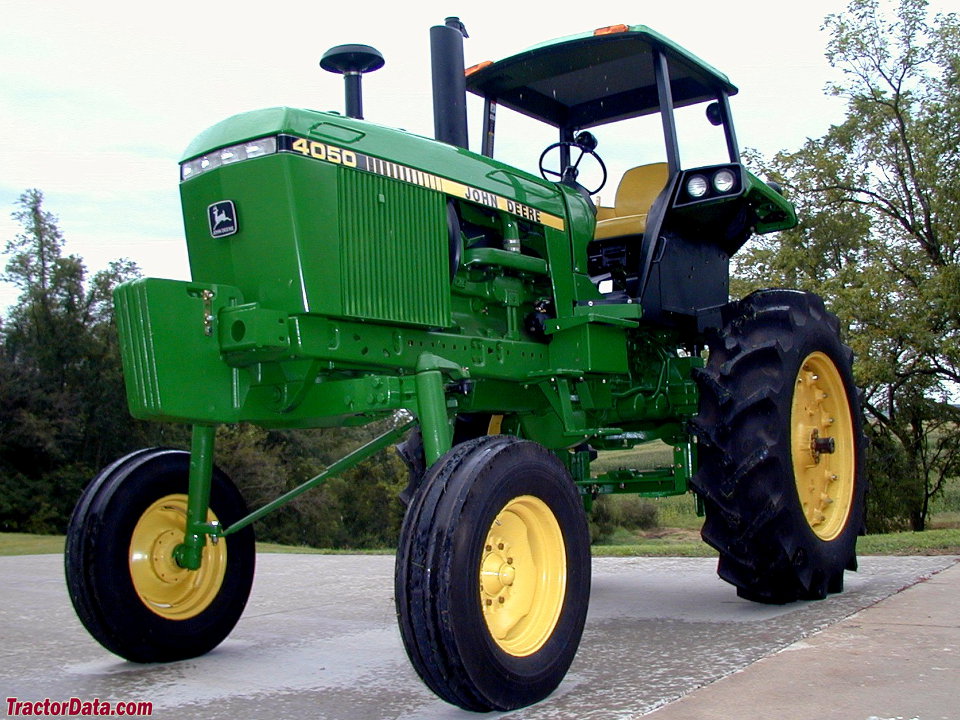

John Deere 4050 Hi-Crop
John Deere 4050 Hi-Crop — 50 Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
5762 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Total built20 (estimate)Reference
While the 4050 was initially offered in a Hi-Crop variant, this was soon discontinued because of greater demand for the larger 4250 Hi-Crop tractor. The exact date or serial number is unknown, but it appears to be prior to the introduction of the turbocharged engine in 1986. Daniel Musil did extensive research into the Deere 4050 Hi-Crop production for a series of Green Magazine articles published from August to November 2010.Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Hydrostatic wet disc brakesReference
Sound-Gard cab standard with air-conditioning. Optional four-post Roll-Gard ROPS.Reference
Variants
4050row-crop chassisReference
Engine
John Deere 7.6L 6-cyl dieselReference
Engine96.9 kWReference
Drawbar (claimed)64.9 kWReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power96.9 kWReference
Air cleanerdryReference
Compression17.0:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity19.9 LReference
Transmission
16-speed partial power shiftReference
15-speed full power shiftReference
TransmissionJohn Deere Quad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
ClutchPerma-Clutch wet discReference
Oil capacity60.6 LReference
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.Reference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
Oil capacity39.7 LReference
Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system39.7 LReference
Hydraulic system51.1 LReference
Hydraulic system60.6 LReference
Typeclosed centerReference
Capacity39.7 LReference
Capacity51.1 LReference
Capacity60.6 LReference
Pressure157.0 barReference
Valves2 to 3Reference
Pump flow100.3 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Capacities
Fuel174.1 LReference
Dimensions
Wheelbase271 cmReference
Weight5762 kgReference
Front tire7.50-20Reference
Rear tire18.4-38Reference
Ag front7.50-20Reference
Ag rear18.4-38Reference
Ag rear9.50-20Reference
Length403 cmReference
Width242 cmReference
Height (steering wheel)263 cmReference
Height (cab)323 cmReference
Operating weight5762 kgReference
Clearance (front axle)104 cmReference
Clearance (rear axle)88 cmReference
Rear axle85 mmReference
4050 Hi-Crop Serial Number Location
Serial number plate on the rear of the transmission case.Reference
4050 Hi-Crop Serial Numbers
1983001000Reference
1984003501Reference
1985005001Reference
FAQ: How to read a serial number table.Reference
Links
4050 Hi-Crop video: YouTube montage of 4050 Hi-Crop photosReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps90 (with Sound-Gard cab)Reference
Batteries2Reference
Battery volts6Reference
Battery volts12 (optional)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
