Tractor · 2014Unverified

John Deere 4052M

Name: John Deere 4052M
Brand: John Deere

John Deere 4052M — 4M Series · 51 hp. Reference specifications; pending source verification.

The John Deere 4052M is a tractor with a rating of 51 hp, positioned at the lighter end of its class. It was manufactured in 2014. Key features include a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor's operating weight is 1710 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

51 hp

Weight

1710 kg

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

51 hp

Recorded weight

1710 kg

Transmissions

12-speed power shuttle

Production years

2014-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

The 4052M Heavy-Duty uses the same front axle as the 4052R.Reference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS.Reference

Variants

4052Mbase modelReference

4052Rdeluxe modelReference

4052M HDheavy-duty front axleReference

Engine

Yanmar 2.1L 4-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)37.9 kWReference

Yanmar 4TNV86Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.1 LReference

Bore/Stroke86 x 90 mmReference

EmissionsTier IVReference

Emission controldiesel particulate filter (DPF)Reference

Rated Power (gross)37.9 kWReference

Rated RPM2600Reference

Torque168.1 NmReference

Torque RPM1690Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

hydrostaticReference

TransmissionPowrReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

TransmissioneHydroReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)30.4 kWReference

Hydro PTO (claimed)29.2 kWReference

Typeopen centerReference

Pressure172.4 barReference

Pump flow38.6 lpmReference

Total flow60.2 lpmReference

Steering flow21.6 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1419 kgReference

Rear lift (at 24"/610mm)1134 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Dimensions

Wheelbase185 cmReference

Weight1710 kgReference

Front tire8.00-16Reference

Rear tire13.6-28Reference

Weight650 kgReference

Ag front8.00-16Reference

Ag rear13.6-28Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18-20Reference

Length331 cmReference

Height (ROPS)254 cmReference

Height (cab)247 cmReference

Clearance (front axle)35 cmReference

Front tread136 cmReference

Rear tread152 cmReference

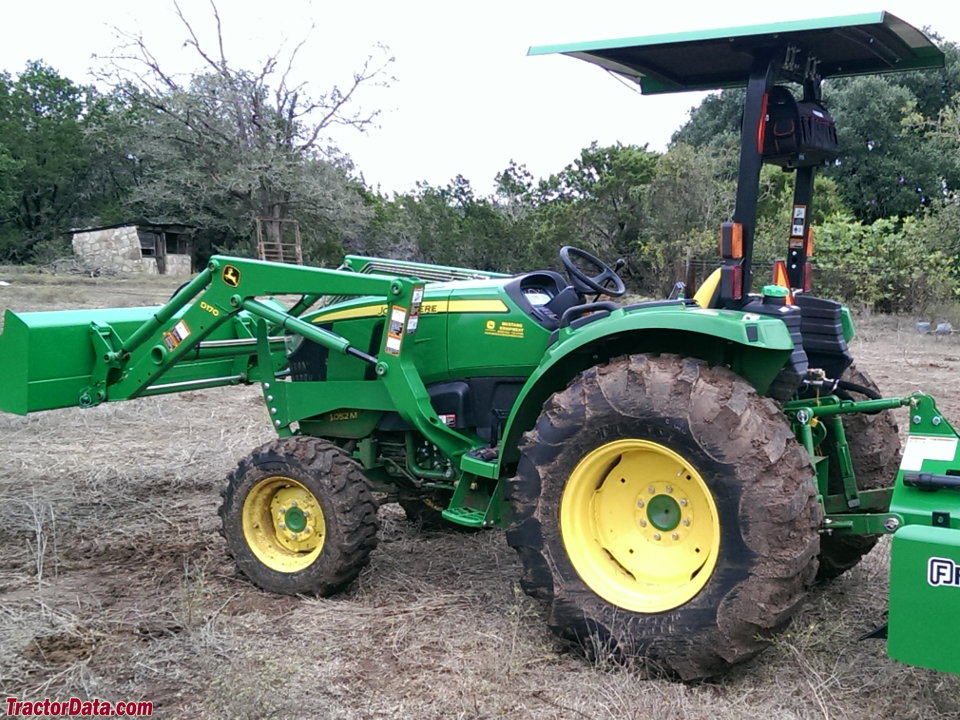

John Deere 4052M attachments

front-end loaderReference

backhoeReference

4052M Serial Number Location

Serial number plate on the right side of the 4052M tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps75Reference

Battery CCA770Reference

Battery volts12Reference

Attachment overview

John Deere D170 loaderReference

John Deere H180 loaderReference

John Deere 400E loaderReference

BackhoeReference

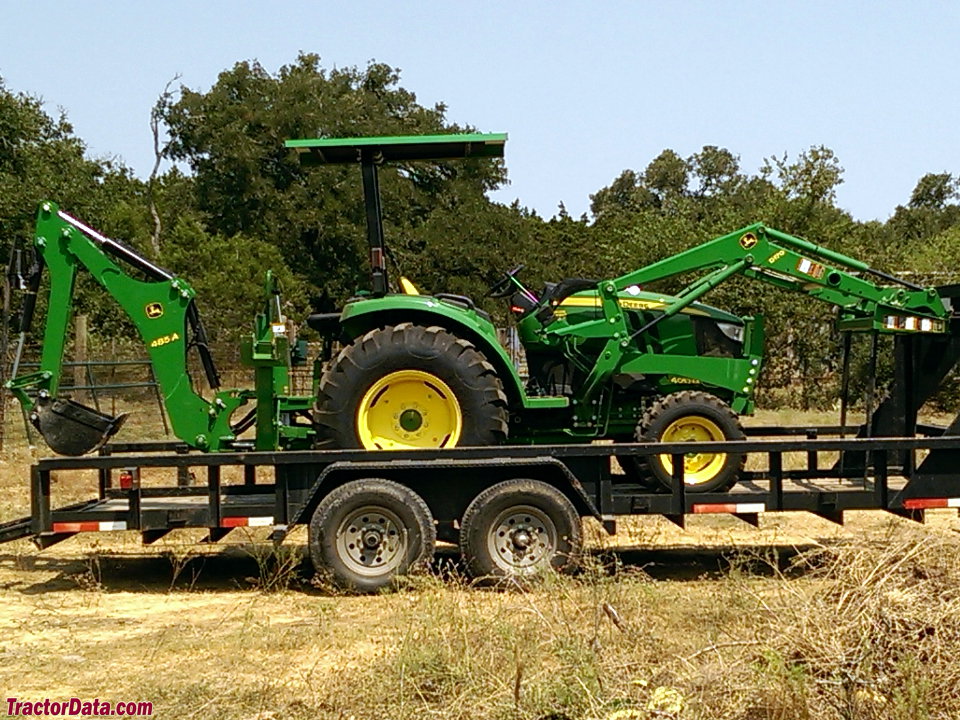

John Deere 485A Backhoe

Backhoe typeJohn Deere 485A BackhoeReference

Transport height233 cmReference

Bucket width40 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot355 cmReference

Loading height200 cmReference

Bucket Rotation180°Reference

Swing Arc170°Reference

Bucket force1701 kgReference

Dipperstick force1110 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
