John Deere 4100

Name: John Deere 4100
Brand: John Deere

John Deere 4100 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1517 to 1565 pounds

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $13,500 in 2003Reference

The Deere 4100 was available in a Narrow version which could not be equipped with a mid-PTO.Reference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Differential wet disc brakesReference

Two-post ROPS.Reference

Engine

Yanmar 1.0L 3-cyl dieselReference

Engine (gross)14.9 kWReference

Engine (net)14.2 kWReference

Yanmar 3TNE74Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke74 x 78 mmReference

Power (net)14.2 kWReference

Power (gross)14.9 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression23.5:1Reference

Rated RPM2650Reference

Idle RPM1025-2860Reference

Torque53.8 NmReference

Starter volts12Reference

Oil capacity2.2 LReference

Coolant capacity2.4 LReference

Transmission

8-speed partially synchronizedReference

hydrostaticReference

Gear688 kgReference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Oil capacity8.7 LReference

Four speeds with high, low, and reverse ranges. Gear shifts can be made while in motion using the clutch. Tractor must be stopped to shift ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity12.5 LReference

Two-range hydrostatic with foot pedals and cruise control. Tractor must be stopped to shift ranges.Reference

PTO & Hydraulics

Hydro PTO (claimed)11.9 kWReference

Gear PTO (claimed)12.7 kWReference

Gear Hydraulic system9.5 LReference

Hydro Hydraulic system12.5 LReference

Typeopen centerReference

Gear Capacity9.5 LReference

Hydro Capacity12.5 LReference

Pressure166.7 barReference

Total flow19.3 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)421 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOindependentReference

Gear Clutchmechanical dry discReference

Hydro Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2100Reference

Capacities

Fuel22.0 LReference

Front axle3.4 LReference

Dimensions

Wheelbase147 cmReference

Weight1517 to 1565 poundsReference

Front tire5.00-12Reference

Rear tire9.5-16Reference

Ag front5.00-12Reference

Ag rear9.5-16Reference

Ag rear8.00-16 (Narrow)Reference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear315x75D-15Reference

Industrial front23x8.50-12Reference

Industrial rear12.00x16.5Reference

Length261 cmReference

Width109 cmReference

Width91 cmReference

Height (hood)110 cmReference

Height (ROPS)200 cmReference

Clearance (front axle)32 cmReference

Clearance (front axle)31 cmReference

Hydro709 kgReference

Max Drawbar258 kgReference

Max front axle449 kgReference

Max rear axle899 kgReference

John Deere 4100 attachments

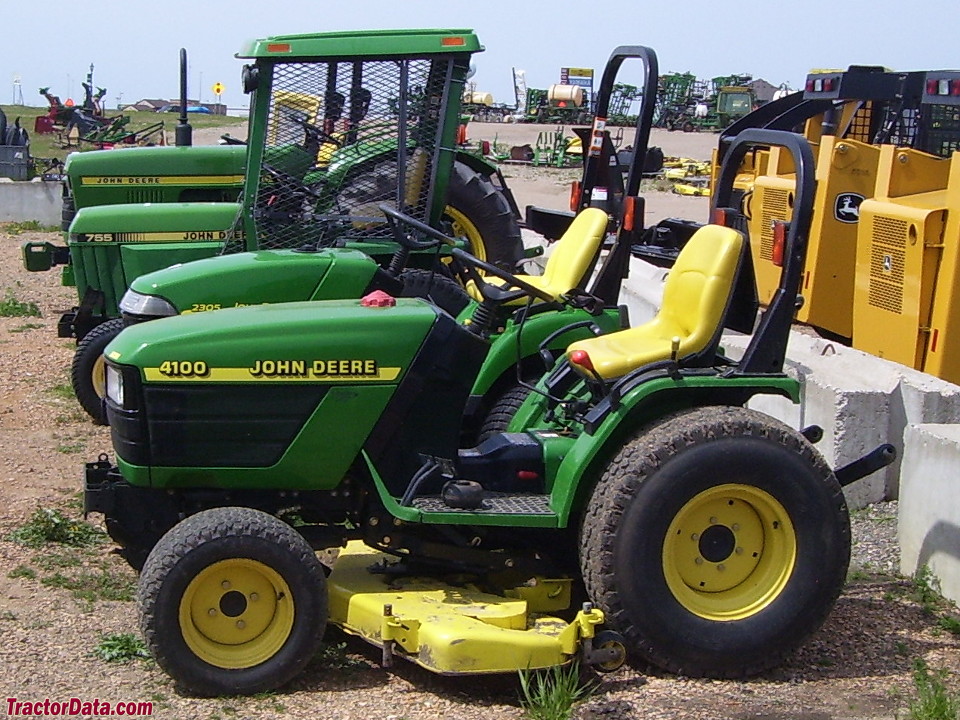

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

front-end loaderReference

4100 Serial Number Location

Serial number tag on the right side of the John Deere 4100 tractor frame, above the front axle.Reference

4100 Serial Numbers

1998110000Reference

1999210001Reference

2000310001Reference

2001410001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery CCA433Reference

Battery volts12Reference
