Tractor · 2008Unverified

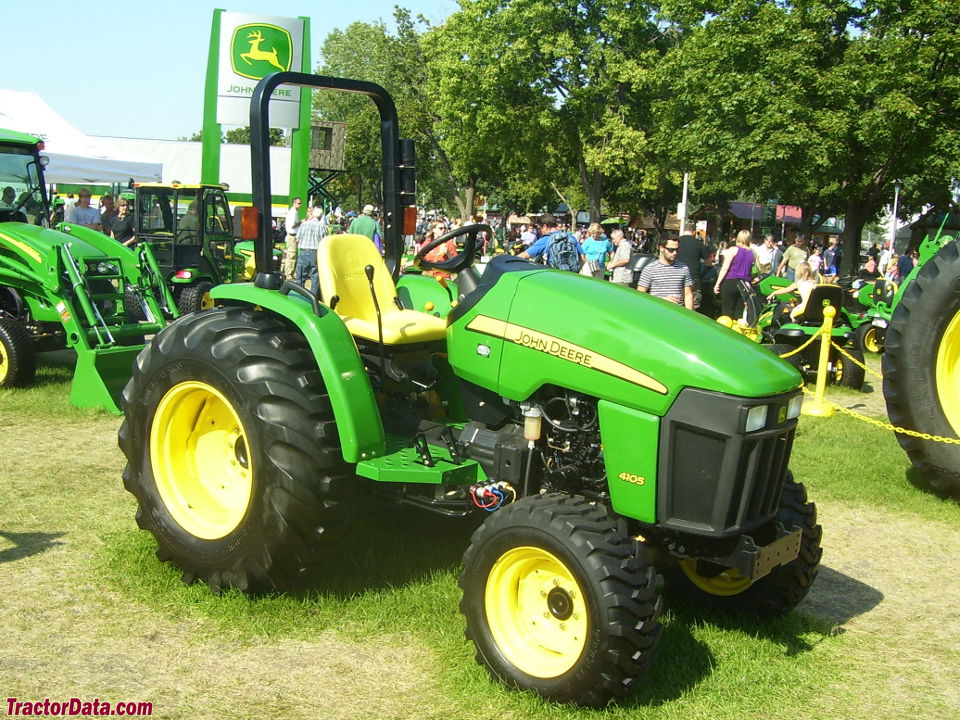

John Deere 4105

Name: John Deere 4105
Brand: John Deere

John Deere 4105 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.

The John Deere 4105 is a compact tractor rated at 33 hp. Manufactured from 2008 to 2014, it features a 3-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The tractor has a listed weight of 1354 kg and is suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Max power

41 hp

Weight

1354 kg

Catalogue coverage

Variants represented

Richest spec table

107 rows

Recorded power

33 hp

Recorded weight

1354 kg

Transmissions

hydrostatic

Production years

2008-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $23,634 in 2015Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Yanmar 1.5L 3-cyl dieselReference

Engine30.6 kWReference

Yanmar 3TNV84T-KJTReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power30.6 kWReference

Air cleanerdryReference

Compression19:1Reference

Rated RPM2800Reference

Torque124.5 NmReference

Torque RPM1900Reference

Starter volts12Reference

Starter power1.4 kWReference

Coolant capacity5.3 LReference

Oil capacity4.3 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,800 RPMReference

Engine torque at rated speed41.6 kgReference

Bore and stroke3.30x3.54 inchesReference

Compression ratio19:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity31.4 LReference

Transmission TypeHSTReference

forward and reverse optionshydrostatic : infinite forward and infinite reverse (2-range)Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)24.2 kWReference

Hydraulic system31.4 LReference

Typeopen centerReference

Capacity31.4 LReference

Pressure172.4 barReference

Valves2Reference

Pump flow34.8 lpmReference

Total flow56.0 lpmReference

Steering flow21.6 lpmReference

Steering press.103.4 barReference

Rear TypeIReference

Rear lift (at ends)1147 kgReference

Rear lift (at 24"/610mm)997 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Capacities

Fuel43.5 LReference

Fuel tank43.5 LReference

Crankcase oil volume4.5 qtsReference

Dimensions

Wheelbase172 cmReference

Weight1354 kgReference

Front tire8-16Reference

Rear tire14.9-24Reference

Ag front8-16Reference

Ag rear14.9-24Reference

Length305 cmReference

Width167 cmReference

Height (hood)145 cmReference

Height (ROPS)222 cmReference

Shipping weight1354 kgReference

Max weight3265 kgReference

Clearance (front axle)37 cmReference

John Deere 4105 attachments

front-end loaderReference

4105 Serial Numbers

Location:Serial number plate on the right side of tractor frame, above the front axle.Reference

2008110001Reference

2009210001Reference

2010310001Reference

2011410001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Total cold cranking amps500 ccaReference

General

Make & ModelJohn DeereReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Power

Max Power41 hpReference

PTO

PTO Power32.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)14.8 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,500 psiReference

Remote Valves2 ValvesReference

Steering & Implements flow5.7 gpm (9.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,147.6 kgReference

Dimensions & weight

Height Over ROPS222.5 cmReference

Overall Length305.3 cmReference

Overall Width167.1 cmReference

Front axle clearance37.3 cmReference

Overall weight1,354.9 kgReference

Wheels & tyres

Rear Wheel Type14.9-24Reference

Front Wheel Type45,520Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
