Backhoe Loader · 2007Unverified

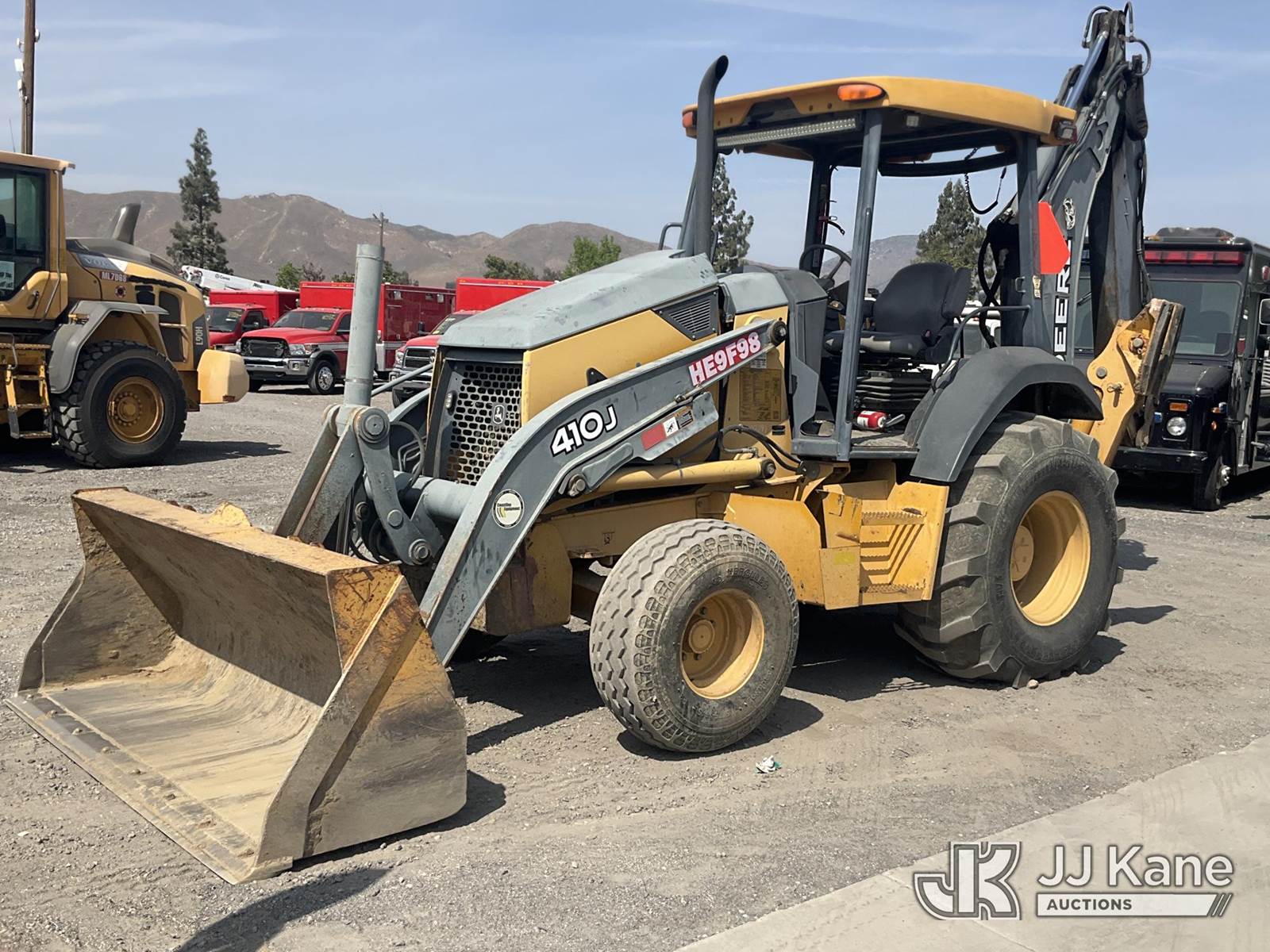

John Deere 410J
John Deere 410J — Backhoe loader tractor · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
15080 to 18580 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Backhoe loader tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine73.1 kWReference
John Deere 4045HT054Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power73.1 kWReference
Rated RPM2000Reference
Torque414.9 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity24.6 LReference
Transmission
4-speed full powershift with reverserReference
TransmissionPowerShiftReference
Typefull powershift with reverserReference
Gears4 forward and 3 reverseReference
Oil capacity15.1 LReference
Capacities
Fuel155.2 LReference
Rear axle18.0 LReference
PTO & Hydraulics
Hydraulic system94.6 LReference
Capacity94.6 LReference
Pressure249.9 barReference
Total flow159.0 lpmReference
Dimensions
Wheelbase210 cmReference
Wheelbase213 cmReference
Weight15080 to 18580 poundsReference
Front tire11L-16Reference
Rear tire19.5L-24Reference
Industrial front11L-16 (2WD)Reference
Industrial front12.5/80-18 (4WD)Reference
Industrial rear19.5L-24Reference
Industrial front14.5/75-16.1Reference
Industrial front340/80R18Reference
Industrial rear21L-24Reference
Length728 cmReference
Width231 cmReference
Height (ROPS)281 cmReference
Height (cab)281 cmReference
Operating weight6840 kgReference
Operating weight8427 kgReference
Ground clearance35 cmReference
Backhoe & Loader
Dig depth190 to 240 inchesReference
Dump angle114 cmReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2 (optional)Reference
Battery CCA950Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere Backhoe
Backhoe typeJohn Deere BackhoeReference
Digging depth482 cmReference
Digging depth (retracted stick)490 cmReference
Digging depth (extended stick)609 cmReference
2-Foot flat digging depth477 cmReference
2-Foot flat digging depth (retracted stick)485 cmReference
2-Foot flat digging depth (extended stick)607 cmReference
8-Foot flat digging depth444 cmReference
8-Foot flat digging depth (retracted stick)454 cmReference
8-Foot flat digging depth (extended stick)581 cmReference
Reach from pivot599 cmReference
Reach from pivot (retracted stick)607 cmReference
Reach from pivot (extended stick)721 cmReference
Loading height381 cmReference
Loading height (retracted stick)386 cmReference
Loading height (extended stick)472 cmReference
Bucket force6713 kgReference
Dipperstick force3964 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
