Tractor · 2002Unverified

John Deere 4110

Name: John Deere 4110
Brand: John Deere

John Deere 4110 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The John Deere 4110 is a tractor with a rated power output of 20 hp, categorising it as one of the more compact options in its class. Manufactured between 2002 and 2006, this model is equipped with a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a hydrostatic transmission. The listed operating weight is 1517 to 1579 pounds, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1517 to 1579 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

20 hp

Recorded weight

353 kg

Transmissions

8-speed unsynchronized gear

Production years

2002-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerYanmarReference

Compact Utility tractorReference

Built in JapanReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

SteeringpowerReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.0L 3-cyl dieselReference

Engine (gross)14.9 kWReference

Engine (net)14.2 kWReference

Yanmar 3TNE74Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke74 x 78 mmReference

Power (net)14.2 kWReference

Power (gross)14.9 kWReference

Air cleanerdryReference

Rated RPM2650Reference

Starter volts12Reference

Coolant capacity2.4 LReference

Oil capacity2.2 LReference

Transmission

8-speed unsynchronized gearReference

hydrostaticReference

Gear Operating688 kgReference

Typeunsynchronized gearReference

Gears8 forward and 4 reverseReference

Oil capacity13.6 LReference

Oil type[26o↔-40oC]Reference

122o↔0oF [50o↔-17oC]: HY-GARDReference

80o↔-40oF [26o↔-40oC]: Low-viscosity HY-GARDReference

Unsynchronized four-speed transmission with high, low, and reverse ranges. Tractor must be stopped, and clutch used, to shift ranges and gears.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity13.2 LReference

The 4110 has an optional two-range hydrostatic transmission controlled by forward and reverse foot pedals. The tractor must be stopped to shift between high and low ranges.Reference

PTO & Hydraulics

PTO (claimed)12.7 kWReference

Hydraulic system13.6 LReference

Typeopen centerReference

Capacity13.6 LReference

Valves5Reference

Pump flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)521 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2650Reference

Mid PTOindpendentReference

Mid PTO Type2100Reference

Engine RPM2100@2650Reference

Capacities

Fuel22.0 LReference

Front axle3.4 LReference

Dimensions

Wheelbase147 cmReference

Weight1517 to 1579 poundsReference

Front tire5.00-12Reference

Rear tire9.5-16Reference

Weight353 kgReference

Ag front5.00-12Reference

Ag rear9.5-16Reference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear315/75D-15Reference

Industrial rear12-16.5Reference

Length261 cmReference

Width119 cmReference

Height (hood)111 cmReference

Height (ROPS)200 cmReference

Ground clearance24 cmReference

Hydro Operating716 kgReference

Max Drawbar254 kgReference

Max front axle610 kgReference

Max rear axle1100 kgReference

John Deere 4110 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

4110 Serial Numbers

Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference

2002110000Reference

2003210000Reference

2004310000Reference

2005410000Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery CCA435Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

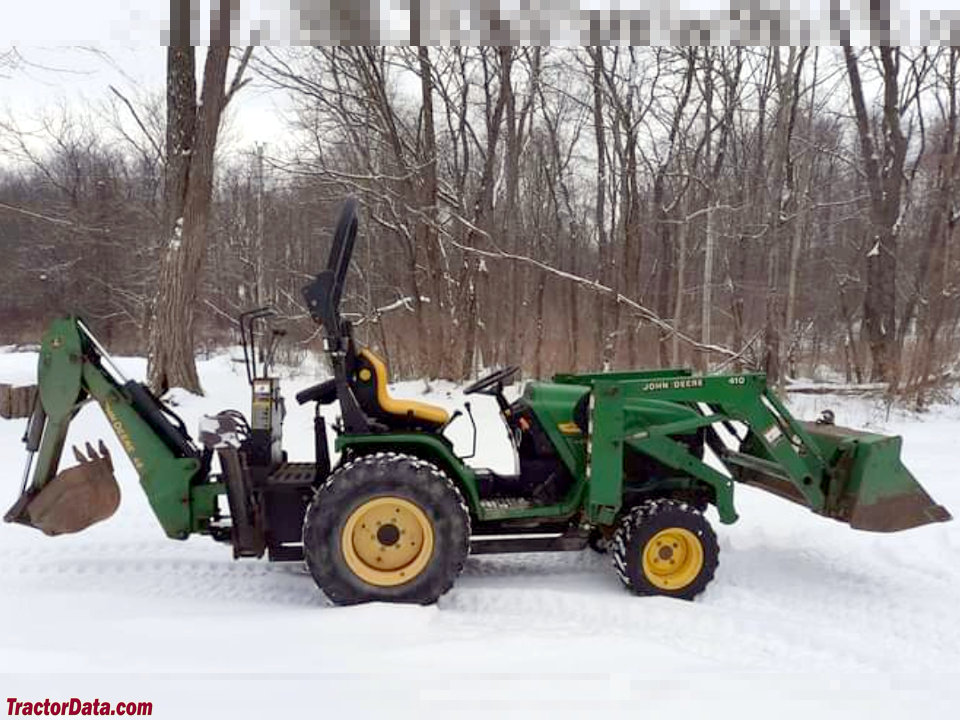

John Deere 46 Backhoe

Backhoe typeJohn Deere 46 BackhoeReference

Transport height152 cmReference

Bucket width22 cmReference

Bucket width33 cmReference

Bucket width40 cmReference

Bucket width50 cmReference

Bucket width60 cmReference

2-Foot flat digging depth198 cmReference

Reach from pivot256 cmReference

Loading height152 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Dipperstick force567 kgReference

Speeds

With 9.5-16 rear tires.Reference
