Tractor · 2002Unverified

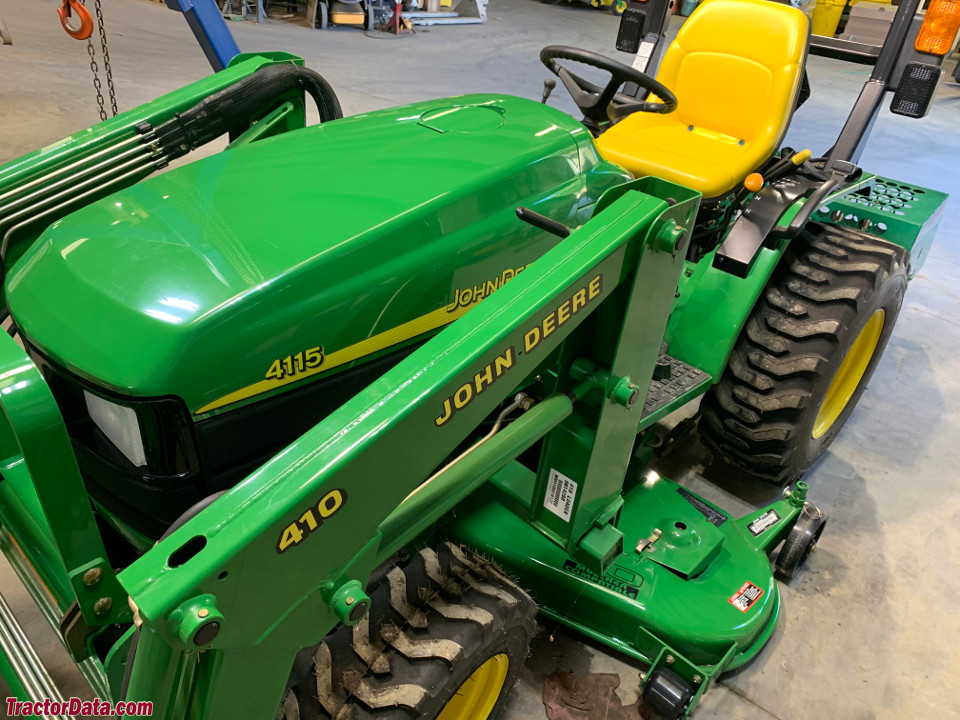

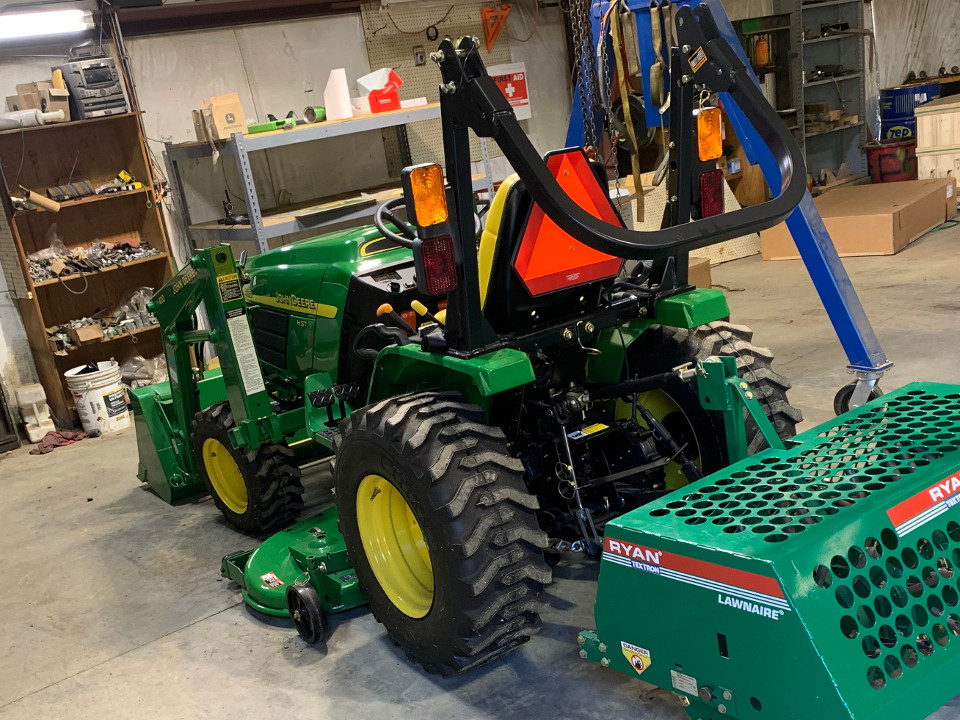

John Deere 4115

Name: John Deere 4115
Brand: John Deere

John Deere 4115 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The John Deere 4115 is a compact tractor with a rating of 24 hp. Manufactured from 2002 to 2004, it features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The listed weight of this model is 803 kg, and it is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

803 kg

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

24 hp

Recorded weight

803 kg

Transmissions

hydrostatic

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerYanmarReference

Compact Utility tractorReference

Built in JapanReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

SteeringpowerReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.2L 3-cyl dieselReference

Engine (gross)17.9 kWReference

Engine (net)17.5 kWReference

Yanmar 3TNE78AReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.2 LReference

Bore/Stroke78 x 84 mmReference

Power (net)17.5 kWReference

Power (gross)17.9 kWReference

Rated RPM2650Reference

Starter volts12Reference

Coolant capacity2.4 LReference

Oil capacity2.0 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity14.8 LReference

Oil type[26o↔-40oC]Reference

122o↔0oF [50o↔-17oC]: HY-GARDReference

80o↔-40oF [26o↔-40oC]: Low-viscosity HY-GARDReference

The John Deere 4115 uses a two-range hydrostatic transmission operated with forward and reverse foot pedals. Left-hand shifter selects range. Tractor must be stopped to switch ranges.Reference

PTO & Hydraulics

PTO (claimed)14.9 kWReference

Hydraulic system14.8 LReference

Typeopen centerReference

Capacity14.8 LReference

Valves5Reference

Pump flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)521 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2650Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Engine RPM2100@2650Reference

Capacities

Fuel26.9 LReference

Front axle3.4 LReference

Dimensions

Wheelbase164 cmReference

Weight803 kgReference

Front tire7.00-12Reference

Rear tire35x12.00-16.5Reference

Weight353 kgReference

Ag front7.00-12Reference

Ag rear35x12.00-16.5Reference

Lawn/turf front24x8.50-12Reference

Lawn/turf rear315/80D-16Reference

Industrial rear12-16.5Reference

Length274 cmReference

Width119 cmReference

Height (hood)127 cmReference

Height (ROPS)205 cmReference

Height (Folded ROPS)175 cmReference

Operating weight803 kgReference

Ground clearance27 cmReference

John Deere 4115 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

4115 Serial Numbers

Location:Serial number decal on the right side of the tractor frame, above the front axle.Reference

2002110000Reference

2003210000Reference

2004310000Reference

2005410000Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery CCA435Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

John Deere 46 Backhoe

Backhoe typeJohn Deere 46 BackhoeReference

Transport height152 cmReference

Bucket width22 cmReference

Bucket width33 cmReference

Bucket width40 cmReference

Bucket width50 cmReference

Bucket width60 cmReference

2-Foot flat digging depth198 cmReference

Reach from pivot256 cmReference

Loading height152 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Dipperstick force567 kgReference

Speeds

With 35x12.00-16.5 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
