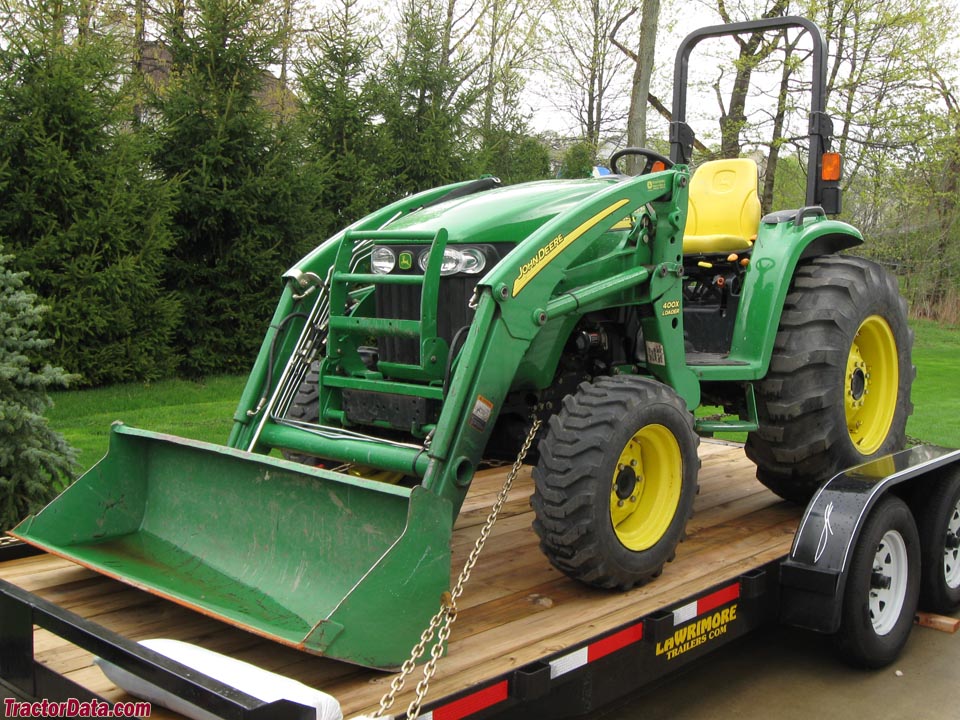

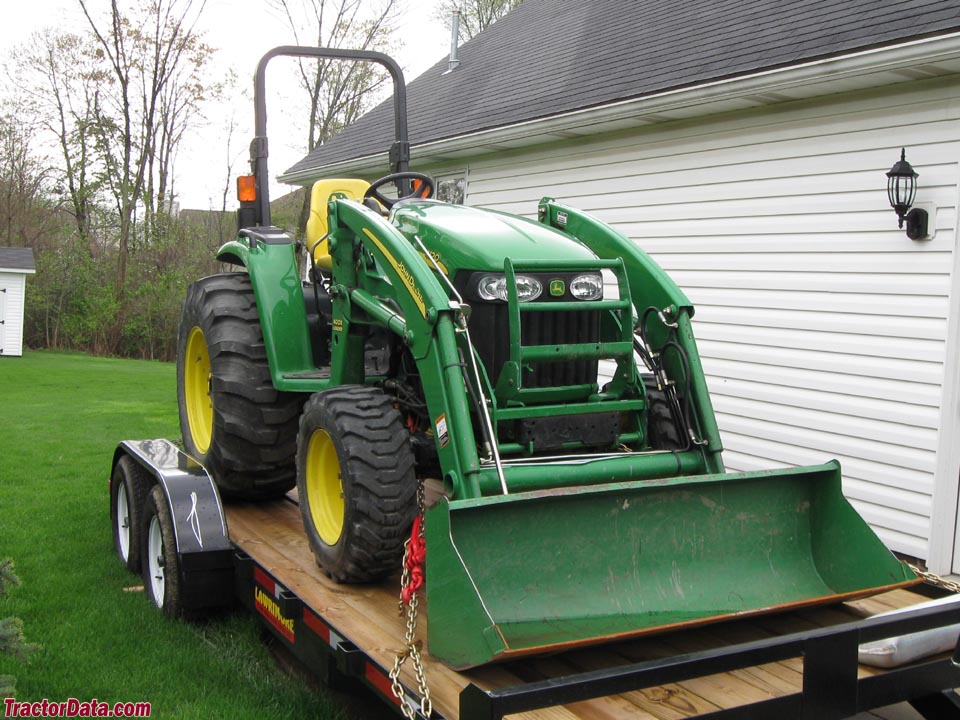

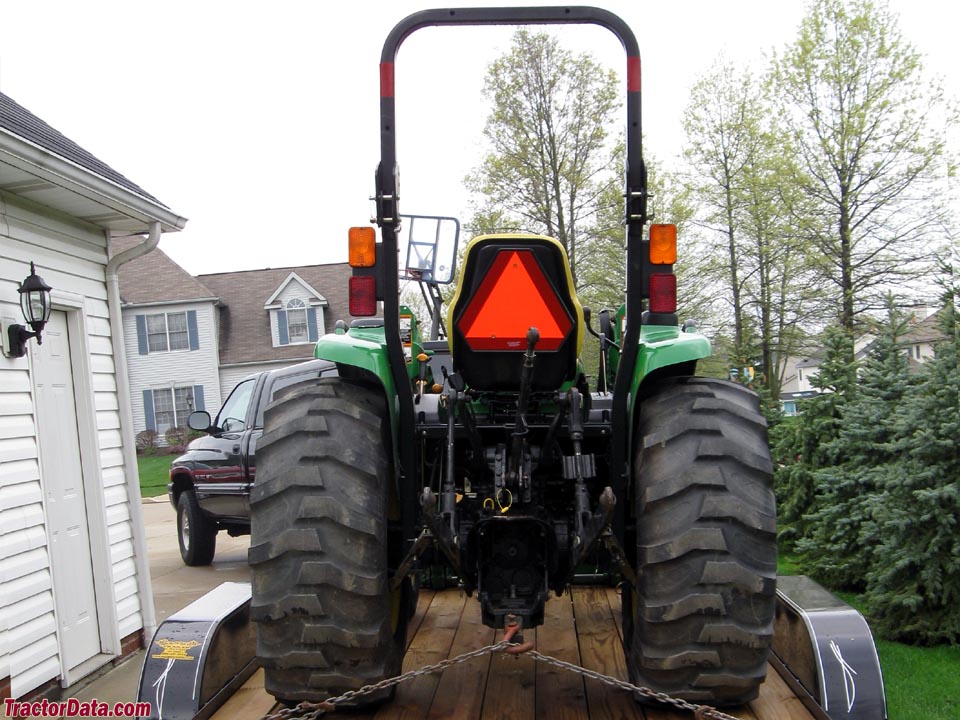

John Deere 4120
John Deere 4120 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1678 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
ROPS.Reference
Engine
John Deere 2.4L 4-cyl dieselReference
Engine32.1 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 105 mmReference
Power32.1 kWReference
Compression20:1Reference
Rated RPM2400Reference
Starter volts12Reference
Starter power2.2 kWReference
Oil capacity7.5 LReference
Coolant capacity6.1 LReference
Transmission
12-speedReference
hydrostaticReference
TransmissionPowrReverserReference
Gears12 forward and reverseReference
Oil capacity39.0 LReference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity36.3 LReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Hydraulic system39.0 LReference
Hydraulic system36.3 LReference
Typeopen centerReference
Capacity39.0 LReference
Capacity36.3 LReference
Pressure172.4 barReference
Pump flow45.4 lpmReference
Total flow64.7 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at ends)1419 kgReference
Rear lift (at 24"/610mm)1134 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependent (optional)Reference
Mid PTO Type2100Reference
Capacities
Fuel54.9 LReference
Dimensions
Wheelbase181 cmReference
Weight1678 kgReference
Front tire8.00-16Reference
Rear tire13.6-28Reference
Weight203 kgReference
Weight662 kgReference
Ag front8.00-16Reference
Ag rear13.6-28Reference
Length325 cmReference
Width166 cmReference
Height (hood)157 cmReference
Height (ROPS)246 cmReference
Max Drawbar500 kgReference
John Deere 4120 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Battery CCA770Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference

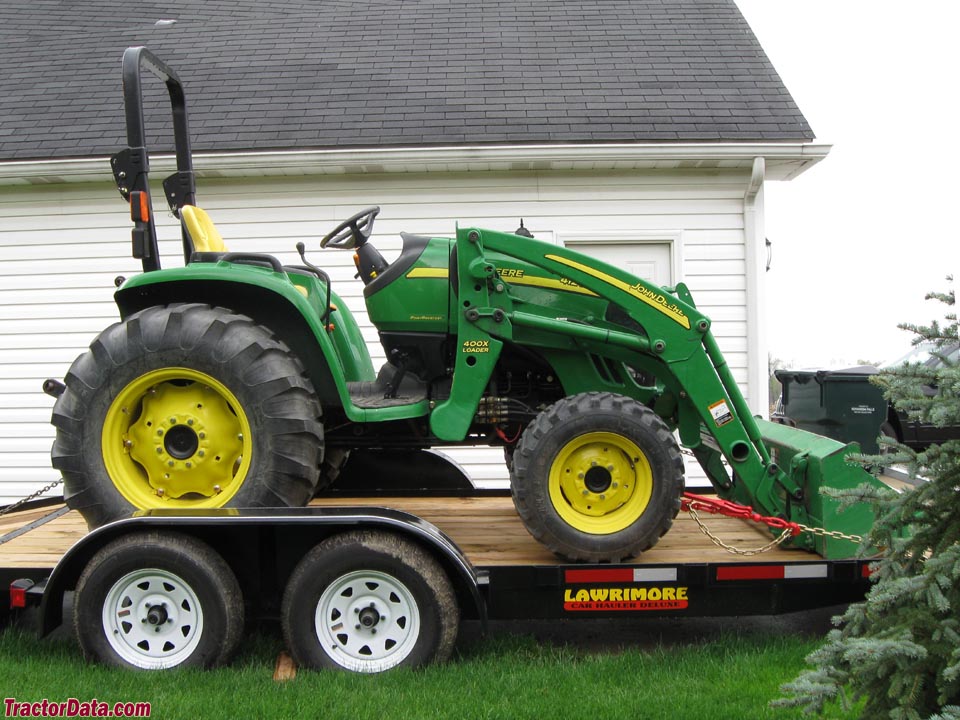

John Deere 400X loaderReference
John Deere 400CX loaderReference
BackhoeReference
72" Mower deck
Typemid-mount John DeereReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference
Cut height2 to 24 cmReference
John Deere 485 Backhoe
Backhoe typeJohn Deere 485 BackhoeReference
Transport height228 cmReference
Digging depth266 cmReference
Reach from pivot360 cmReference
Loading height223 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
Speeds
With 13.6-28 rear tires.Reference
With 16.3-28 rear tires.Reference
