Tractor · 1998Unverified

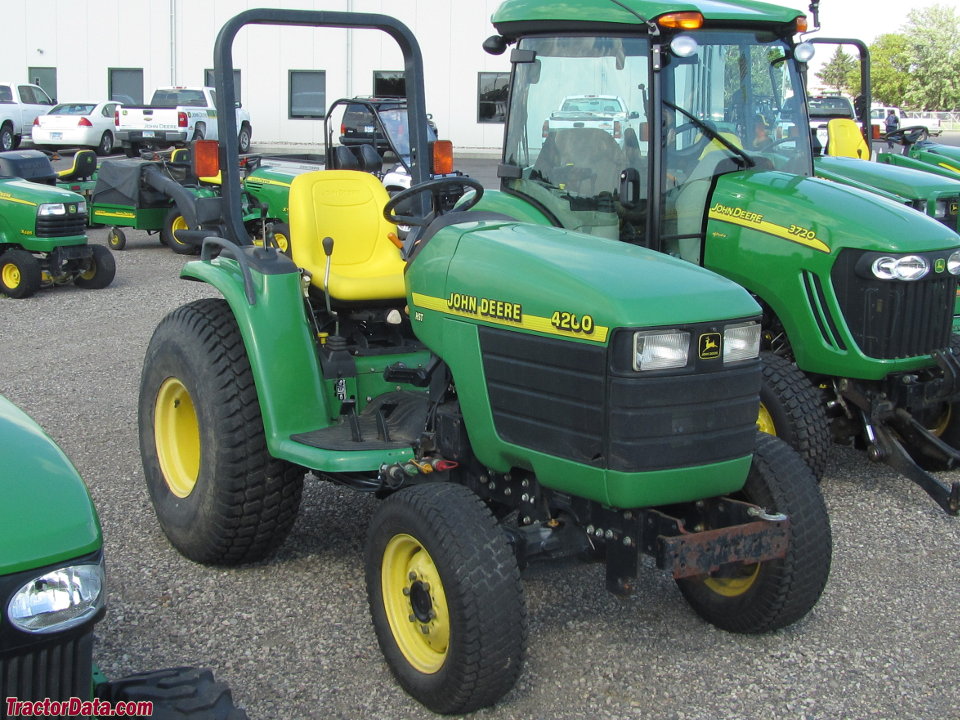

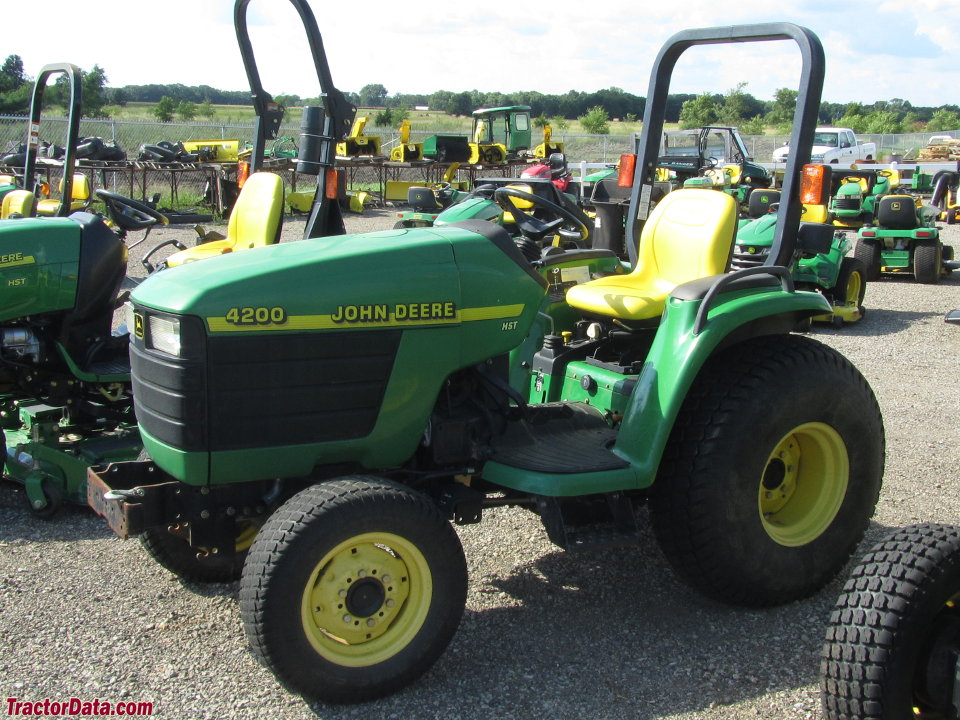

John Deere 4200

Name: John Deere 4200
Brand: John Deere

John Deere 4200 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.

The John Deere 4200 is a tractor with a rated power of 26 hp, positioning it at the lighter end of its class. It was manufactured from 1998 to 2001, and is equipped with a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 1088 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

1088 kg

Catalogue coverage

Variants represented

Richest spec table

135 rows

Recorded power

26 hp

Recorded weight

1088 kg

Transmissions

9-speed partially synchronized

Production years

1998-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $14,000 in 1999Reference

Two- or four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Differential wet disc brakesReference

Two-post fixed ROPS. Folding ROPS optional.Reference

Engine

Yanmar 1.2L 3-cyl dieselReference

Engine (gross)19.6 kWReference

Engine (net)18.1 kWReference

Yanmar 3TNE78AReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke78 x 84 mmReference

Power (net)18.1 kWReference

Power (gross)19.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Pre-heatingair heaterReference

Compression18:1Reference

Rated RPM2700Reference

Idle RPM950-2810Reference

Operating RPM950-2700Reference

Starter volts12Reference

Starter power1.2 kWReference

Coolant capacity5.3 LReference

Oil capacity3.8 LReference

Oil change200 hReference

Transmission

9-speed partially synchronizedReference

hydrostaticReference

TransmissionSyncShiftReference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Clutchwet discs, one clutch pack with nine four-inch discsReference

Oil capacity23.8 LReference

Three gears (1-3), plus reverse, in three ranges (A-C). Gears may be shifting on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity25.7 LReference

Hydrostatic transmission operated by two foot pedals and left-hand range shift lever. Tractor must be stopped to shift ranges. Push-button cruise control.Reference

PTO & Hydraulics

Gear PTO (claimed)16.0 kWReference

Hydro PTO (claimed)14.9 kWReference

Hydraulic system23.8 LReference

Hydraulic system25.7 LReference

Typeopen centerReference

Capacity23.8 LReference

Capacity25.7 LReference

Pressure146.5 barReference

Valves2Reference

Pump flow27.6 lpmReference

Total flow46.6 lpmReference

Oil type[26o↔-40oC]Reference

122o↔0oF [50o↔-17oC]: JD Hy-GardReference

80o↔-40oF [26o↔-40oC]: JD Lo Vis Hy-GardReference

Steering flow18.9 lpmReference

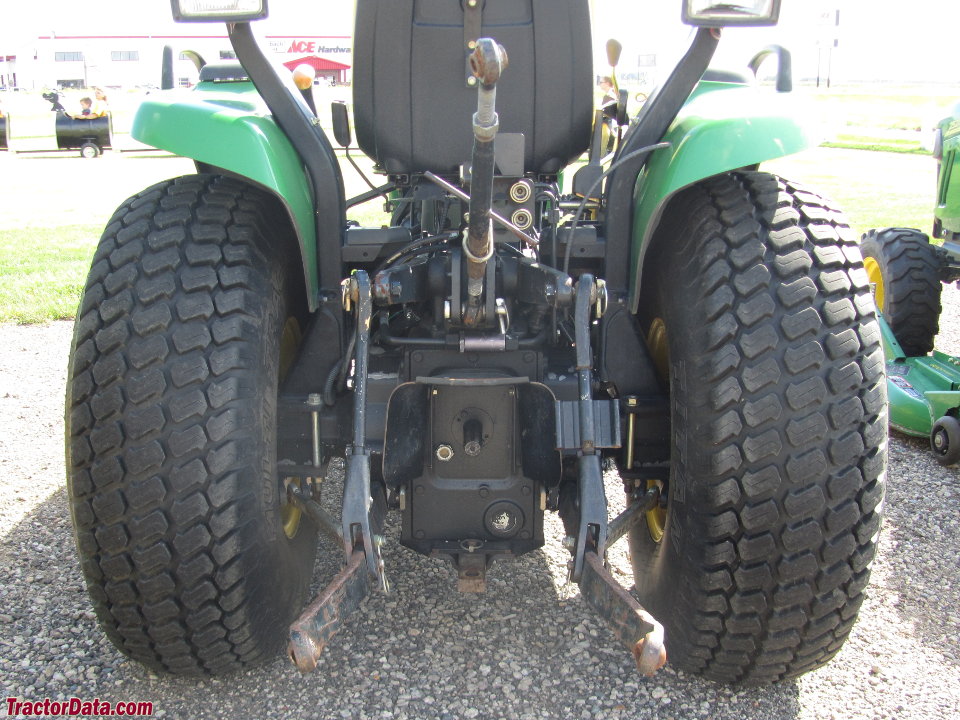

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)771 kgReference

Rear PTOindependentReference

Clutchmechanical wet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2700Reference

Mid PTOoptionalReference

Mid PTO Type2100Reference

Engine RPM2100@2700Reference

Capacities

Fuel37.9 LReference

Front axle4.4 LReference

Dimensions

2WD Wheelbase165 cmReference

4WD Wheelbase172 cmReference

Weight1088 kgReference

Front tire4.00-15Reference

2WD Rear tire12.4-16Reference

Weight474 kgReference

2WD Standard tires (ag)Front: 4.00-15. Rear: 12.4-16Reference

4WD Standard tires (ag)Front: 7.00-14. Rear: 12.4-24Reference

2WD Ag front5.00-15Reference

Ag rear11.2-24Reference

Lawn/turf front25-10.50LLx15Reference

Lawn/turf front25x8.5-14Reference

4WD Lawn/turf front7.00-14Reference

Lawn/turf rear41LLx18.00-16Reference

Lawn/turf rear11.2-24Reference

Lawn/turf rear13.6-16Reference

Industrial front23x8.50-12Reference

Industrial rear14.00-17.5Reference

Length297 cmReference

2WD Width134 cmReference

4WD Width127 cmReference

Clearance (rear axle)26 cmReference

1088 kgReference

Max Drawbar254 kgReference

Max front axle1275 kgReference

Max rear axle1999 kgReference

John Deere 4200 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

4200 Serial Number Location

Serial number plate on front-right tractor frame, above front wheel.Reference

4200 Serial Numbers

1998120000Reference

1999220001Reference

2000320001Reference

2001420001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

John Deere 47 Backhoe

Backhoe typeJohn Deere 47 BackhoeReference

2-Foot flat digging depth228 cmReference

Reach from pivot289 cmReference

Loading height177 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1288 kgReference

Dipperstick force909 kgReference

John Deere 4200 Height

2WD Hood128 cmReference

4WD Hood135 cmReference

ROPS205 cmReference

ROPS213 cmReference

ROPS220 cmReference

Speeds

With 12.4-16 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
