Tractor · 2002Unverified

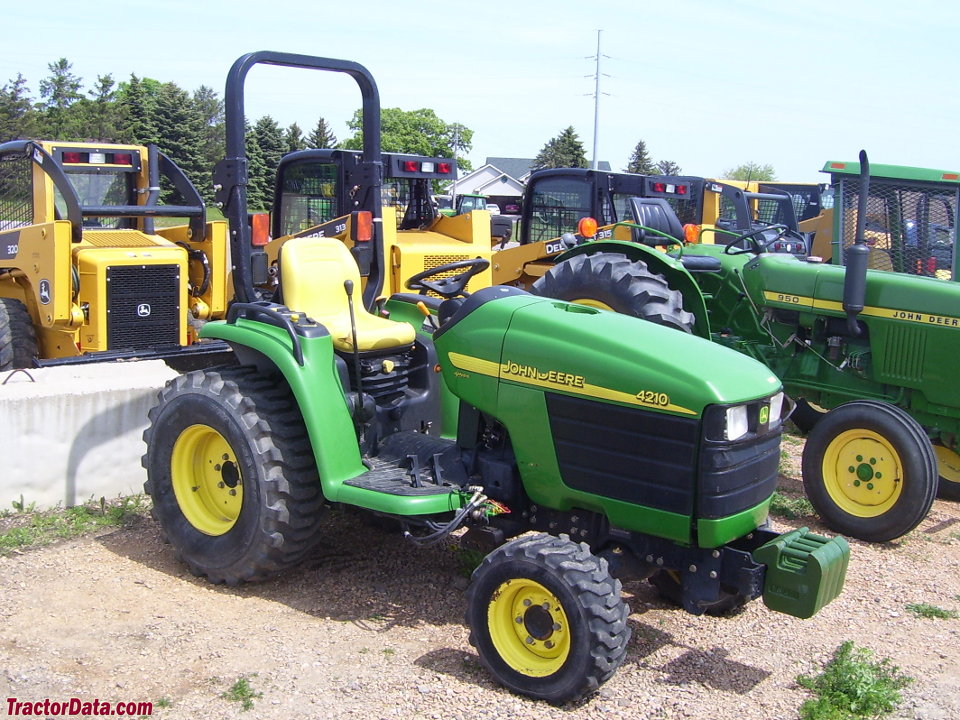

John Deere 4210
John Deere 4210 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2375 to 2675 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Two-post fixed ROPS. Two-post folding ROPS optional.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine (gross)20.1 kWReference
Yanmar 3TNE82AReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 84 mmReference
Power (gross)20.1 kWReference
Air cleanerdryReference
Compression18.5:1Reference
Rated RPM2600Reference
Idle RPM1000-2810Reference
Starter volts12Reference
Starter power1.2 kWReference
Oil capacity3.8 LReference
Coolant capacity5.3 LReference
Transmission
9-speed partially synchronizedReference
hydrostaticReference
TransmissionSyncShiftReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity23.8 LReference
Three gears (1-3) plus reverse in three ranges (A-C). Gears can be shifted on the move using the clutch. Tractor must be stopped to shift ranges.Reference
TransmissioneHydroReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity25.7 LReference
Three-range hydrostatic transmission with foot pedals and cruise control. Tractor must be stopped to shift ranges. Automotive cruise control option allows set speed to be adjusted with rocker switch. SpeedMatch option allows a maximum speed to be set and full pedal travel used to achive that speed. LoadMatch option prevents the tractor from stalling during heavy loads. The MotionMatch option enables the acceleration rate to be set to fast or slow.Reference
PTO & Hydraulics
PTO (claimed)17.5 kWReference
PTO (claimed)16.4 kWReference
Hydraulic system23.8 LReference
Hydraulic system25.7 LReference
Typeopen centerReference
Capacity23.8 LReference
Capacity25.7 LReference
Pressure146.5 barReference
Valves5Reference
Pump flow26.5 lpmReference
Total flow46.6 lpmReference
Steering flow20.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)771 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Mid PTO Type2100Reference
Capacities
Fuel37.9 LReference
Front axle4.4 LReference
Dimensions
Wheelbase165 cmReference
Weight2375 to 2675 poundsReference
Front tire4.00-15Reference
Rear tire11.2-24Reference
Weight147 kgReference
Weight474 kgReference
Ag front4.00-15 (2WD)Reference
Ag front7.00-14 (4WD)Reference
Ag rear11.2-24Reference
Length297 cmReference
Width134 cmReference
Clearance (rear axle)76 cmReference
1077 kgReference
1213 kgReference
Max Drawbar254 kgReference
Max front axle720 kgReference
Max rear axle2000 kgReference
John Deere 4210 attachments
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
4210 Serial Number Location
On right side of tractor frame above the front axle.Reference
4210 Serial Numbers
2002120001Reference
2003220001Reference
2004320001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging amps55Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount John Deere 60 7-IronReference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Overall width186 cmReference
Cut height2 to 12 cmReference
John Deere 47 Backhoe
Backhoe typeJohn Deere 47 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
John Deere 4210 Height
Hood128 cmReference
ROPS201 cmReference
ROPS221 cmReference
Speeds
With 12.4-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
