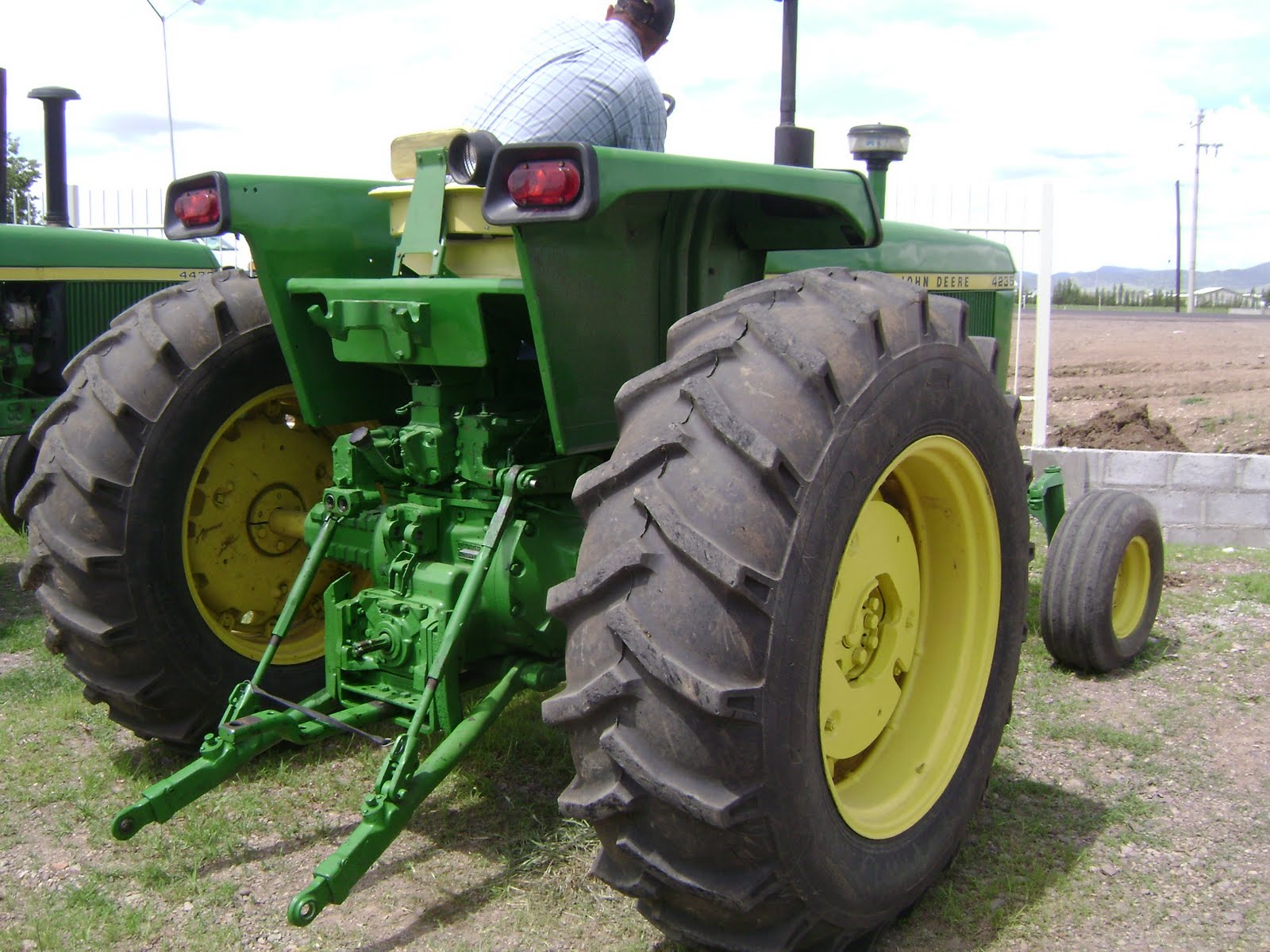

The John Deere 4235 is a tractor with a rated power of 100 hp, a mid-range figure for its class. It was manufactured from 1974 to 1983 and features a 6-cylinder diesel liquid-cooled engine. The tractor is equipped with two-wheel drive and a powershift transmission. Its operating weight is listed as 5021 kg.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
5021 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
100 hp
Recorded weight
5021 kg
Transmissions
8-speed
Production years
1974-1983
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Monterrey, MexicoReference
The Mexican-built John Deere 4235 is similar to the US-built 4230.Reference
Two-wheel driveReference
Open operator station.Reference
Engine
John Deere 6.6L 6-cyl dieselReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.6 LReference
Bore/Stroke108 x 121 mmReference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Transmission
8-speedReference
8-speed full power shiftReference
TransmissionSynchro-RangeReference
Gears8 forward and 4 reverseReference
TransmissionPower ShiftReference
Typefull power shiftReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Weight5021 kgReference
Front tire7.50-18Reference
Rear tire18.4-34Reference
Ag front7.50-18Reference
Ag rear18.4-34Reference
Ag front10.00-16Reference
Ag rear20.8-34Reference
Ag rear15.5-38Reference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
