Tractor · 1978Unverified

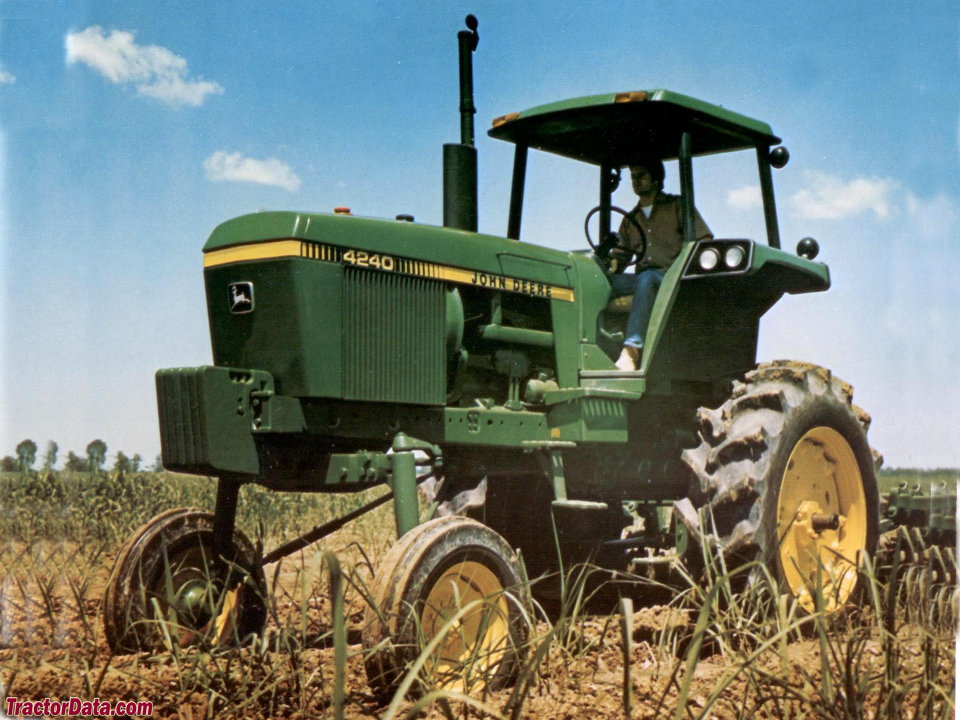

John Deere 4240 Hi-Crop
John Deere 4240 Hi-Crop — Iron Horses Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4952 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Two-wheel driveReference
Four-post Roll-Gard ROPS canopy.Reference
Variants
4240row-cropReference
4240 Hi-Crophigh-clearanceReference
Engine
John Deere 7.6L 6-cyl dieselReference
John DeereReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Air cleanerdual dry elementReference
Compression17.0:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Coolant capacity28.4 LReference
Transmission
16-speed partial power shiftReference
8-speed partially synchronizedReference
8-speed full power shiftReference
TransmissionJohn Deere Quad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
TransmissionJohn Deere Syncro-RangeReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Dimensions
Wheelbase271 cmReference
Weight4952 kgReference
Front tire11L-15Reference
Rear tire18.4-34Reference
Ag front11L-15Reference
Ag rear18.4-34Reference
Ag front7.50-20Reference
Length397 cmReference
Width242 cmReference
Height (steering wheel)256 cmReference
Height (exhaust)300 cmReference
Shipping weight4952 kgReference
Clearance (front axle)104 cmReference
Clearance (rear axle)76 cmReference
Front tread152 to 223 cmReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
