Tractor · 1982Unverified

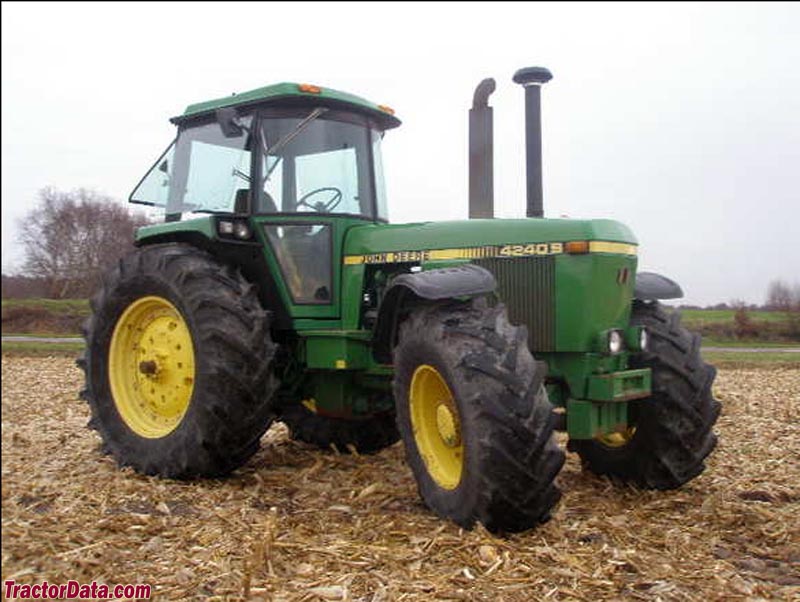

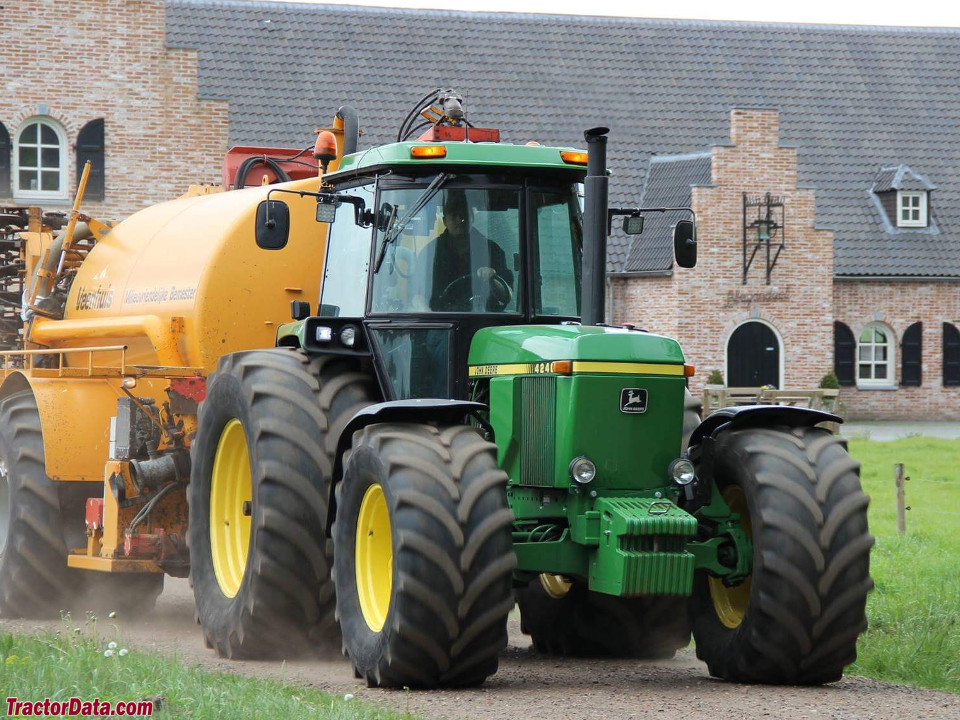

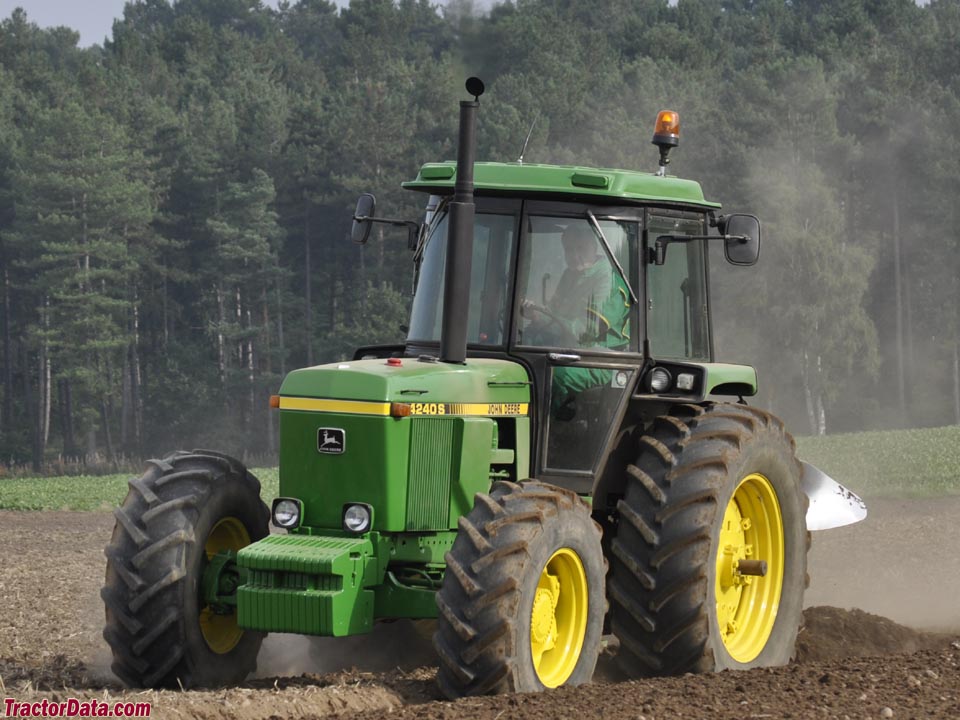

John Deere 4240S
John Deere 4240S · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
5261 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Sound-Gard Cab standard.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Engine98.4 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power98.4 kWReference
Compression16.8:1Reference
Rated RPM2200Reference
Torque560.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
16-speedReference
12-speedReference
TransmissionQuad-RangeReference
Gears16 forward and 6 reverseReference
Clutchhydraulic wet discReference
TransmissionSynchro-RangeReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Pressure155.1 barReference
Pump flow96.1 lpmReference
Rear TypeIIReference
Rear lift5640 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight5261 kgReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Standard tires (ag)Front: 11.00-16. Rear: 20.8-38Reference
Optional tires (ag)Front: 16.9-28. Rear: 20.8-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference
Length466 cmReference
Width243 cmReference
Height (cab)291 cmReference
Height (exhaust)315 cmReference
Shipping weight5261 kgReference
Rear tread152 to 207 cmReference
4240S Serial Number Location
Serial number plate on the front right of the tractor frame, above the front axle.Reference
4240S Serial Numbers
1982345029Reference
1983346464Reference
1984347542Reference
1985348359Reference
1986349009Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
