Tractor · 1983Unverified

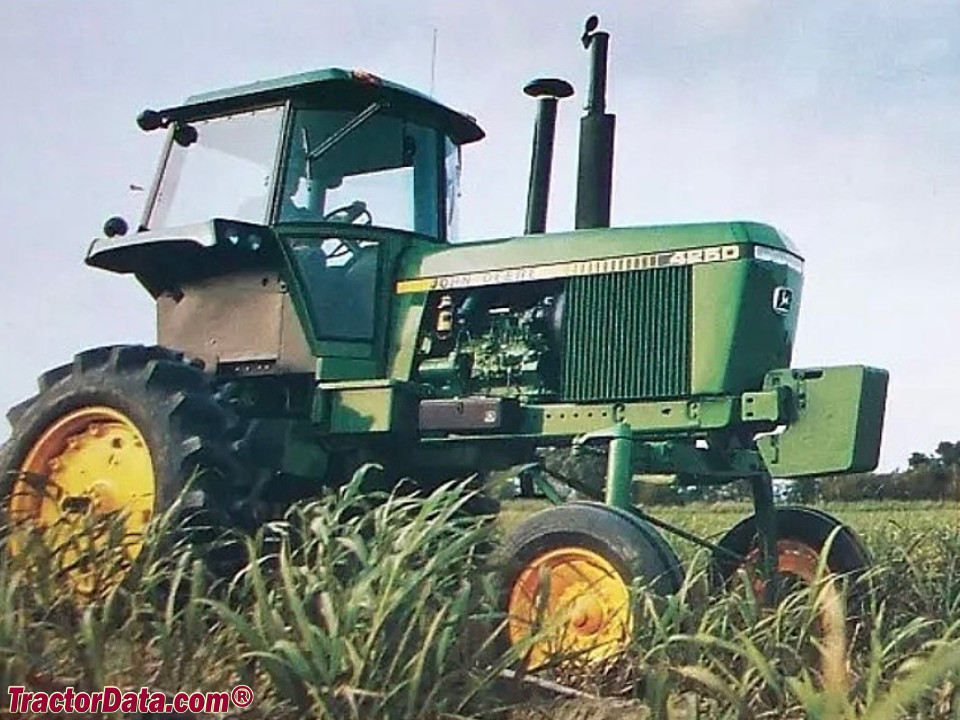

John Deere 4250 Hi-Crop
John Deere 4250 Hi-Crop — 50 Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
6064 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Two-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Sound-Gard cab standard. Optional four-post Roll-Gard ROPS.Reference
Variants
4250row-crop chassisReference
Engine
John Deere 7.6L 6-cyl dieselReference
Drawbar (claimed)75.3 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Air cleanerdryReference
Compression15.8:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity17.0 LReference
Transmission
16-speed partial power shiftReference
15-speed full power shiftReference
TransmissionJohn Deere Quad-RangeReference
Typepartial power shiftReference
Gears16 forward and 6 reverseReference
ClutchPerma-Clutch wet discReference
Oil capacity60.6 LReference
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.Reference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
Oil capacity39.7 LReference
Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Hydraulic system39.7 LReference
Hydraulic system51.1 LReference
Hydraulic system60.6 LReference
TypeclosedReference
Capacity39.7 LReference
Capacity51.1 LReference
Capacity60.6 LReference
Pressure157.0 barReference
Valves2 or 3Reference
Pump flow100.3 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Capacities
Fuel246.0 LReference
Dimensions
Wheelbase271 cmReference
Weight6064 kgReference
Front tire7.50-20Reference
Rear tire18.4-38Reference
Ag front7.50-20Reference
Ag rear18.4-38Reference
Ag rear9.50-20Reference
Length403 cmReference
Width242 cmReference
Height (steering wheel)268 cmReference
Height (cab)328 cmReference
Operating weight6064 kgReference
Clearance (front axle)104 cmReference
Clearance (rear axle)76 cmReference
4250 Hi-Crop Serial Numbers
Location:Serial number plate on the rear of the tractor.Reference
19831000Reference
19846001Reference
19859001Reference
198611001Reference
198712501Reference
198813501Reference
198920001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps90 (with Sound-Gard cab)Reference
Batteries2Reference
Battery volts6Reference
Battery volts12 (optional)Reference
