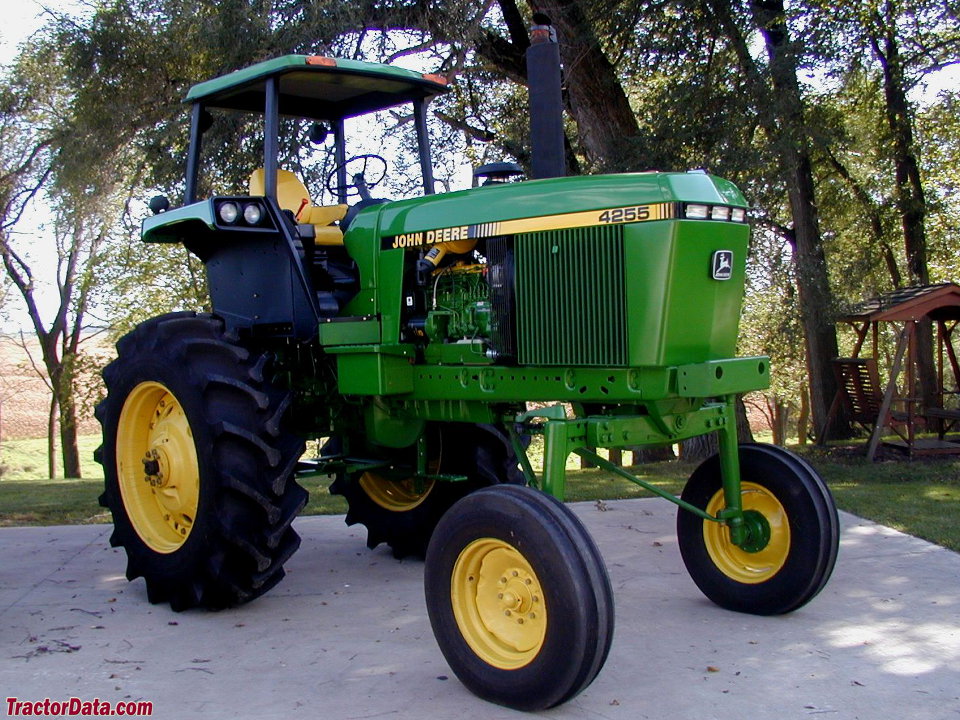

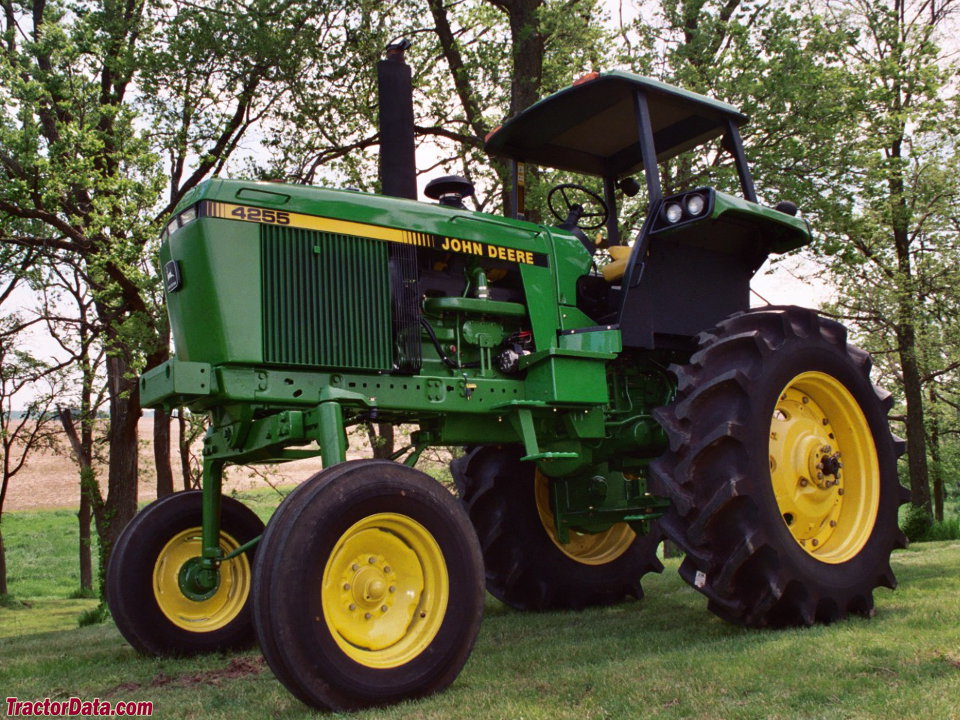

The John Deere 4255 Hi-Crop is a tractor, produced from 1988 to 1992. This model features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with two-wheel drive and a powershift transmission, with an operating weight of 6064 kg. The tractor's specifications are available for UK and US markets, detailing its capabilities for various operations.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
6064 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded weight
6064 kg
Transmissions
15-speed full power shift
Production years
1988-1992
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Two-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS.Reference
Variants
4255row-cropReference
4255 Hi-Crophigh-clearanceReference
Engine
John Deere 7.6L 6-cyl dieselReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Transmission
15-speed full power shiftReference
TransmissionJohn Deere Power ShiftReference
Typefull power shiftReference
Gears15 forward and 4 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase271 cmReference
Weight6064 kgReference
Front tire9.50-20Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 9.50-20. Rear: 18.4-38Reference
Length403 cmReference
Width242 cmReference
Height (steering wheel)268 cmReference
Ground clearance88 cmReference
Clearance (front axle)104 cmReference
Clearance (rear axle)76 cmReference
Rear axle85 mmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
