Tractor · 1958Unverified

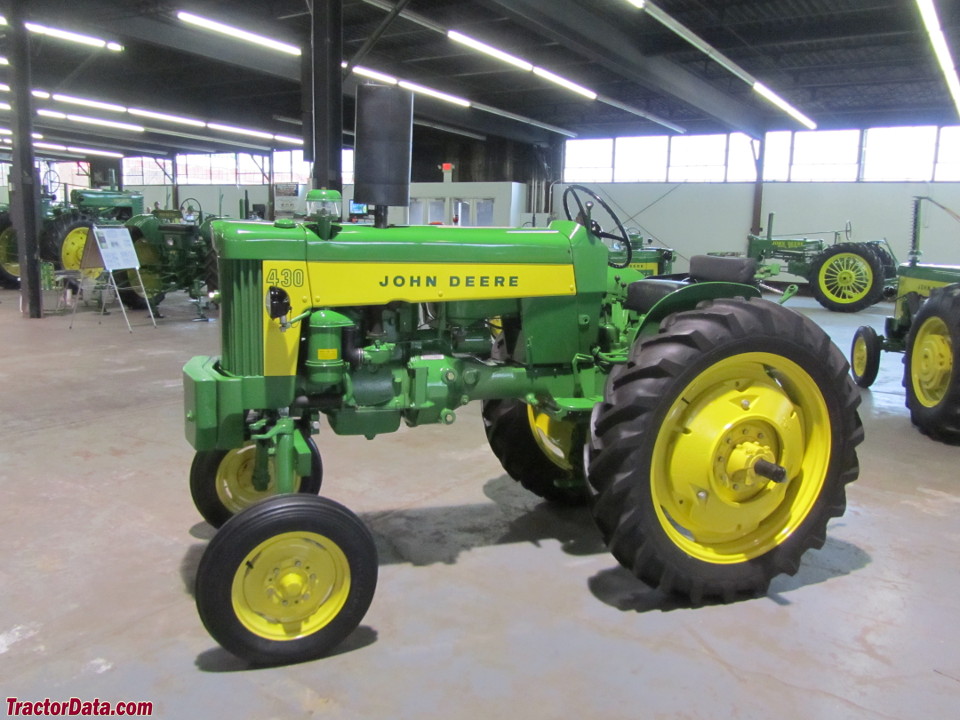

John Deere 430 Hi-Crop
John Deere 430 Hi-Crop — High-Clearance tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
3050 to 3400 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Dubuque, Iowa, USAReference
430H Total built212Reference
430V Total built63Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
430TtricycleReference
430SstandardReference
430UutilityReference
430Hhigh-cropReference
430VspecialReference
430Wrow-crop utilityReference
430CcrawlerReference
Engine
John Deere 1.9L 2-cyl gasolineReference
Fuel tank39.7 LReference
Aux. fuel3.4 LReference
Drawbar (claimed)20.2 kWReference
Belt (claimed)21.8 kWReference
John DeereReference
gasolineReference
2-cylinder 4-valveReference
liquid-cooledReference
The 430H was also available with an all-fuel engine or LP-gas engine. All 430V tractors were built with gasoline engines.Reference
Displacement1.9 LReference
Bore/Stroke108 x 102 mmReference
Air cleaneroil bathReference
Rated RPM1850Reference
Firing order1-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity9.5 LReference
Transmission
4-speed unsynchronized gearReference
5-speed unsynchronized gearReference
ManufacturerJohn DeereReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTOlive (optional on 5-speed)Reference
Rear PTO Type540Reference
Dimensions
430H Wheelbase205 cmReference
430V Wheelbase185 cmReference
Weight3050 to 3400 poundsReference
Front tire6.50-16Reference
430H Rear tire10-38Reference
430H Standard tires (ag)Front: 6.50-16. Rear: 10-38Reference
430V Standard tires (ag)Front: 5.00-15. Rear: 10-34Reference
430H Optional tires (ag)Front: 7.50-16. Rear: 11-38Reference
430V Optional tires (ag)Front: 6.00-16. Rear: 10-34Reference
430H Length335 cmReference
430V Length314 cmReference
430H Width182 cmReference
430V Width187 cmReference
430H Shipping weight1542 kgReference
430V Shipping weight1383 kgReference
430H Clearance (front axle)82 cmReference
430H Clearance (rear axle)87 cmReference
430H Front tread137 to 213 cmReference
430V Front tread116 to 167 cmReference
430H Rear tread137 to 213 cmReference
430V Rear tread116 to 203 cmReference
430 Hi-Crop Serial Number Location
Serial number plate on the left side of the tractor, on the clutch housing.Reference
430 Hi-Crop Serial Numbers
1958140071Reference
1959142671Reference
1960158632Reference
Final161048Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
John Deere 430 Hi-Crop Height
430H Hood172 cmReference
430V Hood160 cmReference
430H Exhaust218 cmReference
430V Exhaust206 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
