Tractor · 1998Unverified
John Deere 4300
John Deere 4300 — Compact Utility tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1360 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Differential wet disc brakesReference
Two-post fixed ROPS. Folding ROPS optional.Reference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine (gross)24.0 kWReference
Engine (net)22.5 kWReference
Yanmar 3TNE84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power (net)22.5 kWReference
Power (gross)24.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingair heaterReference
Compression18:1Reference
Rated RPM2700Reference
Idle RPM950-2810Reference
Operating RPM950-2700Reference
Starter volts12Reference
Starter power1.4 kWReference
Coolant capacity5.8 LReference
Oil capacity4.3 LReference
Oil change200 hReference
Transmission
9-speed partially synchronizedReference
hydrostaticReference
12-speed partially synchronizedReference
TransmissionSyncShiftReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Clutchwet discs, one clutch pack with nine four-inch discsReference
Oil capacity23.8 LReference
Three gears (1-3), plus reverse, in three ranges (A-C). Gears may be shifting on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity25.7 LReference
Hydrostatic transmission operated by two foot pedals and left-hand range shift lever. Tractor must be stopped to shift ranges. Push-button cruise control.Reference
TransmissionSyncReverserReference
Gears12 forward and reverseReference
Clutchwet discs, two clutch packs with nine four-inch discs eachReference
Four gears (1-4) in three ranges (A-C) with left-hand reverser on steering column. Gears may be shifting on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
Gear PTO (claimed)20.1 kWReference
Hydro PTO (claimed)19.0 kWReference
Gear Hydraulic system23.8 LReference
Hydro Hydraulic system25.7 LReference
Typeopen centerReference
Gear Capacity23.8 LReference
Hydro Capacity25.7 LReference
Pressure172.4 barReference
Valves2Reference
Pump flow31.4 lpmReference
Total flow50.3 lpmReference
Oil type[26o↔-40oC]Reference
122o↔0oF [50o↔-17oC]: JD Hy-GardReference
80o↔-40oF [26o↔-40oC]: JD Lo Vis Hy-GardReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)997 kgReference
Rear PTOindependentReference
Clutchmechanical wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2700Reference
Mid PTOoptionalReference
Mid PTO Type2100Reference
Engine RPM2100@2700Reference
Capacities
Fuel37.9 LReference
Front axle4.4 LReference
Dimensions
Wheelbase172 cmReference
Weight1360 kgReference
Front tire5-15Reference
2WD Rear tire11.2-24Reference
Weight474 kgReference
Weight688 kgReference
2WD Standard tires (ag)Front: 5-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
2WD Optional tires (ag)Front: 5-15. Rear: 12.4-24Reference
4WD Optional tires (ag)Front: 7-16. Rear: 12.4-24Reference
Lawn/turf front25-10.50LLx15Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf front7.00-14 (4WD)Reference
Lawn/turf rear41LLx18.00-16Reference
Lawn/turf rear11.2-24Reference
Lawn/turf rear41x14.00-20Reference
Industrial front25x8.50-14Reference
Industrial rear15-19.5Reference
Length297 cmReference
Width127 cmReference
Clearance (rear axle)34 cmReference
1360 kgReference
Max Drawbar254 kgReference
Max front axle1450 kgReference
Max rear axle1999 kgReference
John Deere 4300 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
4300 Serial Number Location
Serial number plate on front-right tractor frame, above front wheel.Reference
4300 Serial Numbers
1998130000Reference
1999230000Reference
2000330000Reference
2001430000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference

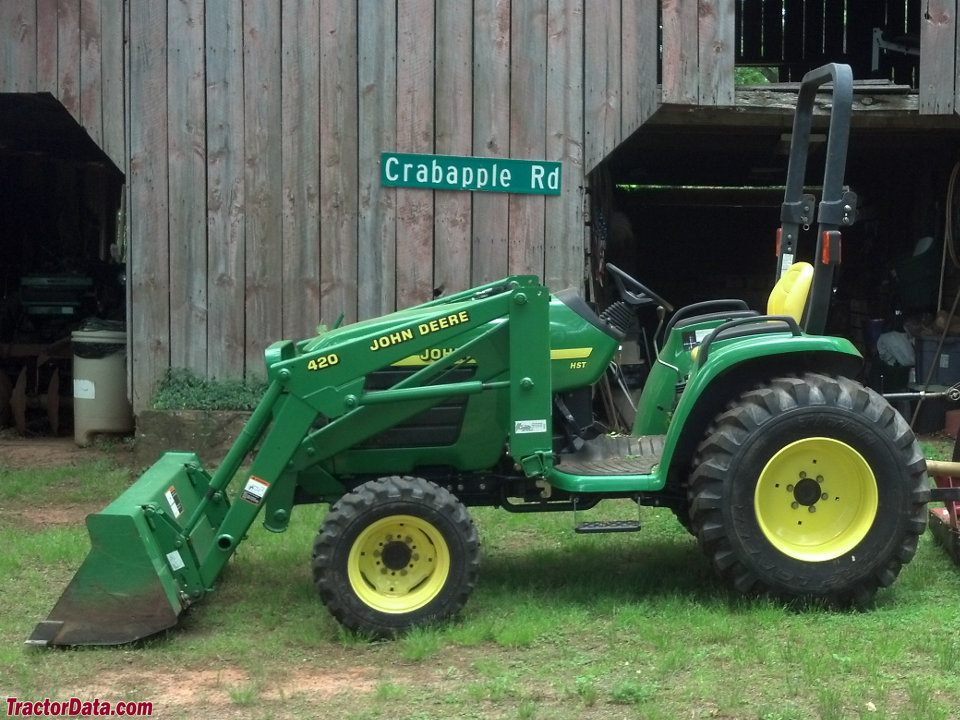

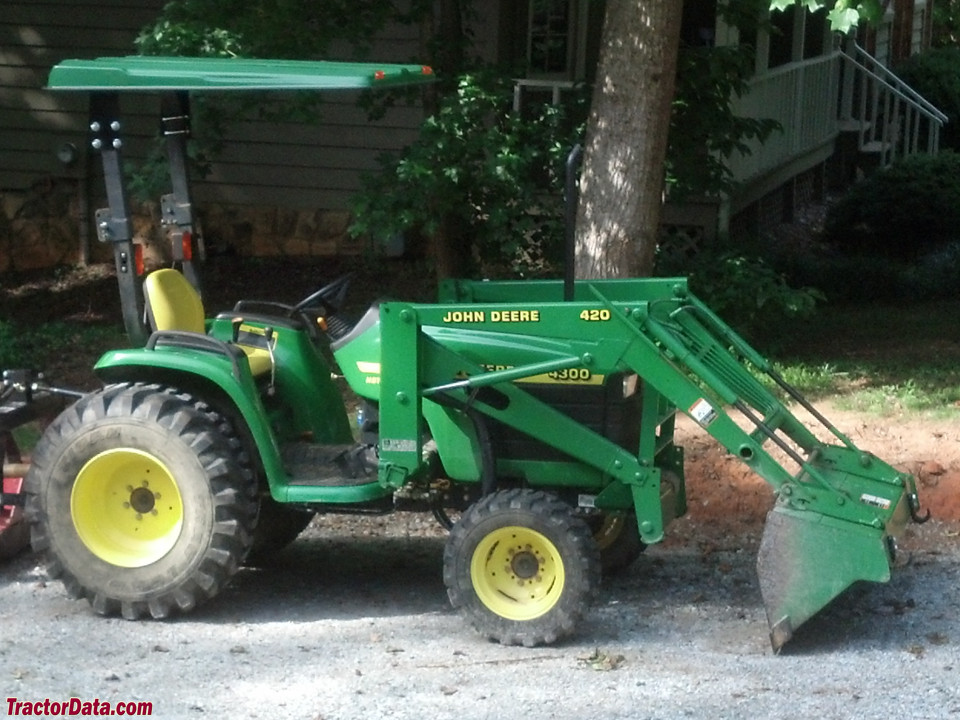

John Deere 420 loaderReference
John Deere 430 loaderReference
BackhoeReference
John Deere 47 Backhoe
Backhoe typeJohn Deere 47 BackhoeReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
John Deere 48 Backhoe
Backhoe typeJohn Deere 48 BackhoeReference
Transport height205 cmReference
2-Foot flat digging depth259 cmReference
Reach from pivot337 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Dipperstick force1104 kgReference
John Deere 4300 Height
Hood135 cmReference
ROPS213 cmReference
ROPS228 cmReference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
